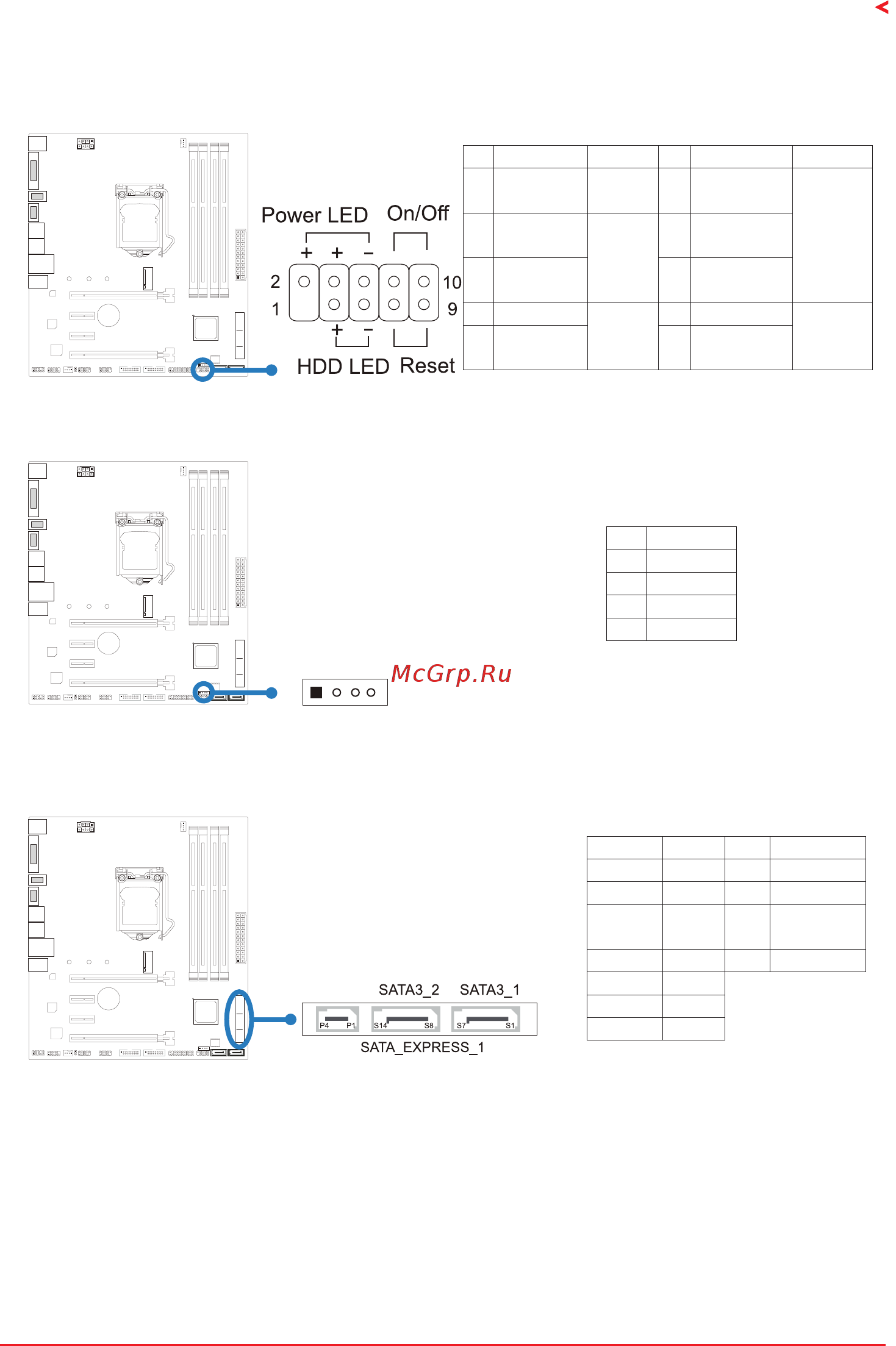

第二章: 硬件安装 | 15
Hi-Fi H170S3H / Hi-Fi B150S3H
PANEL1: 前置面板接头
此10针脚接口包含开机，重启，硬盘指示灯和电源指示灯。
针 定义 功能 针 定义 功能
1 N/A N/A 2
Power LED
(+)
电源指示
灯
3
HDD
LED(+)
硬盘指
示灯
4
Power LED
(+)
5 HDD LED(-) 6
Power LED
(-)
7 接地
重启按
钮
8 电源按钮
开机按钮
9
Reset
Control
10 接地
JSPKR1: 扬声器接口
1 4
针 定义
1 +5V
2 N/A
3 N/A
4 扬声器
SATA_Express_1: SATA Express 接口
每个SATA Express接口支持1个SATA Expres设备或者2个SATA设备。
针 定义 针 定义
S1/S8 接地 P1 Reserved
S2/S9 TX+ P2 PERST#
S3/S10 TX- P3 CLKREQ#/
DEVSLP
S4/S11 接地 P4 IFDet
S5/S12 RX-
S6/S13 RX+
S7/S14 接地
