第二章: 硬件安装 | 11
Hi-Fi H170S3H / Hi-Fi B150S3H

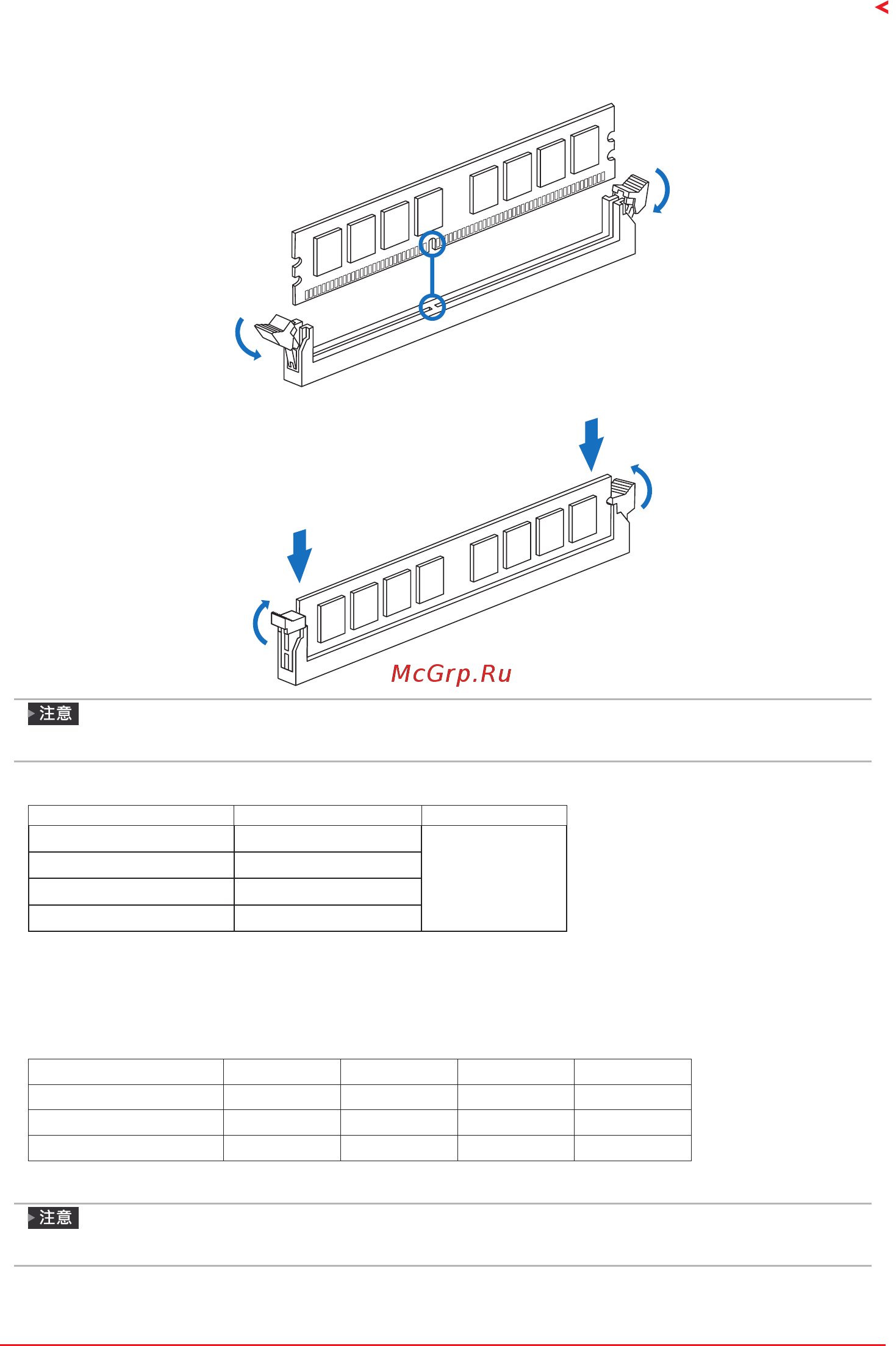

步骤1: 向外推开固定夹，打开DIMM插槽。将DIMM按顺序放在插槽上， DIMM上的切
口须与插槽凹口匹配。
步骤2: 垂直插入DIMM并固定好，直到固定夹跳回原位，DIMM就位。
»
如果DIMM未顺利插入，请勿强行按压。将DIMM拔出，再重插一次。
内存容量
DIMM插槽位置 DDR3L模组 最大内存容量
DDR3_A1 4GB/8GB
32GB
DDR3_A2 4GB/8GB
DDR3_B1 4GB/8GB
DDR3_B2 4GB/8GB
双通道内存安装
为激活主板双通道功能，使用内存模组必须符合以下要求：
成对安装相同密度的内存模组。
如下表所示
双通道状态 DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O
(“O”表示内存已安装，“X ”表示内存未安装。)
»
当安装多个内存模块時，我们建议使用相同品牌和容量的内存於主板上。
