第三章: UEFI BIOS和软件 | 25
Hi-Fi H170S3H / Hi-Fi B150S3H
智能耳放增效Smart EAR
Hi-Fi音频要求:
1. 耳机或头戴式耳机。
2. Windows 7/ 8.1(64bit)/ 10(64bit)操作系统。
安装指南:
1. 从驱动DVD上安装智能耳放实用工具。
2. 将耳机或头戴式耳机连接至后部的音频输出接口。
»
如果您想使用AC’97前置音频输出线，请禁用“前置面板插孔检测功能”。此功能在系统音频工
具 中可 见。

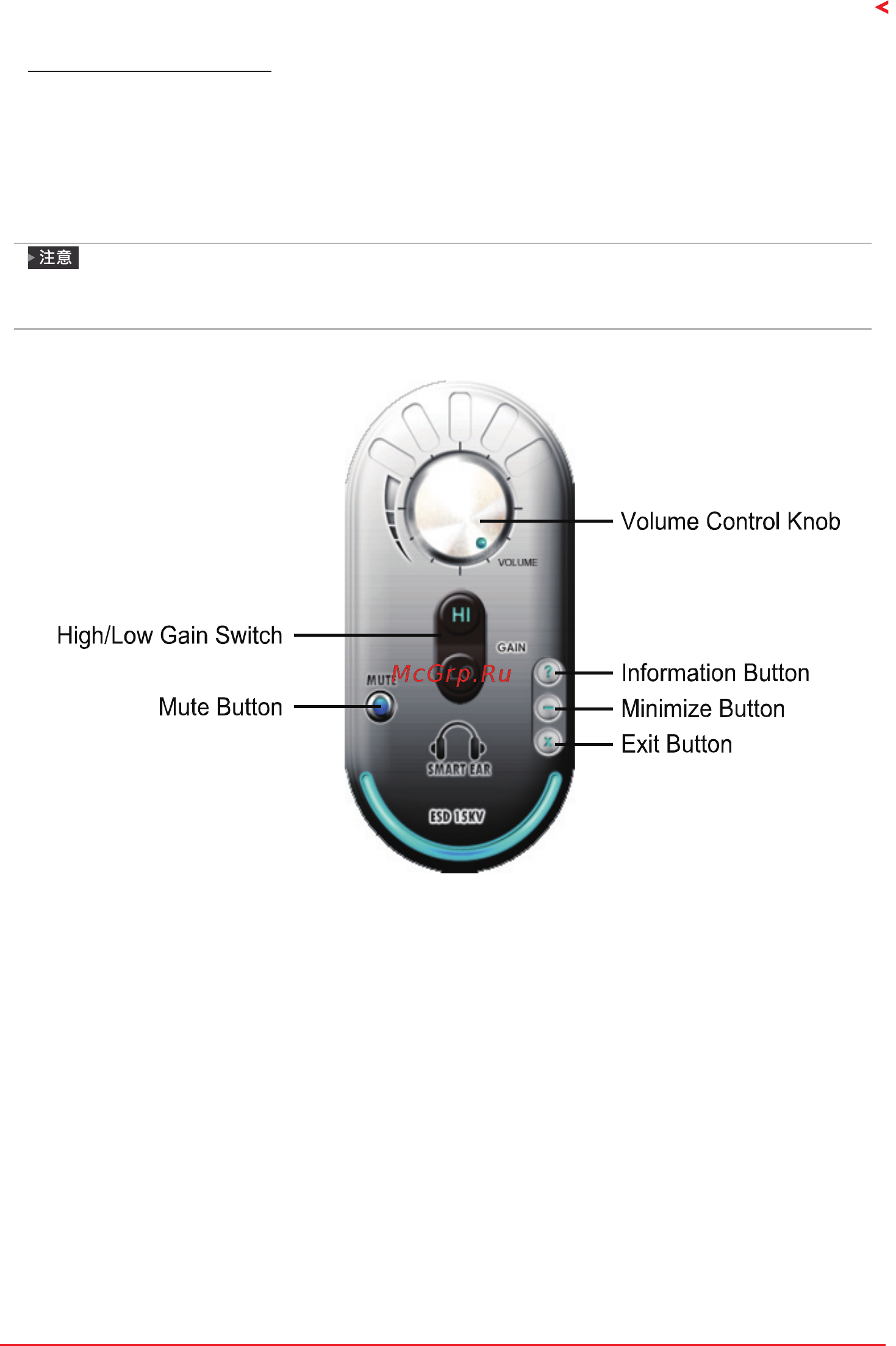

智能耳放增效工具:
高低增益开关: 使用低阻抗耳机时调至低（LO），使用高阻抗耳机时调至高
•
（HI）。
静音按钮: 可切换到静音状态。
•
音量调节旋钮: 可调节音量大小。
•
信息按钮: 获取应用信息按钮。
•
最小化按钮: 将此应用窗口最小化至任务栏。
•
退出按钮: 退出应用
•
