4.4.5.2 Output Rate Limit Port Configuration

Use the rate limit configuration pages to apply output rate limiting.

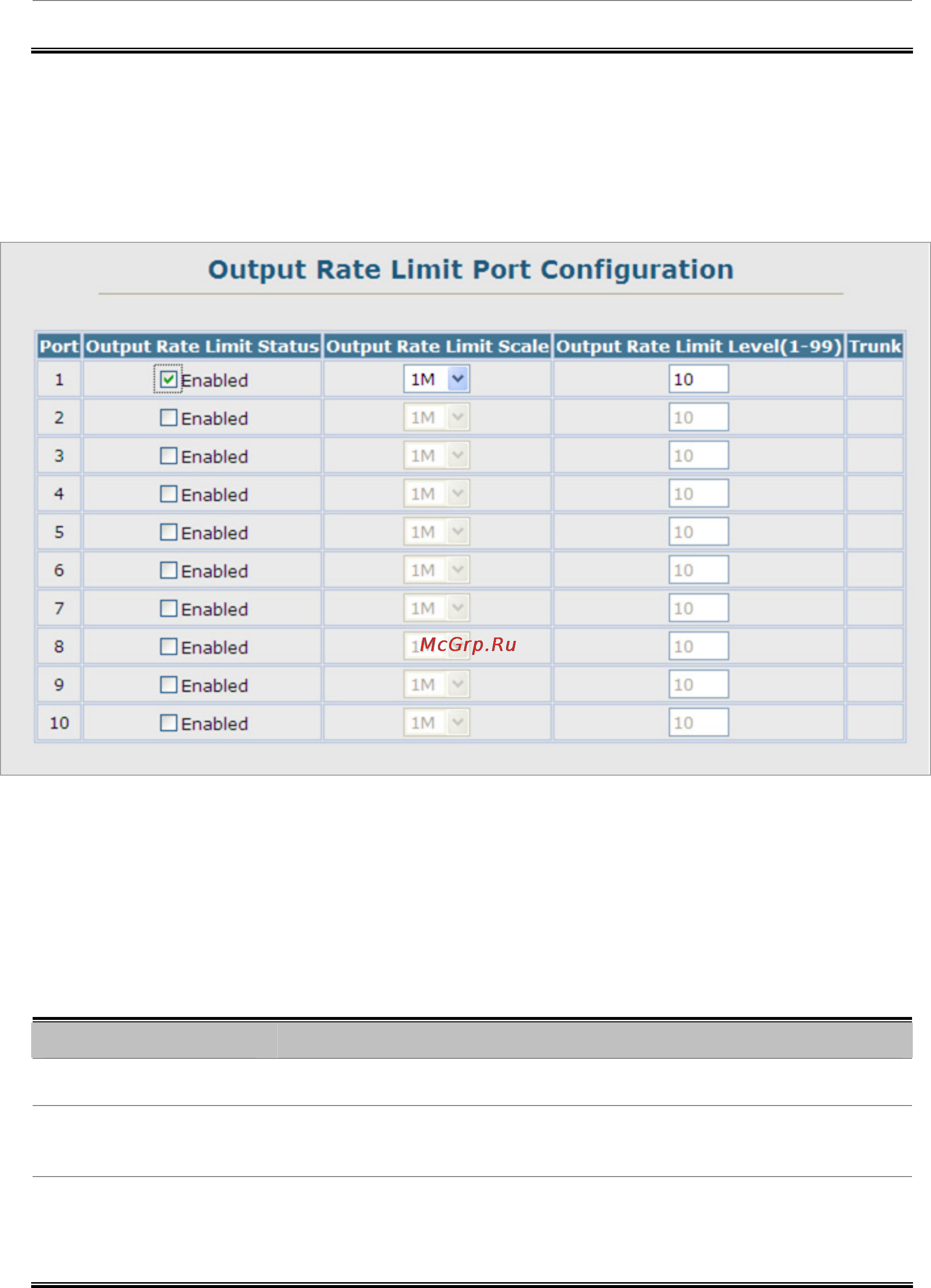

Figure 4-4-9 Output Rate Limit Port Configuration page screenshot

3. Click Port, Rate Limit, Output Port Configuration.

4. Enable the Rate Limit Status for the required interfaces, set the Rate Limit Scale and Rate Limit Level, and click Apply.

The page includes the following fields:

Object Description

• Port/Trunk

Displays the port/trunk number

• Output Rate Limit

Status

Enables or disables the rate limit.

(Default: Enabled)

• Output Rate Limit

Scale/Level

Multiplied by one another, the scale and level set the rate limit.

For example, to limit port traffic to 500K bytes per second, choose 100K under

Rate Limit Scale and 5 under Rate Limit Level.
