Planet GSW-2404SF [15/83] Login the switch

Using this management method:

The GSW-1602SF/GSW-2404SF/GSW-2416SF must have an Internet Protocol (IP) address accessible for the remote

host. The screen in Figure 3-1 appears.

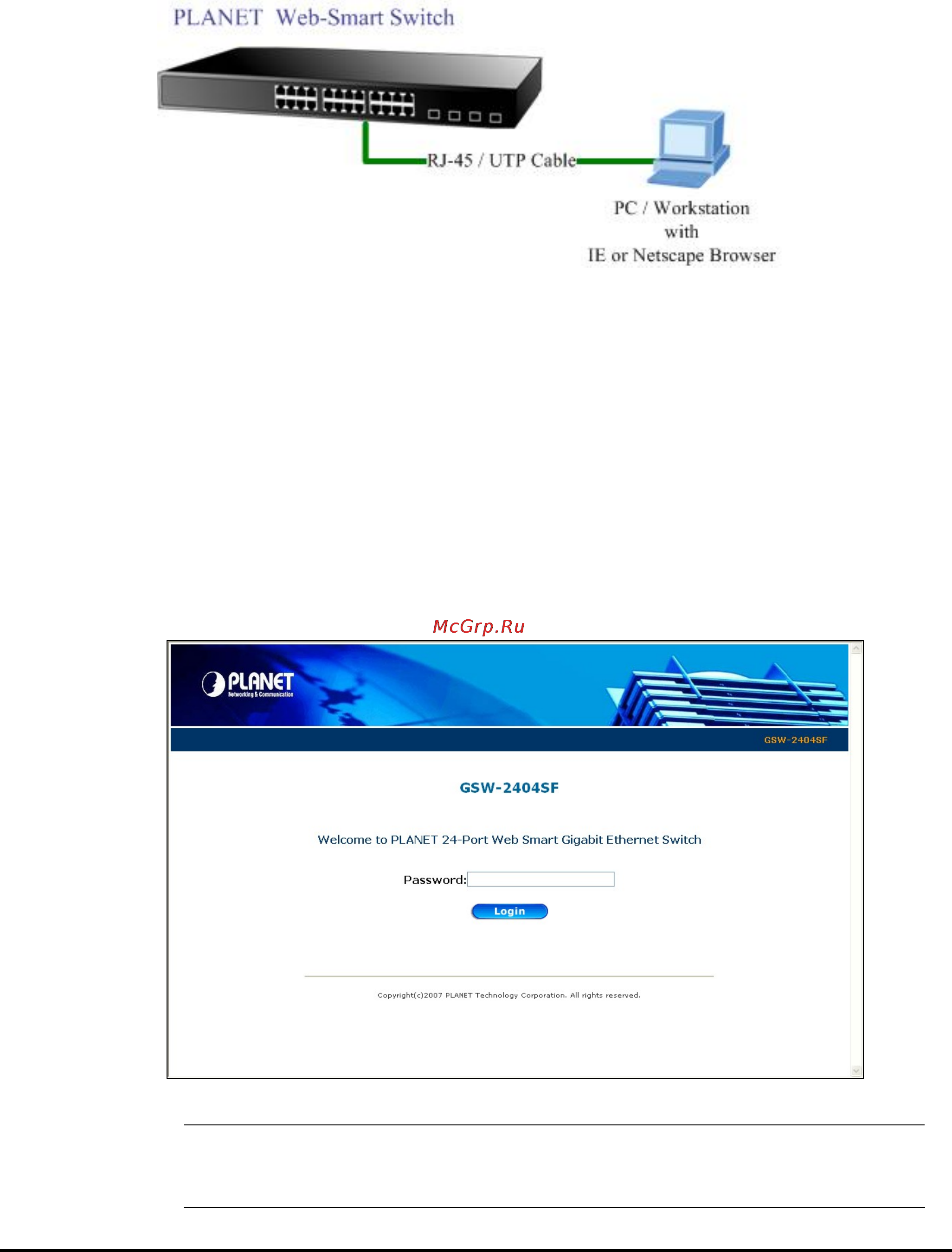

Figure 3-1 Web Management via ethernet

3.2.2 Login the Switch

Before you start configure the GSW-1602SF/GSW-2404SF/GSW-2416SF, please note the

GSW-1602SF/GSW-2404SF/GSW-2416SF is configured through an Ethernet connection, make sure the manager PC

must be set on same the IP subnet address. For example, the default IP address of the

GSW-1602SF/GSW-2404SF/GSW-2416SF is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where

x is a number between 2 and 254, except 100), and the default subnet mask is 255.255.255.0. Use Internet Explorer 5.0 or

above Web browser. Enter IP address http://192.168.0.100 (the factory-default IP address) to access the Web interface.

When the following login screen appears, please enter the default password "admin" and press Login to enter the main

screen of GSW-1602SF/GSW-2404SF/GSW-2416SF. The login screen in Figure 3-2 appears.

Figure 3-2 Login screen

#Note:

1. For security reason, please change and memorize the new password after this first setup.

2. Only accept command in lowercase letter under Web interface.

-11-
