The MAC Address Table includes the following fields: Table 4-28 Description of the Static MAC Address.
• Item
Description
• VID
The VLAN ID attached to the MAC Address
• Ports
Specifies the port numbers for which the table is queried.
• Type
Static - Static addresses are manually configured. Packets received with the
destinated MAC address mathch the port static MAC setting will be forward to the
specify port.
• MAC-Address
The MAC address listed in the current static address list.
Table 4-28 Description of the Static MAC Address
4.14 Tools
4.14.1 Reboot
The Reboot page enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user has
to re-login the WEB interface about 20 seconds later. The Reboot screen in Figure 4-51 appears.

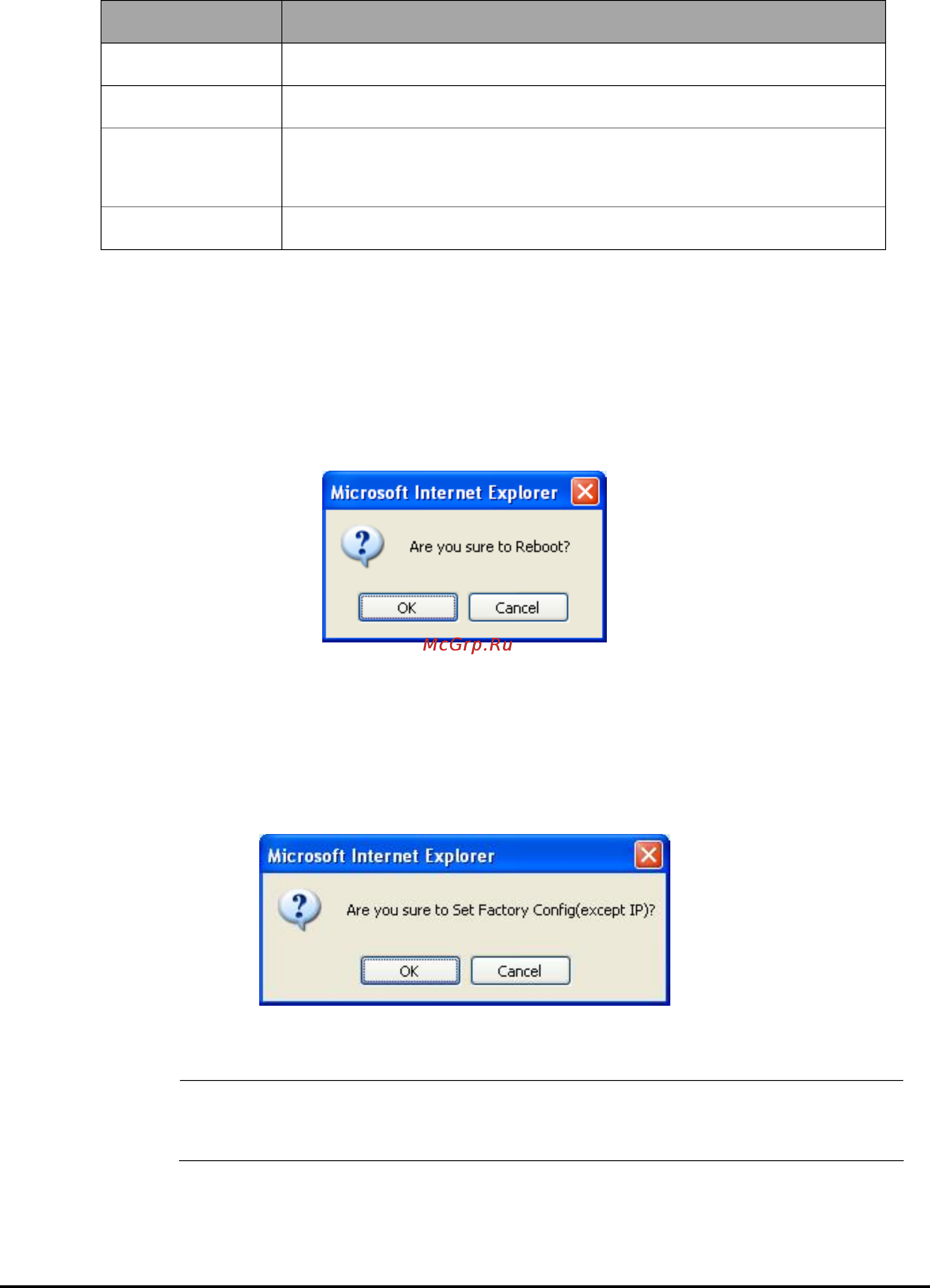

Figure 4-51 Reboot screen
4.14.2 Factory Reset
The Factory Reset button can reset the GSW-1602SF/GSW-2404SF/GSW-2416SF back to the factory default mode. Be
aware that the entire configuration will be reset; expect the IP address of the GSW-1602SF/GSW-2404SF/GSW-2416SF.
Once the Factory Reset item is pressed, the screen in Figure 4-52 appears.
Figure 4-52 Factory Reset screen
"Note:
To reset the IP address to the default IP Address “192.168.0.100”. Press the hardware reset button
at the front panel about 5 seconds. After the device be rebooted. You can login the management
WEB interface within the same subnet of 192.168.0.xx.
-61-
