4.3 Port Configuration

This function allows displaying each port’s status. The Link Status in the screen displays the current connection speed and

duplex mode; else this function will show down when the port is disconnected. Press the “Refresh” button to renew the

screen. The screen in Figure 4-4 appears.

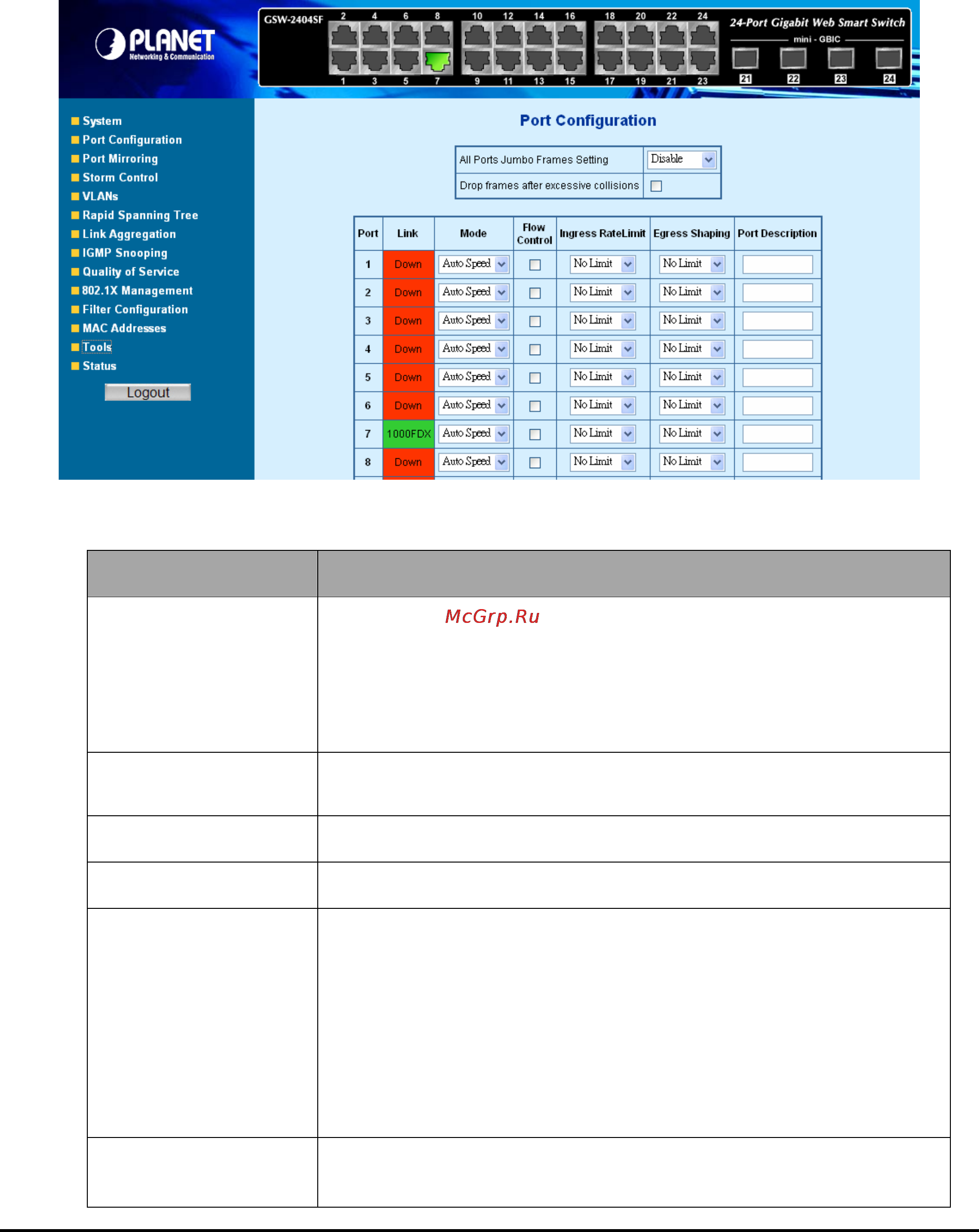

Figure 4-4 Port Configuration screen

The page includes the following configurable data; see the table 4-3 description of the Port Configuration.

• Item

Description

• All Ports Jumbo

Frames Setting

The maximum Ethernet frame size the interface supports or is configured,

including Ethernet header, CRC, and payload. Draw the menu bar to select the

mode.

• Disable - The default maximum frame size is 1518

• 4096 Kbytes – Set the maximum frame size to 4096 Bytes

• 9600 Kbytes - Set the maximum frame size to 9600 Bytes

• Drop frames after

excessive collisions

Enable or Disable the device to drop frames once the excessive collisions be

detected.

• Port

Indicate port 1 to port 24.

• Link

Indicate current link status and link speed duplex mode of each port.

• Mode

Allow configuring the port speed and operation mode. Draw the menu bar to

select the mode.

• Auto Speed - Setup Auto negotiation.

• 10 half - Force sets 10Mbps/Half-Duplex mode.

• 10 Full - Force sets 10Mbps/Full-Duplex mode.

• 100 half - Force sets 100Mbps/Half-Duplex mode.

• 100 full - Force sets 100Mbps/Full-Duplex mode.

• 1000 full - Force sets 10000Mbps/Full-Duplex mode.

• Disable - Shutdown the port manually.

• Flow Control

Allow Enable or Disable flow control for selected port.

• Enable – 802.3x flow control is enabled on Full-Duplex mode or

-16-
