Logout

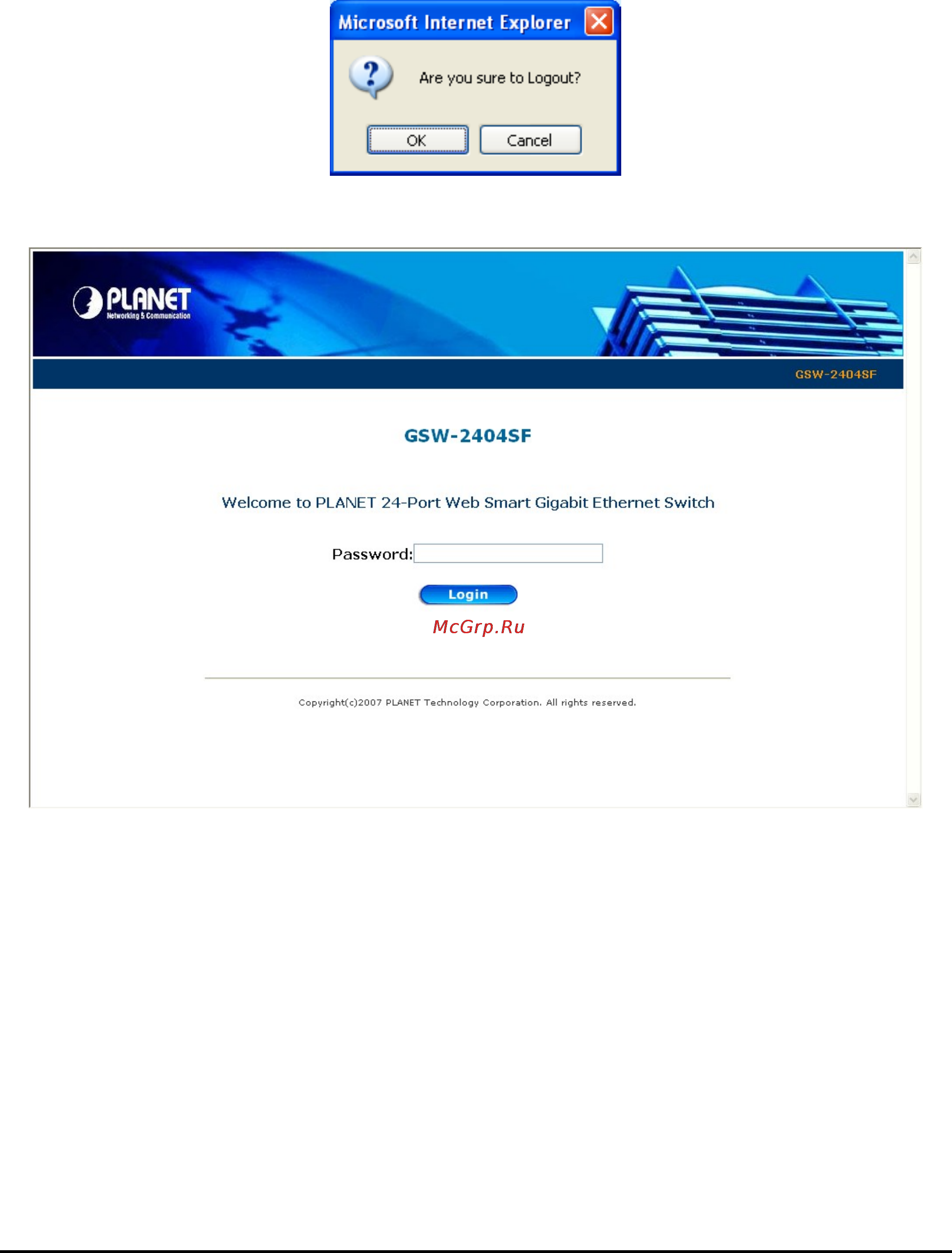

Press this function; the web interface will go back to login screen. The screen in Figure 4-65 & 4-66 appears.
Figure 4-65 Logout screen
Figure 4-66 Login screen
-73-
