1. Specify Port-7 on the device to connect to the server.

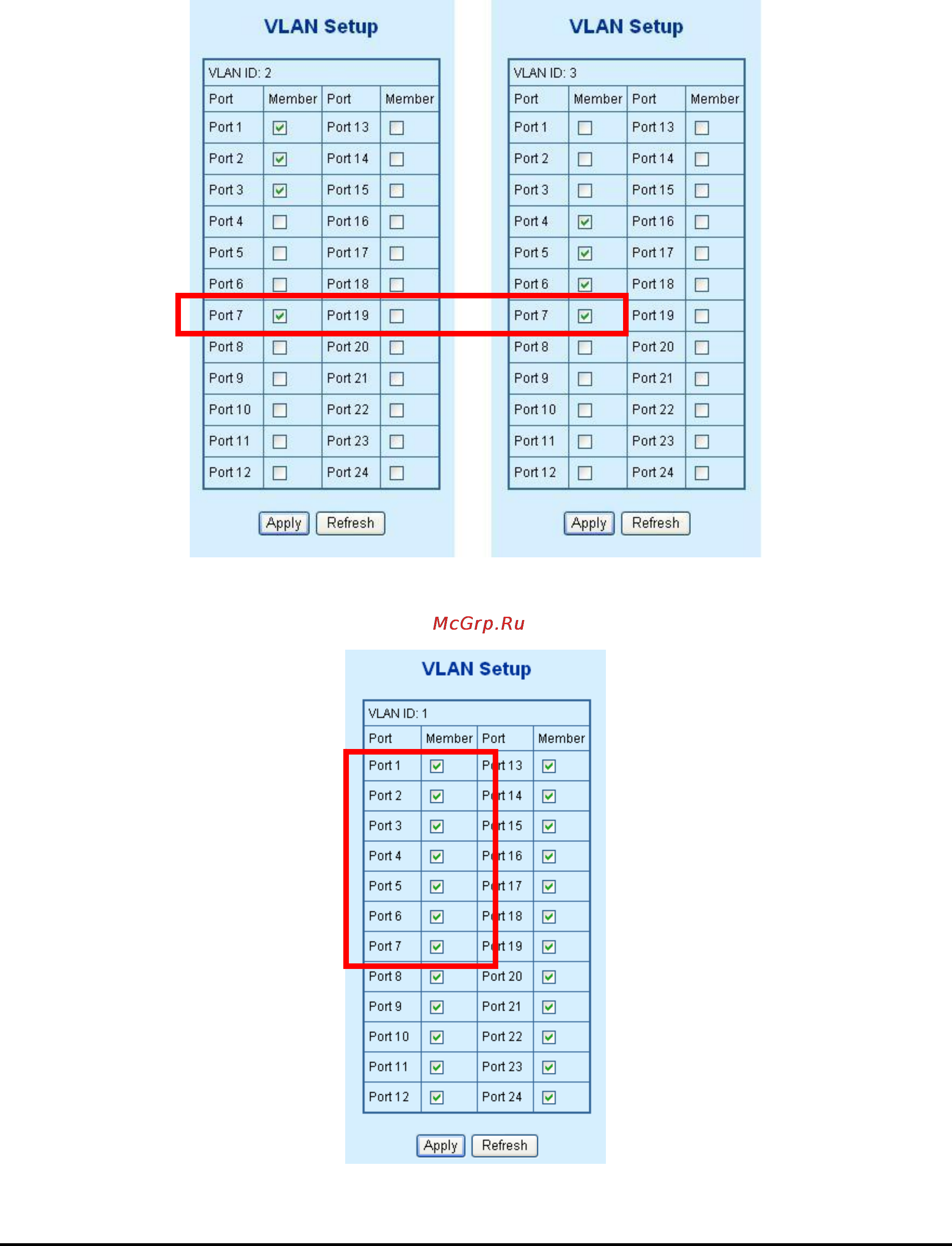

2. Assign Port-7 to both VLAN 2 and VLAN 3 at the VLAN Member configuration page. The screen in Figure 4-18
appears.
Figure 4-18 VLAN overlap port setting
3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.
Figure 4-19 VLAN 1 – The public area member assign
