it will be grayed out. Once this button is pressed, the action is immediate. It is not
required to press the Submit button for the action to occur.
• Force Reinitialize
This button begins the re-initialization sequence on the selected port. This button
is only selectable if the control mode is 'auto'. If the button is not selectable, it will
be grayed out. Once this button is pressed, the action is immediate. It is not
required to press the Submit button for the action to occur.
• Statistics
This button redirect to the “802.1X Statistics” page on the selected port.
• Re-authenticate
All
This button begins the re-authentication sequence on the all ports.
• Force Reinitialize
All
This button begins the re-initialization sequence on all ports.
Table 4-23 Description of the Port Access Control
At the bottom of this page, click “Parameter” button will redirect to the “802.1X parameter” configure page. The screen
in Figure 4-47 appears.

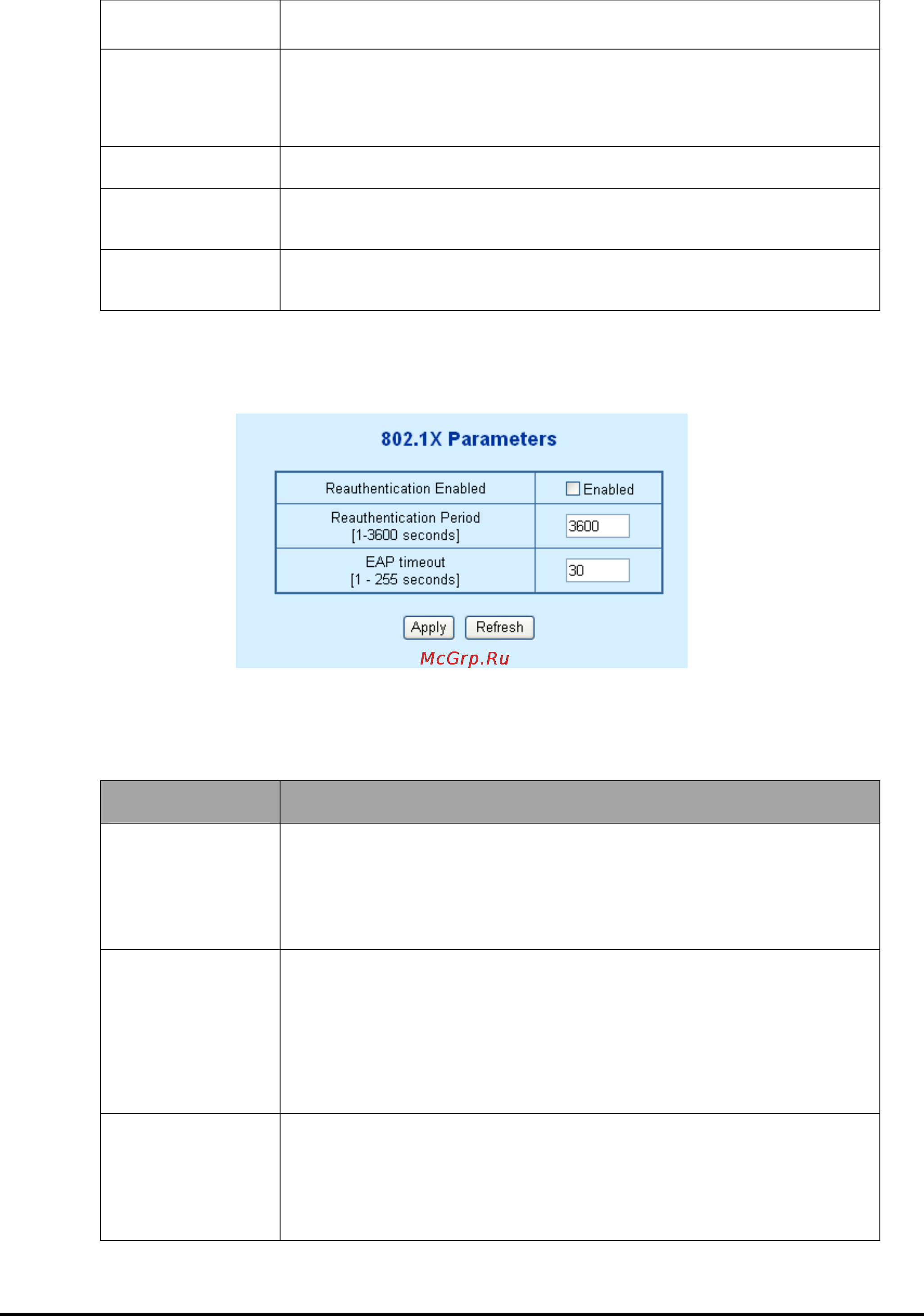

Figure 4-47 802.1X Parameter configuration screen
The 802.1X Parameters table includes the following fields: Table 4-24 Description of the 802.1X Parameter.
• Item
Description
• Reauthentication
Enabled
This select field allows the user to enable or disable reauthentication of the
supplicant for the specified port. If “Enabled” be checked, reauthentication will
occur. Otherwise, reauthentication will not be allowed. Changing the selection will
not change the configuration until the Apply button is pressed.
The default value is not “Enabled”
• Reauthentication
Period
[1-3600 seconds]
This input field allows the user to enter the reauthentication period for the
selected port. The reauthentication period is the value, in seconds, of the timer
used by the authenticator state machine on this port to determine when
reauthentication of the supplicant takes place. The reauthentication period must
be a value in the range of 1 and 65535. Changing the value will not change the
configuration until the Apply button is pressed.
The default value is 3600.
• EAP Timeout
[1-255 seconds]
This input field allows the user to enter the EAP timeout for the selected port. The
EAP timeout is the value, in seconds, of the timer used by the authenticator state
machine on this port to timeout the supplicant. The EAP timeout must be a value
in the range of 1 and 255.
The default value is 30.
Table 4-24 Description of the 802.1X Parameter
-57-
