User’s Manual of GSD-800S / GSD-802S / GSD-802PS
2.2.2 Rack Mounting
To install the switch in a 19-inch standard rack, please follows the instructions described below.
#
Notice:
Optional rack-ear for 10-inch cabinet rack mounting (RKE-10A) and 19-inch cabinet rack mounting
(RKE-10B) is available upon request.
Step1: Place the Gigabit Ethernet Switch on a hard flat surface, with the front panel positioned towards the front side.
Step2: Attach the rack-mount bracket to each side of the Gigabit Ethernet Switch, with supplied screws attached to the
package. Figure 2-8 shows how to attach brackets to one side of the Gigabit Ethernet Switch.

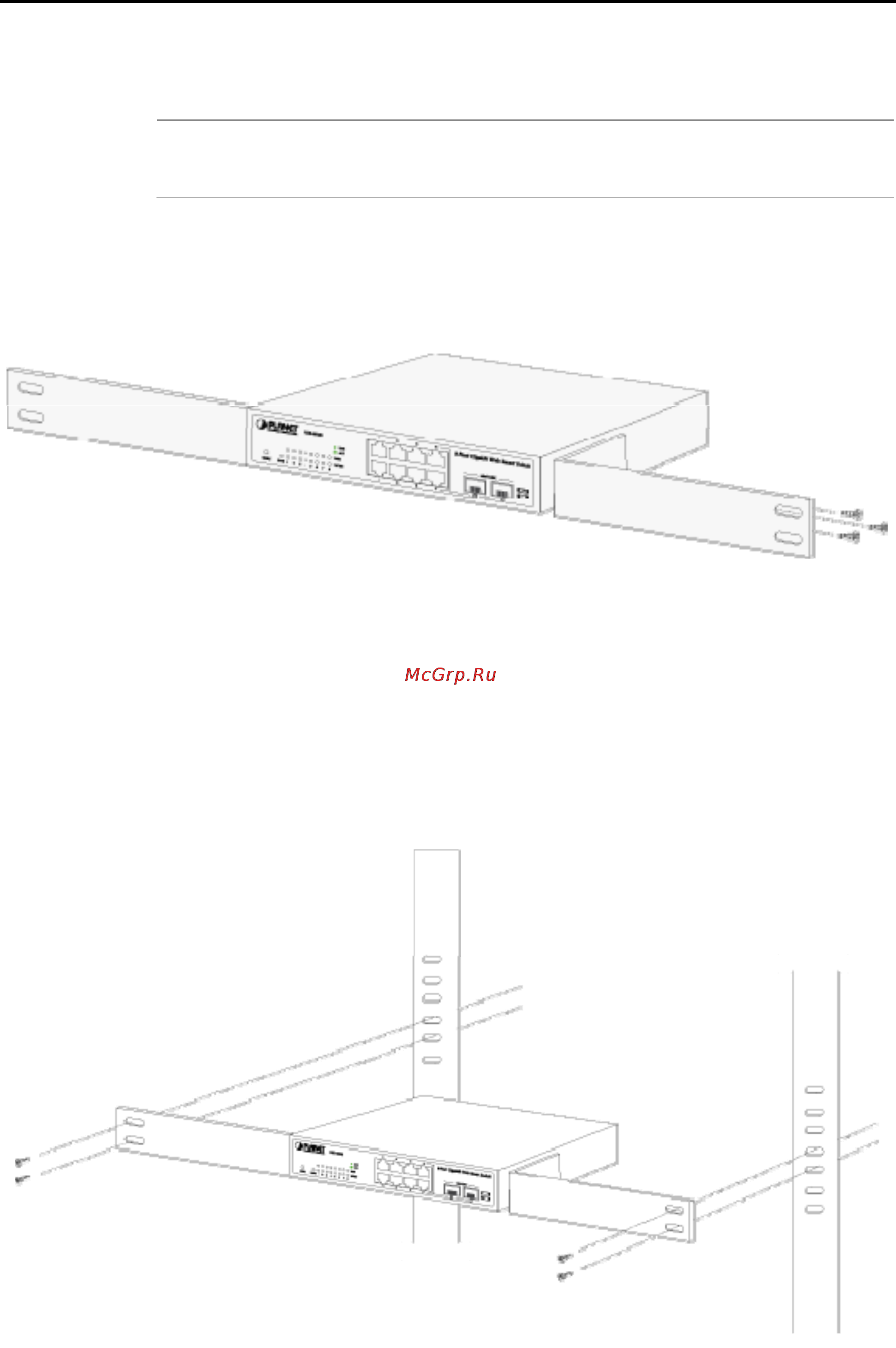

Figure 2-8 Attach brackets to the Gigabit Ethernet Switch.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect
screws would invalidate the warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Gigabit Ethernet Switch, use suitable screws to securely attach the brackets
to the rack, as shown in Figure 2-9.
