User’s Manual of GSD-800S / GSD-802S / GSD-802PS
4.6.1 RSTP System Configuration
g the spanning tree parameters.
The “RSTP System Configuration” table allows configurin

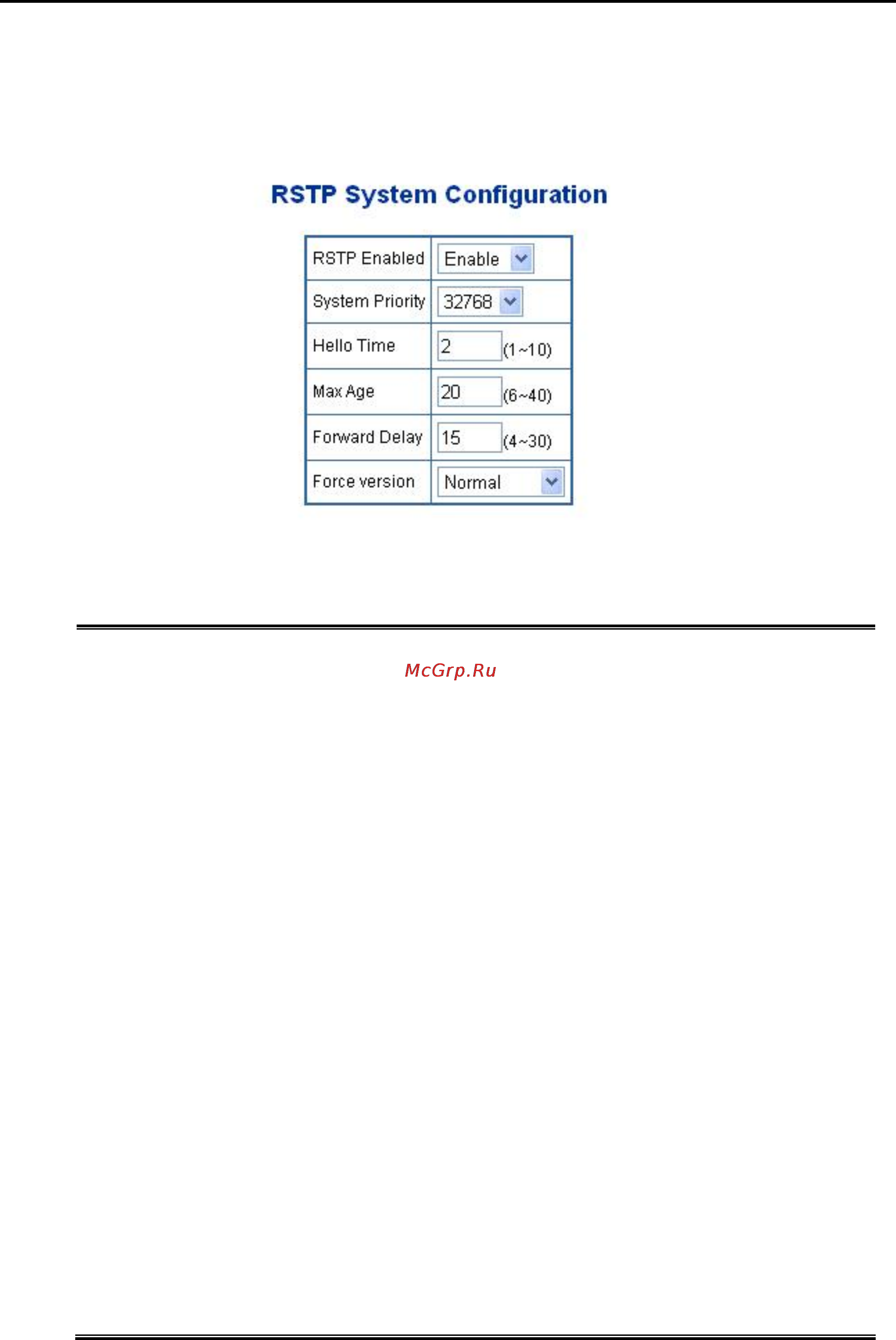

Figure 4-24 RSTP System Configuration
The page includes the following fields:
System Priority
Specifies the bridge priority value. When switches or bridges are running STP,
each is assigned a priority. After exchanging BPDUs, the switch with the lowest
priority value becomes the Root Bridge. The bridge priority value is provided in
increments of 4096 (4K increments). For example, 0, 4096, 8192, etc.
The default value is 32768.
Hello Time
me. The Hello Time indicates the amount of time in
nds.
Max Age
Age Time. The Maximum Age Time indicates the
s 20 seconds.
Forward Delay
e. The Forward Delay Time indicates the
nds.
Force version
l Version parameter for the switch. The options are
2.1w): Detects and uses of network topologies that
Specifies the device Hello Ti
seconds a root bridge waits between configuration messages.
Value Range: 1-10.
The default is 2 seco
Specifies the device Maximum
amount of time in seconds a bridge waits before sending configuration messages.
Value Range: 6-40.
The default max age i
Specifies the device forward delay tim
amount of time in seconds a bridge remains in a listening and learning state
before forwarding packets.
Value Range : 4-30.
The default is 15 seco
Specifies the Force Protoco
Normal and Compatible
Normal – Rapid STP (80
provide faster spanning tree convergence, without creating forwarding loops.
Compatible – Classis STP (802.1d): Provides a single path between end
stations, avoiding and eliminating loops.
