User’s Manual of GSD-800S / GSD-802S / GSD-802PS
00. - Gigabit Ethernet - 200
4.6.3 RSTP Status
he current STP bridge , roor bridge and per port stp status.
erview” and “RSTP Port Status” screen is displayed as in Figure 4-26.
The RSTP Status page display t
To access RSTP Status screen and perform the following procedure:
1. Click Status -> RSTP Status
2. The “RSTP VLAN Bridge Ov

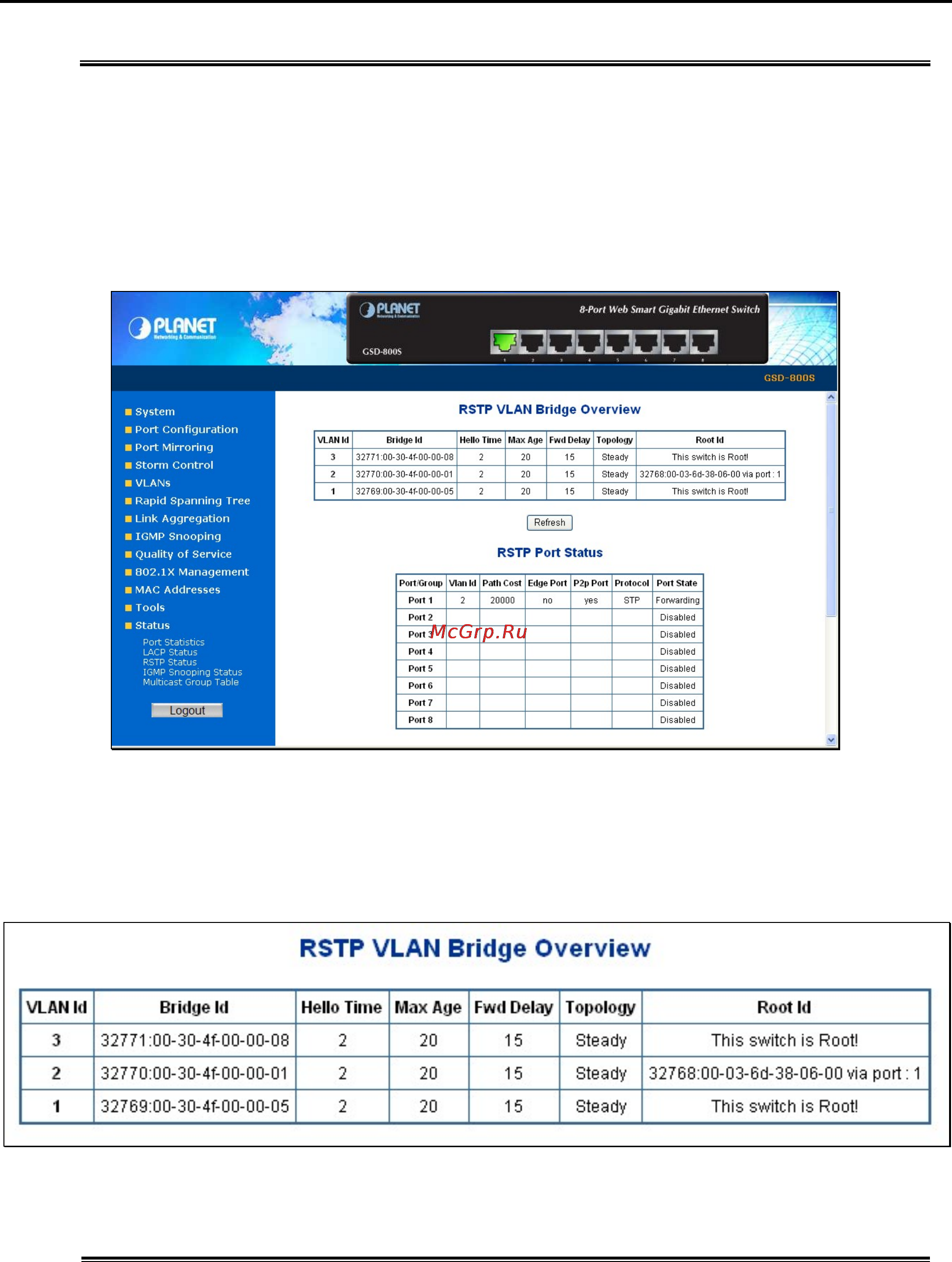

Figure 4-26 RSTP Status screen
RSTP VLAN Bridge Overview
ws in the Bridge overview table. The screen in Figure 4-27 appears. The information of the RSTP Root sho
Figure 4-27 RSTP Status screen
The page includes the following fields:
tifies VLANs associated with the Rapid Spanning Tree.
• VLAN Id
Iden
• Bridge IDd
ration BPDUs.
Identifies the Bridge priority and MAC address.
• Hello Time
Minimum time between transmissions of Configu
