User’s Manual of GSD-800S / GSD-802S / GSD-802PS
2. INSTALLATION
This section describes the functionalities of Gigabit Ethernet Switch’s components and guides how to install it on the
desktop or shelf. Basic knowledge of networking is assumed. Please read this chapter completely before continuing.
2.1 Product Description
The PLANET Gigabit Ethernet Switch is an 8-Port 10/100/1000Mbps Web Smart Gigabit Ethernet Switch with
non-blocking wire-speed performance. With 16Gbps internal switching fabric, the Gigabit Ethernet Switch can handle
extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers. The
Gigabit Ethernet Switch could recognize up to 8K MAC Address table. The Gigabit Ethernet Switch offers wire-speed
packet transfer performance without risk of packet loss. The high data throughput, it can provide the most convenient for
user to upgrade their network to Gigabit environment.
2.1.1 Product Overview

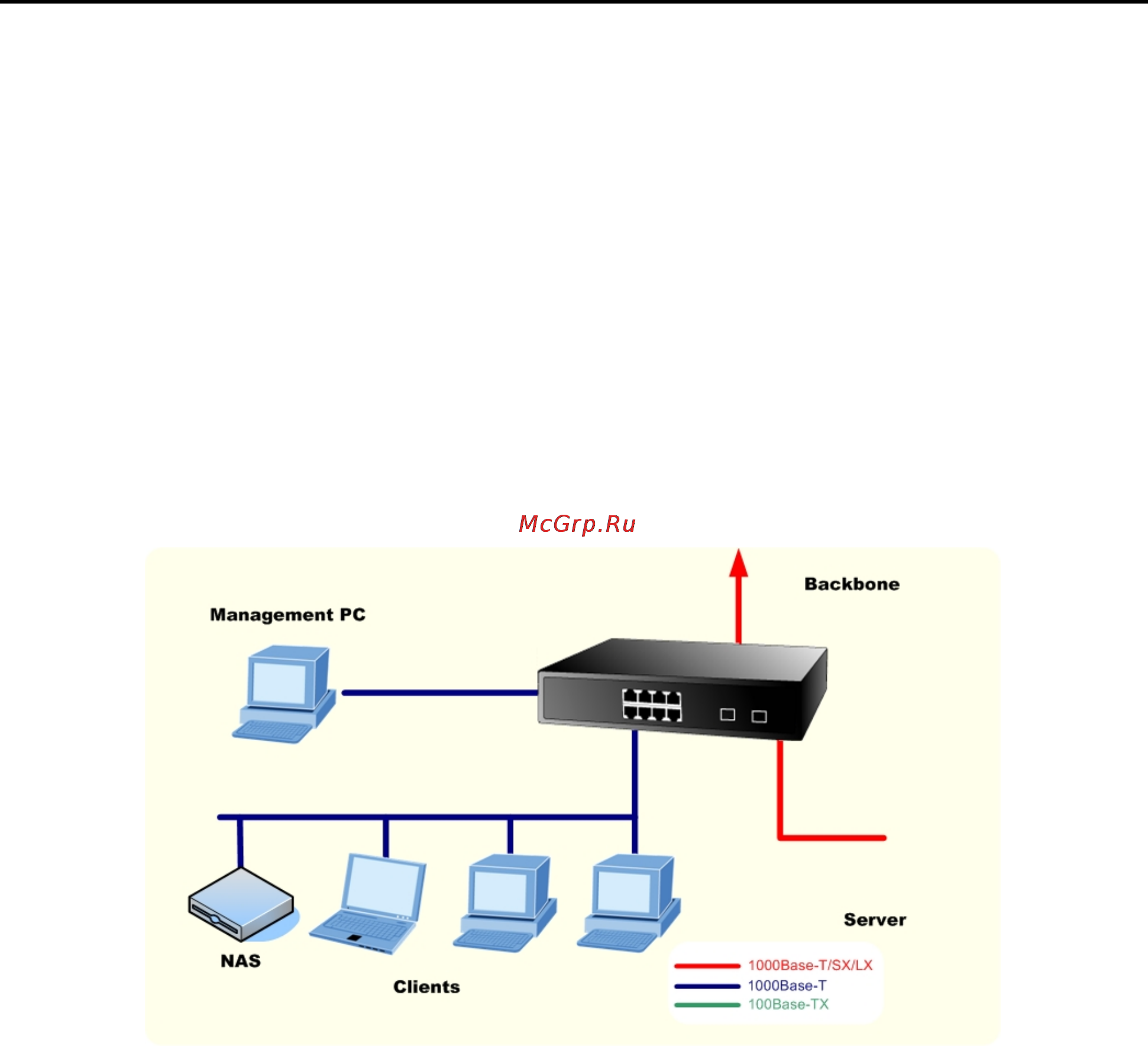

PLANET Gigabit Ethernet Switch is a Web Smart Gigabit Ethernet Switch with 8 RJ-45 10/100/1000Mbps ports for
high-speed network connectivity. The Gigabit Ethernet Switch can also automatically identify and determine the correct
transmission speed and half/full duplex mode of the attached devices with its 8 ports. The Gigabit port can handle large
amounts of data transmission in a secure topology linking to a backbone or high-power servers.
The Gigabit Ethernet Switch also supports store-and-forward forwarding scheme to ensure low latency and high data
integrity, eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address
recognition algorithm, the Gigabit Ethernet Switch could recognize up to 8K different MAC address and enables filtering
and forwarding at full wire speed.
