User’s Manual of GSD-800S / GSD-802S / GSD-802PS

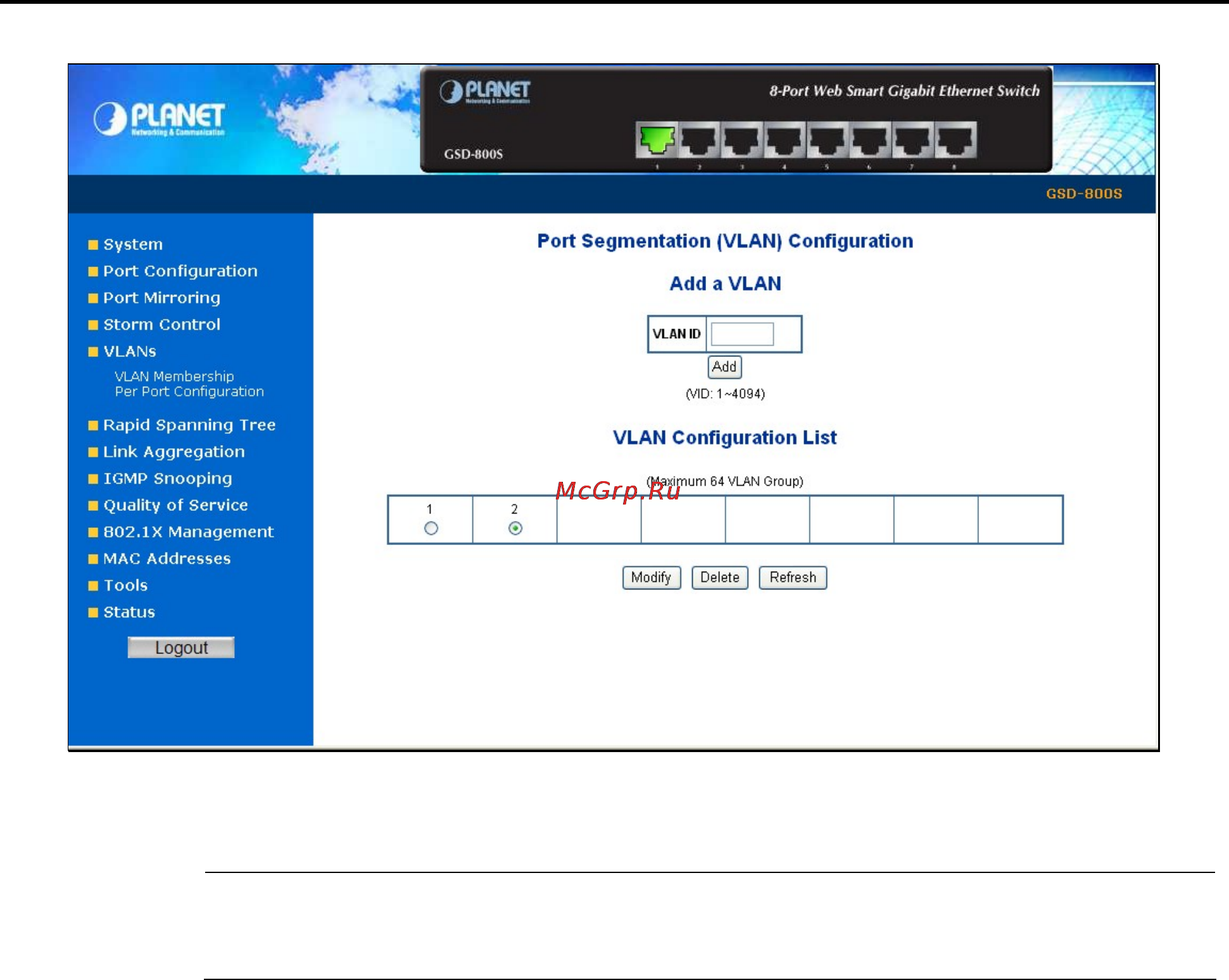

Figure 4-9 VLAN Group – member modify and delete VLAN Group screen
#
Notice:
Once the VLAN Group be deleted, the Ports with the PVID set to this VLAN Group have to
re-configure the PVID. Or the PVID will be set to “None”
