Planet GSD-805 [11/20] Product overview

supported routers and Servers to directly connect to this device

for fast, reliable data transfer.

2.1.1 Product Overview

The PLANET Gigabit Ethernet Switch with 8 RJ-45

10/100/1000Mbps ports for high-speed network connectivity.

The Gigabit Ethernet Switch can also automatically identify and

determine the correct transmission speed and half/full duplex

mode of the attached devices with its 8 ports. The Gigabit port

with 9K jumbo frame feature supported, can handle extremely

large amounts of data transmission in a secure topology linking

to a backbone or high-power servers.

The Gigabit Ethernet Switch also supports Store-and-Forward

forwarding scheme to ensure low latency and high data integrity,

eliminates unnecessary trafc and relieves congestion on critical

network paths. With an intelligent address recognition algorithm,

the Gigabit Ethernet Switch could recognize up to 4K different

MAC address and enables ltering and forwarding at full wire

speed.

2.1.2 Switch Front Panel

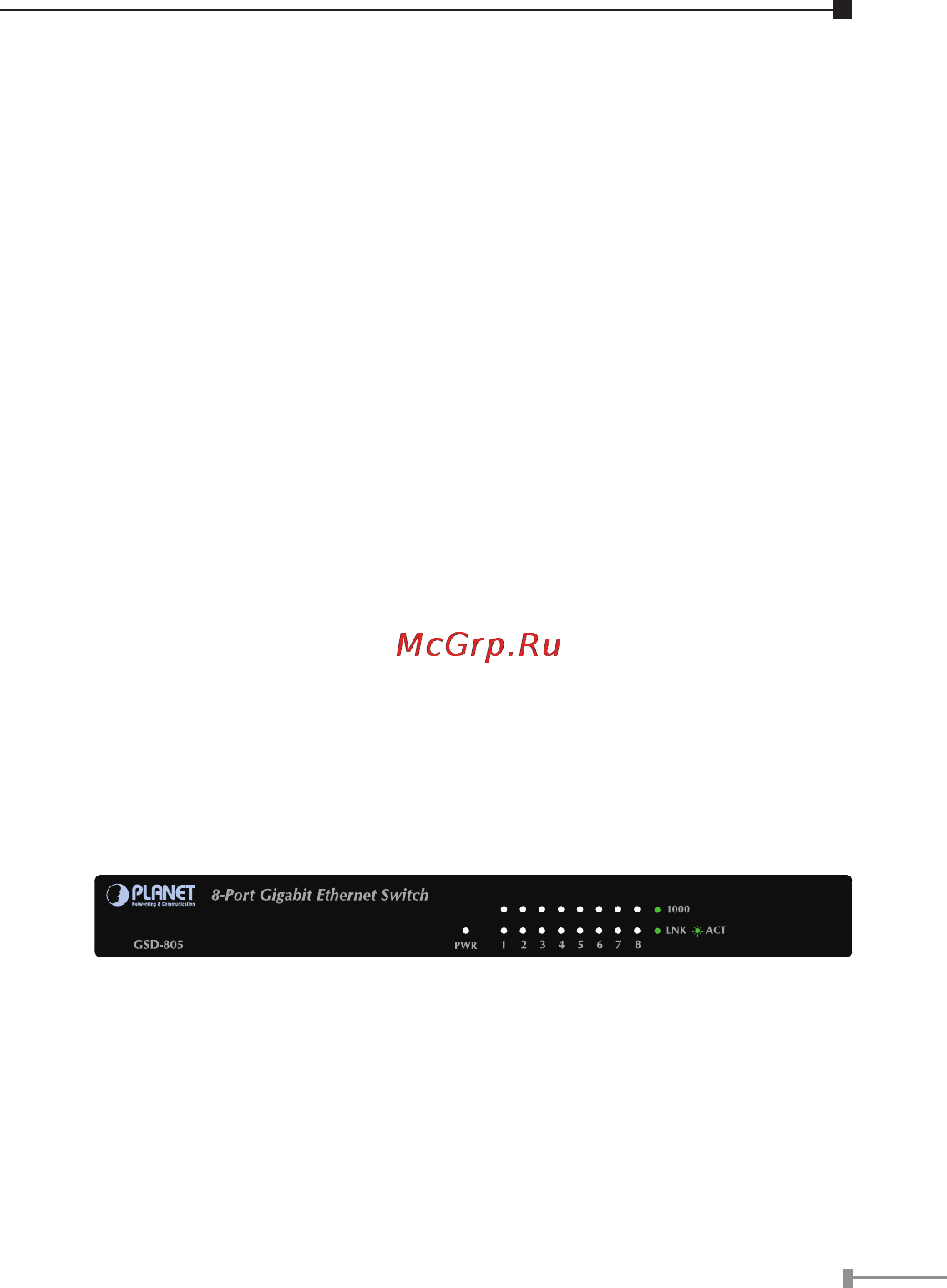

Figure 2-1 shows a front panel of GSD-805

Figure 2-1 GSD-805 front panel
