User’s Manual of GSD-800S / GSD-802S / GSD-802PS

be released.

4.2.2 Misc Configuration

The Misc Configuration includes the System name, Location name, Login Timeout, IP Address, Subnet Mask and

Gateway. Through the Web Switch Utility, you can easily recognize the device by using the System Name and the

Location Name. The Login Timeout is to set the idle time-out for security issue, when there is no action in running the Web

Switch Utility and the time is up, you must re-login to Web Switch Utility before you set the Utility. Fill up the IP Address,

Subnet Mask and Gateway for the device. The screen in Figure 4-3 appears.

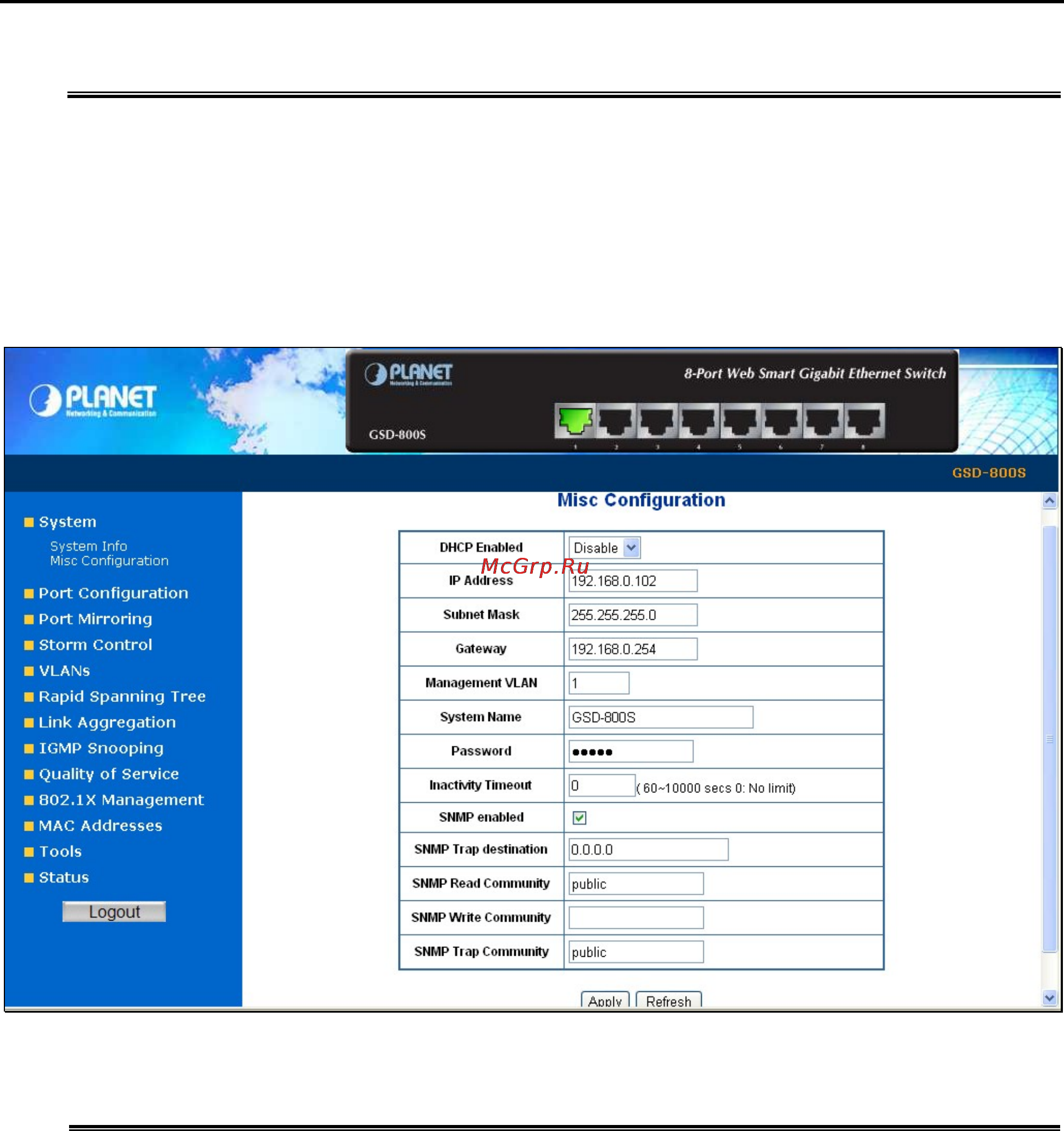

Figure 4-3 Misc Configuration screen

The page includes the following configurable data:

DHCP Enable

Choose what the switch should do following power-up: transmit a DHCP request,

or manual setting (Disable). The factory default is Disable.

IP Address The IP address of the interface. The factory default value is 192.168.0.100

Subnet Mask The IP subnet mask for the interface. The factory default value is 255.255.255.0

Gateway

The default gateway for the IP interface. The factory default value is

192.168.0.254.

Management VLAN

Specifies the management VLAN ID of the switch. It may be configured to any

value in the range of 1 - 4093. The management VLAN is used for management

of the switch.

System Name

Defines the user-defined device name.

Password

This function provides administrator to secure Web login.
