User’s Manual of GSD-800S / GSD-802S / GSD-802PS
4.14 PoE Configuration ( GSD-802PS Only)
The GSD-802PS is an 8 ports PoE Layer 2 Web Smart switch, it supports up to 8 ports PoE Power source (PSE) to supply
PoE power for the connected Power Device (PD).
Power Management:
In a power over Ethernet system, operating power is applied from a power source (PSU-power supply unit) over the LAN
infrastructure to powered devices (PDs), which are connected to ports. Under some conditions, the total output power
required by PDs can exceed the maximum available power provided by the PSU. The system may a prior be planed with
a PSU capable of supplying less power than the total potential power consumption of all the PoE ports in the system. In
order to maintain the majority of ports active, power management is implemented.
The PSU input power consumption is monitored by measuring voltage and current .The input power consumption is equal
to the system’s aggregated power consumption .The power management concept allows all ports to be active and
activates additional ports, as long as the aggregated power of the system is lower than the power level at which additional
PDs cannot be connected .When this value is exceeded, ports will be deactivated, according to user-defined priorities.
The power budget is managed according to the following user-definable parameters: maximum available power, ports
priority, maximum allowable power per port.

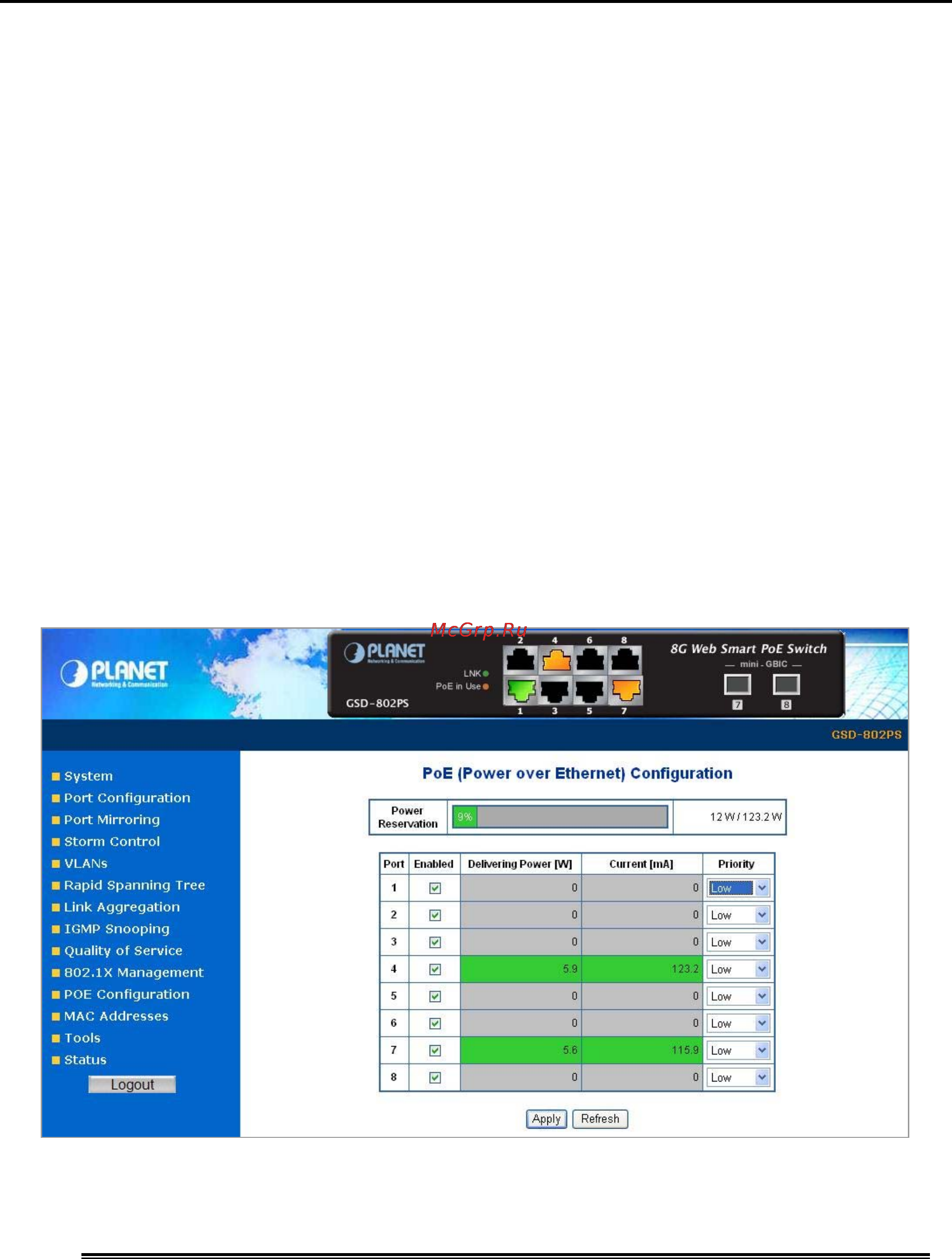

This section provides PoE (Power over Ethernet) Configuration and PoE output status of GSD-802PS, screen in Figure
4-69 appears. After setup completed, please press “Apply” button to take effect.
Figure4-69 GSD-802PS POE Configuration Web Page screen
The page includes the following fields:
Power Reservation
The summary list of Current(mA) and Power(watts).
Port
Indicate port 1 to port 8.
Enabled
Allow to disable or enable each POE port.
