User’s Manual of GSD-800S / GSD-802S / GSD-802PS
3. Assign PVID for each port:
Port-1,Port-2 and Port-3 : PVID=2
Port-4,Port-5 and Port-6 : PVID=3
Port-7~Port-8: PVID=1
4. Enable VLAN Tag for specific ports
Link Type: Port-3 (VLAN-2) and Port-6 (VLAN-3)

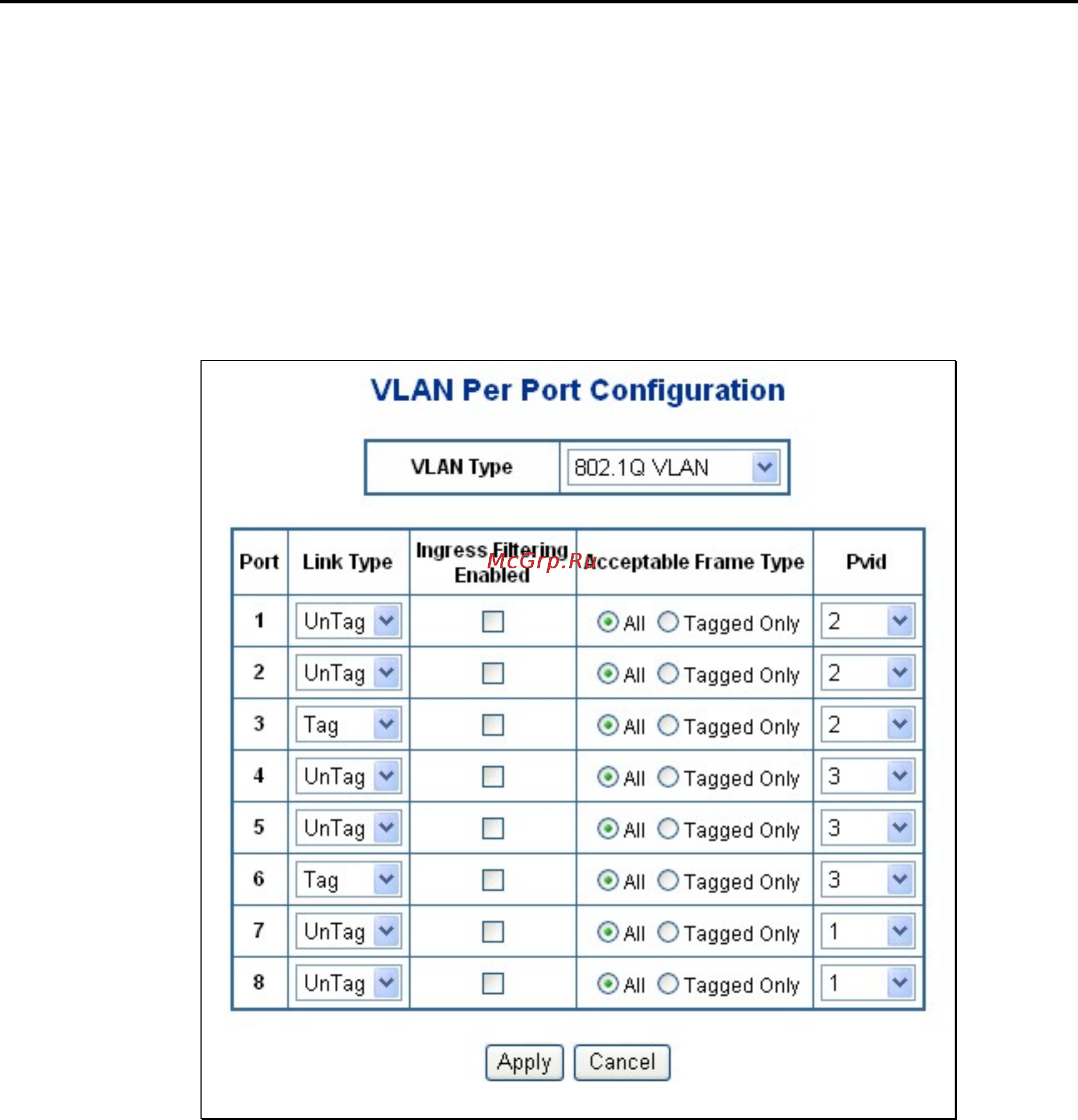

The Per Port VLAN configuration in Figure 4-15 appears.
Figure 4-15 Port 1-Port 6 VLAN Configuration
