User’s Manual of GSD-800S / GSD-802S / GSD-802PS
3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.

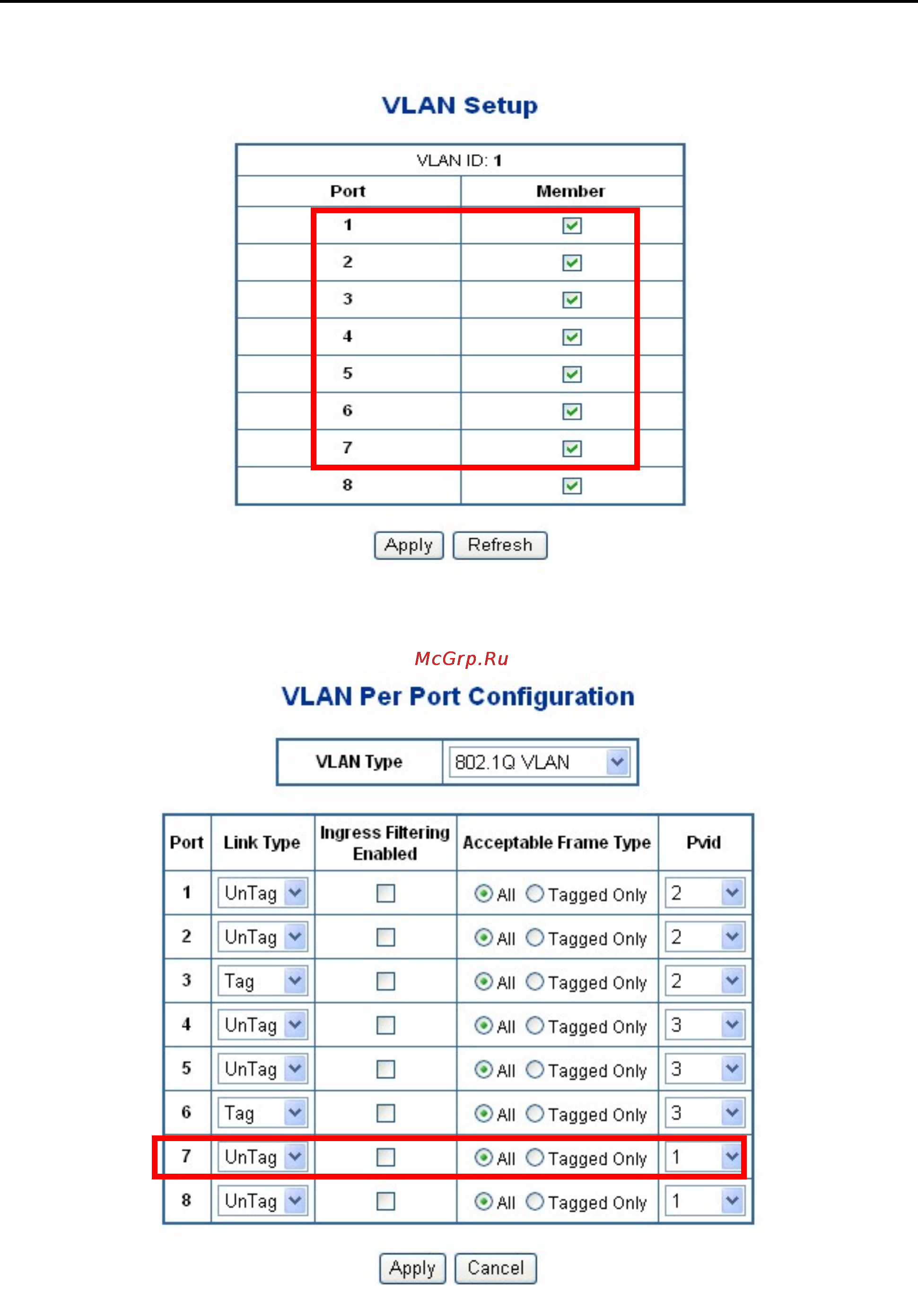

Figure 4-18 VLAN 1 – The public area member assign
4. Setup Port-7 with “PVID=1” at VLAN per Port Configuration page. The screen in Figure 4-19 appears.
Figure 4-19 Setup Port-7 with PVID-1
