User’s Manual of GSD-800S / GSD-802S / GSD-802PS
The RADIUS Server configuration table includes the following fields:
• Mode
To Enable/Disable the port access control administrative mode.
This selector lists the two options for administrative mode: enable and disable.
The default value is disabled.
• RADIUS Server IP
The IP address of the RADIUS server being added.
• RADIUS UDP Port
The UDP port used by this server. The valid range is 0 - 65535.
The default UDP Port No. is 1812
• RADIUS Secret
Indicates if the shared secret for this server has been configured.
Setup the RADIUS server and assign the client IP address to the Web-Smart switch. In this case, field in the default IP
Address of the Web-Smart switch with 192.168.0.100. And also make sure the shared secret key is as same as the one
you had set at the switch RADIUS server – 12345678 at this case.

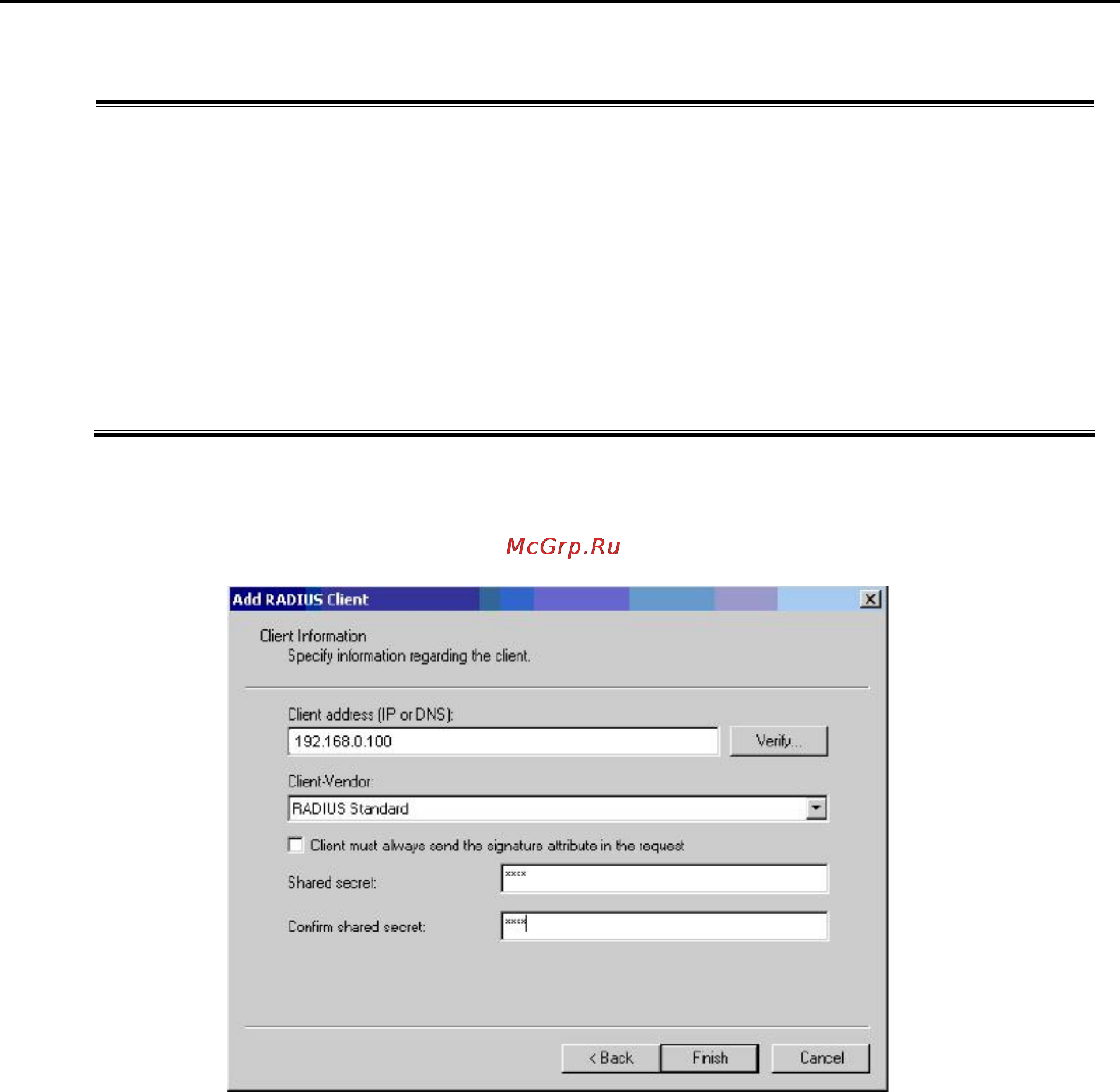

Figure 4-43 RADIUS Server configuration
