H61MHV/H61MGV/H61MLC2

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

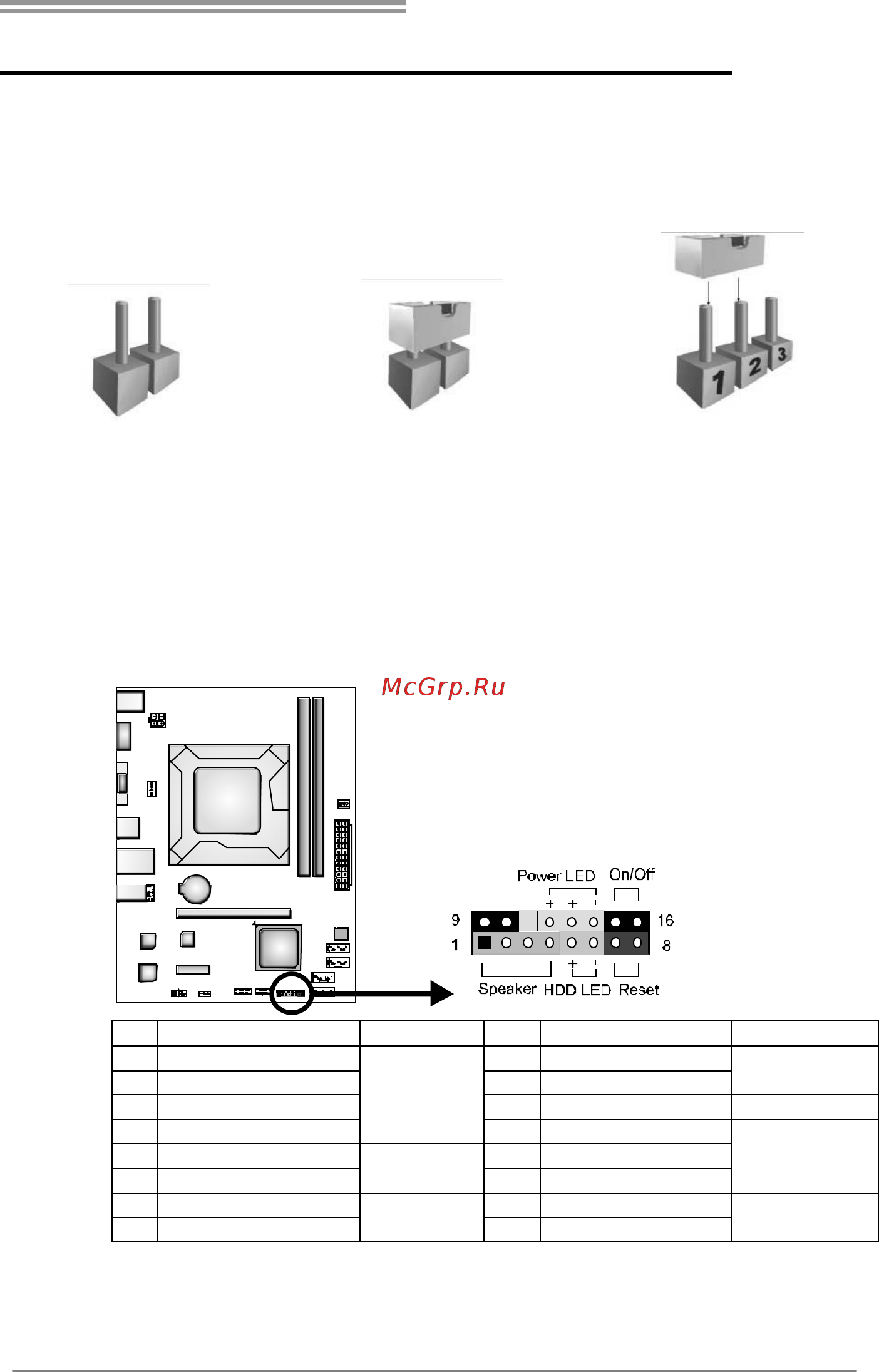

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

Pin Assignment Function Pin Assignment Function

1 +5V

Speaker

Connector

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 Speaker 12 Power LED (+)

Power LED

5 HDD LED (+)

Hard drive

LED

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 Ground

Reset button

15 Power button

Power-on button

8 Reset control 16 Ground
