H61MHV/H61MGV/H61MLC2
17
4.2 SOFTWARE
Installing Software
1. Insert the Setup DVD to the optical drive. The drivers installation
program would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.
Launching Software
After the installation process, you will see the software icon “eHOT Line” /
“BIOS Update” appears on the desktop. Double-click the icon to launch the
utility.

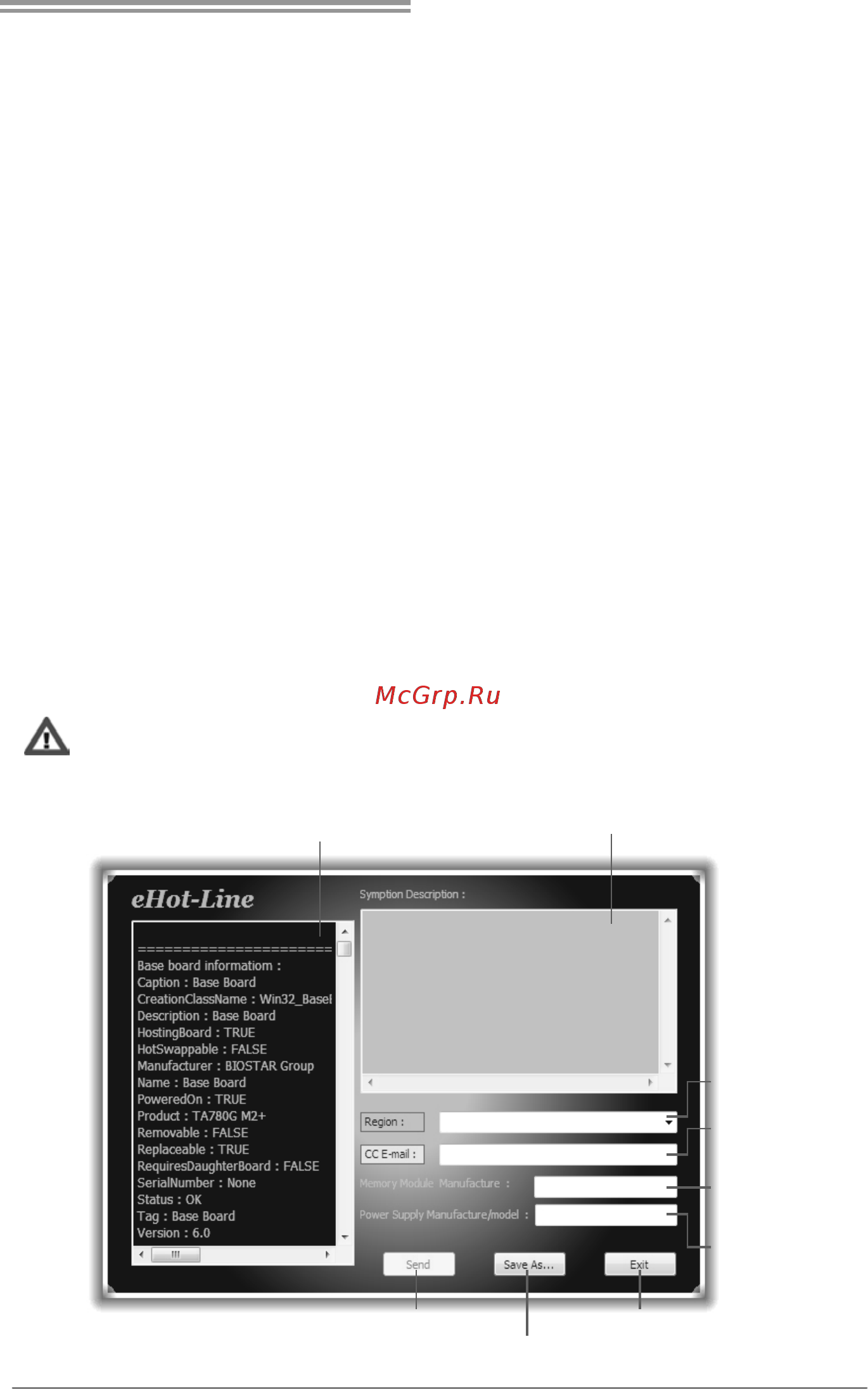

eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.
Before you use this utility, please set Outlook Express as your default e-mail client application program.
Thi s block will show
the information which
would be collected in
the mail.
Provid e t he e-ma il
address that you would
like to send the copy to.
Provide the name of
the pow er supp ly
manufact ur er a nd th e
model no.
Send the mail out.
Sav e these informa tion to a .txt fi le
Exit this dialog.
Select your area or
the ar ea clo se t o y ou.
*
Provide the name of
t h e memo ry mod ul e
manufact ur er.
*
Describe condition
of your system.
*
*
represents important
information that you
must provide. Without
this information, you may
not be able to send out
the ma il .
