3. MANAGE THE MEDIA CONVERTER

This product provides two different managed methods – configure through its DIP Switch or install into the central Web

Smart Media converter chassis for centralize management.

This section describes how to managed the GST-70x through its DIP Switch and Web Smart Media converter chassis.

Before use the GST-70x smart function, please read this chapter carefully.

3.1 DIP Switch configuration

The GST-70x provide DIP switch to setting fiber (Auto-negotiation / Manual) and LLR (Disable / Enable). Please refer to the

table below for more detail decription.

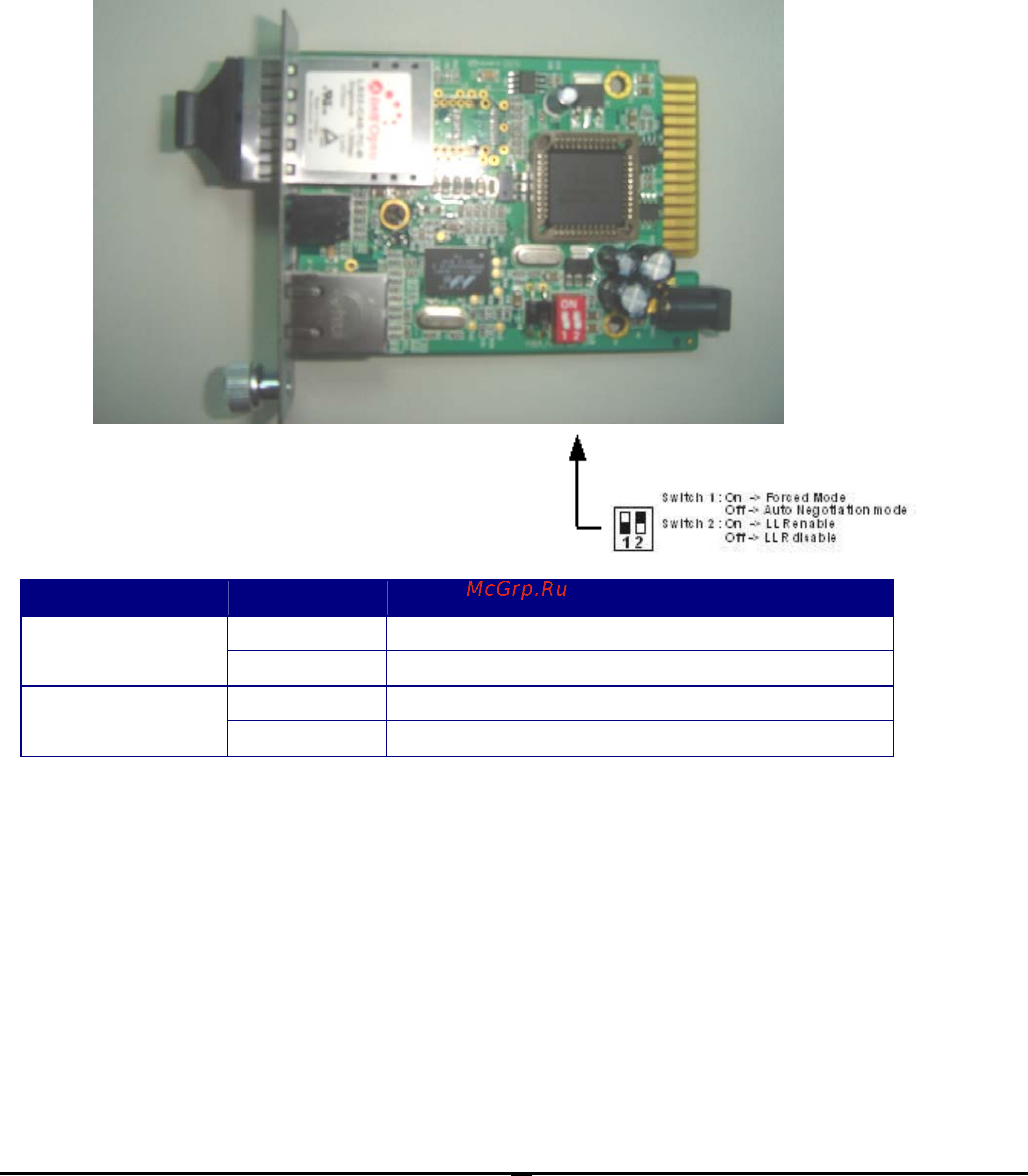

DIP Switch Mode Description

On Fiber operates at Forced Mode. DIP Switch 1

Off

Fiber operates at Auto-Negotiation

(default).

On LLR Enable. DIP Switch 2

Off

LLR Disable

(default).

Notice:

1. After change the DIP Switch setting, please power off and power on the GST-70x to take affect.

2. Be sure the opposite end is using the same setting (forced or Auto-negotiation). And when using two converters at the

same time, the two converters MUST set to forced mode.

3. When using two converters, don’t enable the both device’s LLR function at the same time.
