- 13 -

4.2 Link Loss Return (LLR)

The fiber ports of GST-70X have been designed with an LLR function for troubleshooting a remote connection. LLR works

in conjunction with LLCF.

When LLR is enabled*, the port’s transmitter shuts down when its receiver fails to detect a valid receive link. LLR should

only be enabled on one end of the link and is typically enabled on either the unmanaged or remote device.

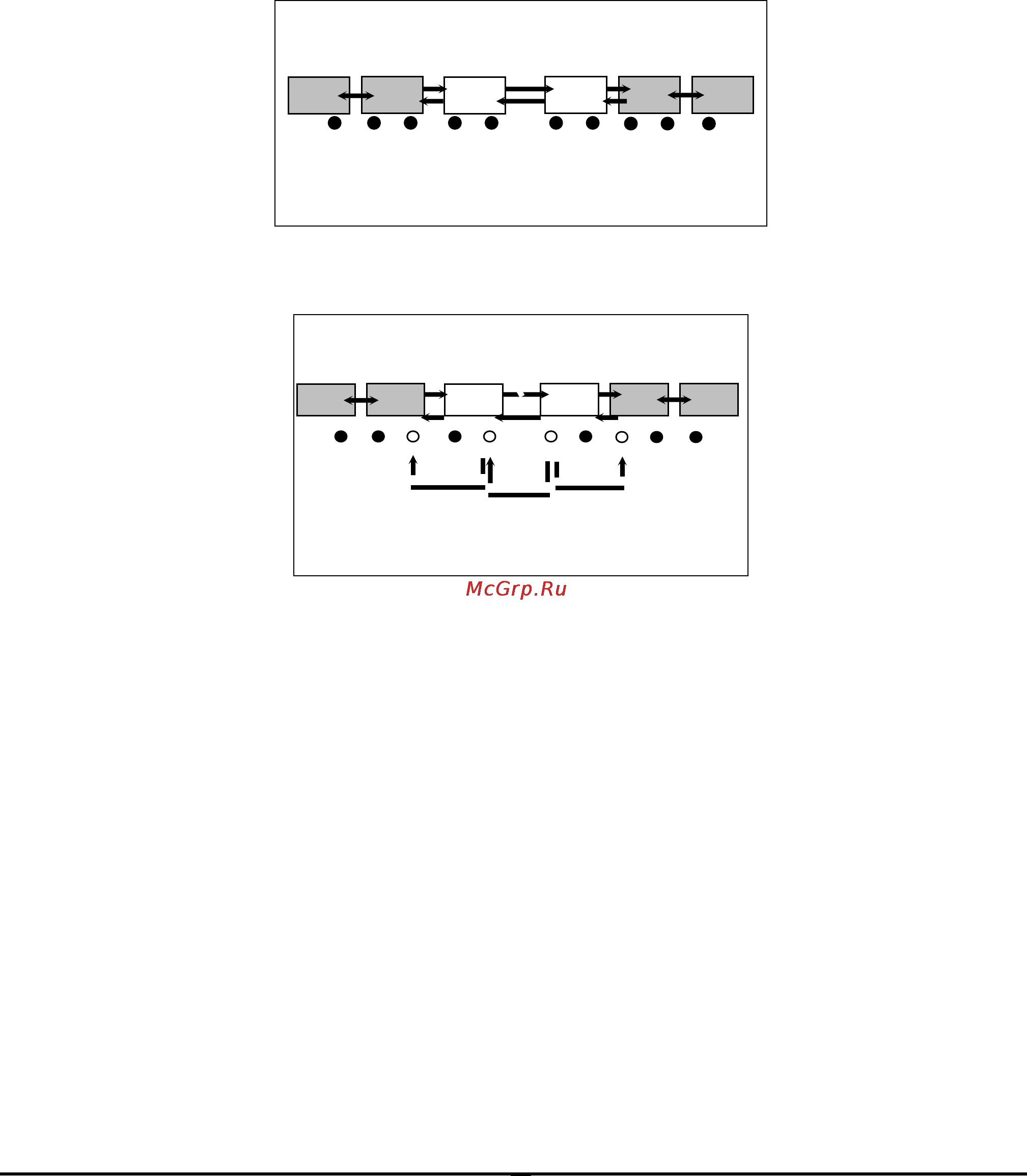

The diagram below shows a typical network configuration with a good link status using GST-70X for remote connectivity.

Note that LLR is enabled as indicated in the diagram.

Management Switch/Hub Media Media Switch/Hub Management

Station w/SNMP Converter Converter w/SNMP Station

● LED lit = established link ○ LED unlit = no link

LLCF is ON

Fiber

Cable

If one of the optical conductors is bad (as shown in the diagram box below), the converter with LLR enabled will return a

no-link condition to its link partner. With LLCF also default enabled, the no-link condition is carried forward to the switch/hub

where a trap is generated to the management station, and the administrator can then determine the source of the loss.

Management Switch/Hub Media Media Switch/Hub Management

Station w/SNMP Converter Converter w/SNMP Station

● LED lit = established link ○ LED unlit = no link

LLCF is ON

Port 2

Broken

Fiber

Port 1

Link Loss Carried Forward Link Loss Carried Forward

Link Loss Returned

#Notice:

1: LLR must NOT be active on both ends of a configuration. If it is, the link can never be established.

2. Units are shipped with the LLR function disabled (DOWN).
