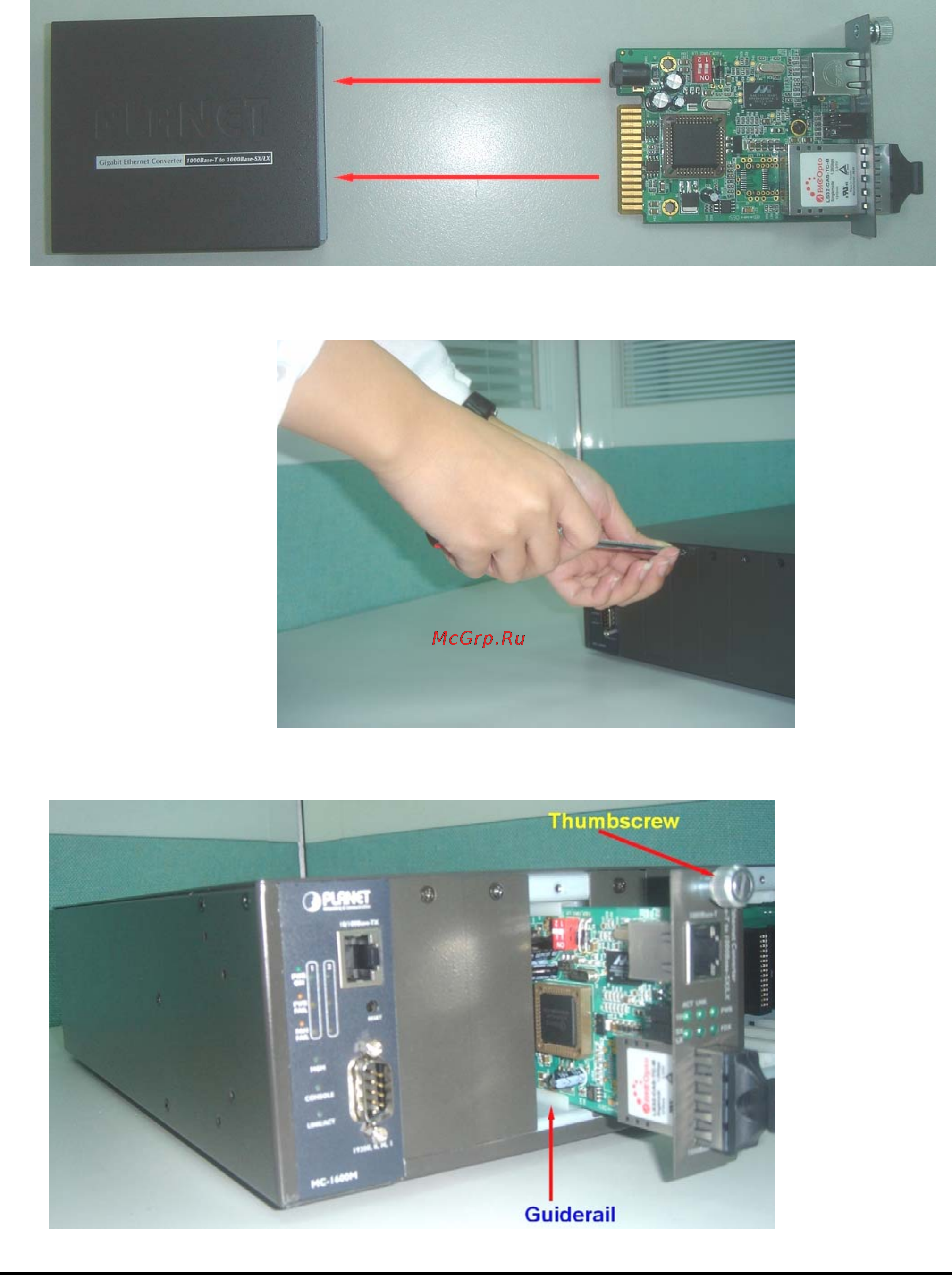

2.2 Slide Media Converter module into MC-1600MR/R48 Chassis installation
Step 1- Unscrew and pull out the GST-70x Media Converter board.
Step 2- Remove a blank faceplate from an empty expansion slot on the front of the chassis. The GST-70x Media Con-
verter board can be installed in any expansion slot.
Step 3- Slide the GST-70x Media Converter board into the expansion slot, aligning it with the guide rails, until it firmly
connects to the chassis’ backplane.
