GF7050-M2 SE/GF7025-M2 TE
13
CPU Internal Cache
Depending on the CPU/chipset in use, you may be able to increase memory
access time with this opt ion.
Enabled (default) Enable cache.
Disabled Disable cache.
External Cache
This option enables or disables “Level 2” secondary cache on the CPU, which
may improve performance.
Enabled (default) Enable cache.
Disabled Disable cache.

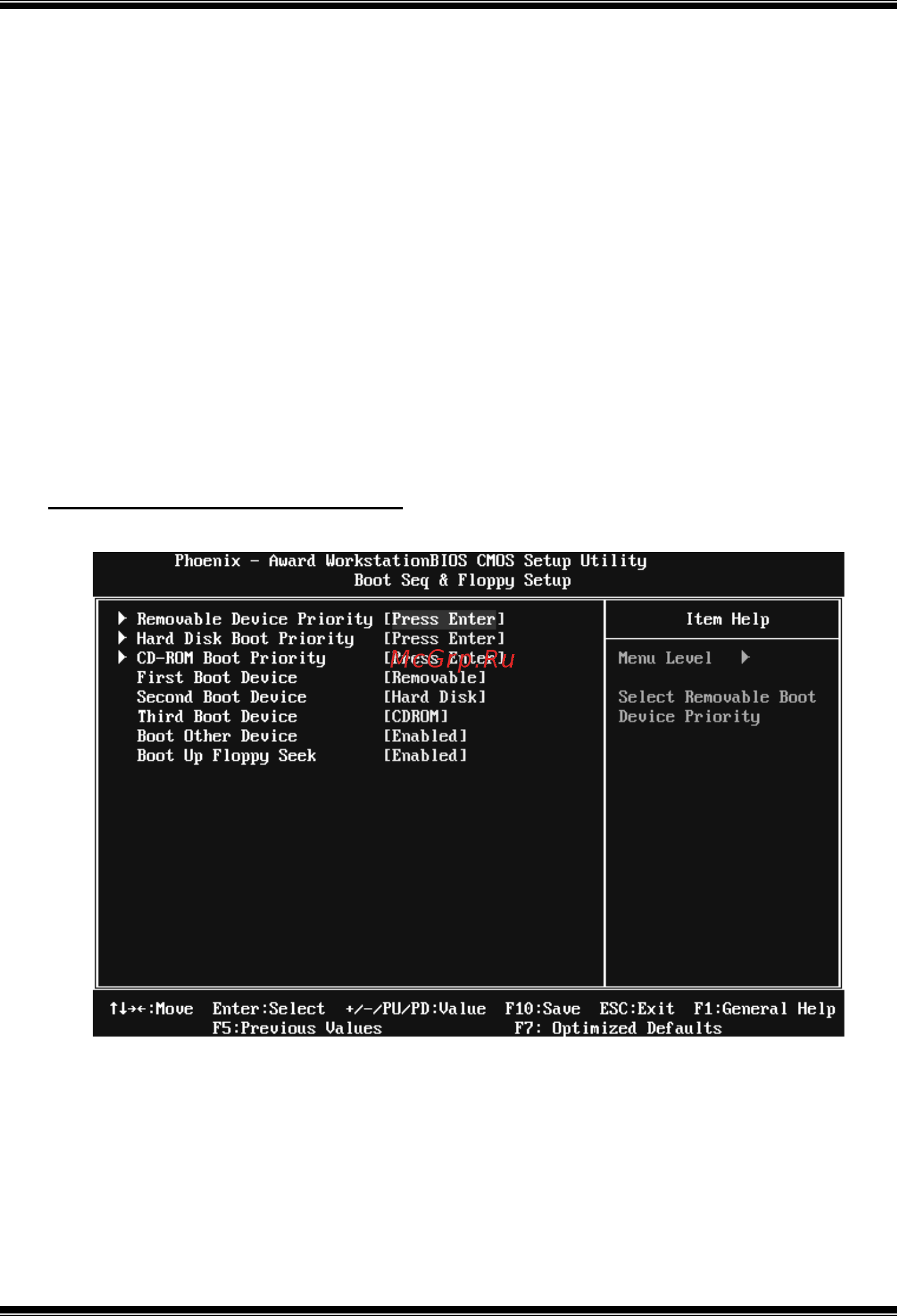

Boot Seq & Floppy Setup
This item allows you to setup boot sequence & Floppy.
