GF7050-M2 SE/GF7025-M2 TE
18
5 Integrated Peripherals

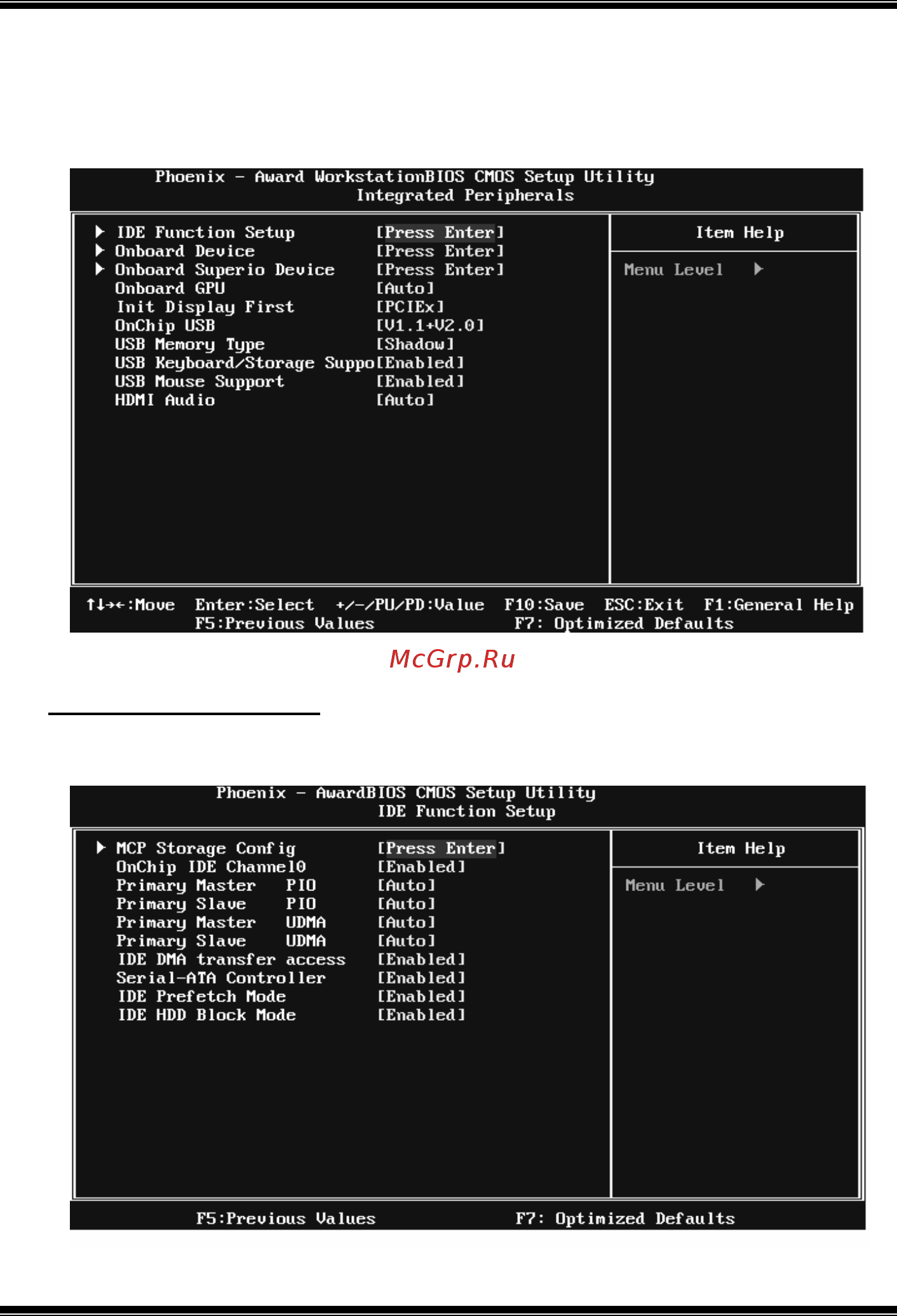

Figure 5. Integrated Peripherals
IDE Function Setup
Highlight the “Press Enter” label next to the “IDE Function Setup” label and
press enter key will take yo u a s ubmenu with the fo llowing optio ns:
