GF7050-M2 SE/GF7025-M2 TE
7
2 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories.
Each category inc ludes no, o ne o r more than o ne setup items. Use the arrow
keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the
value you want in each item.

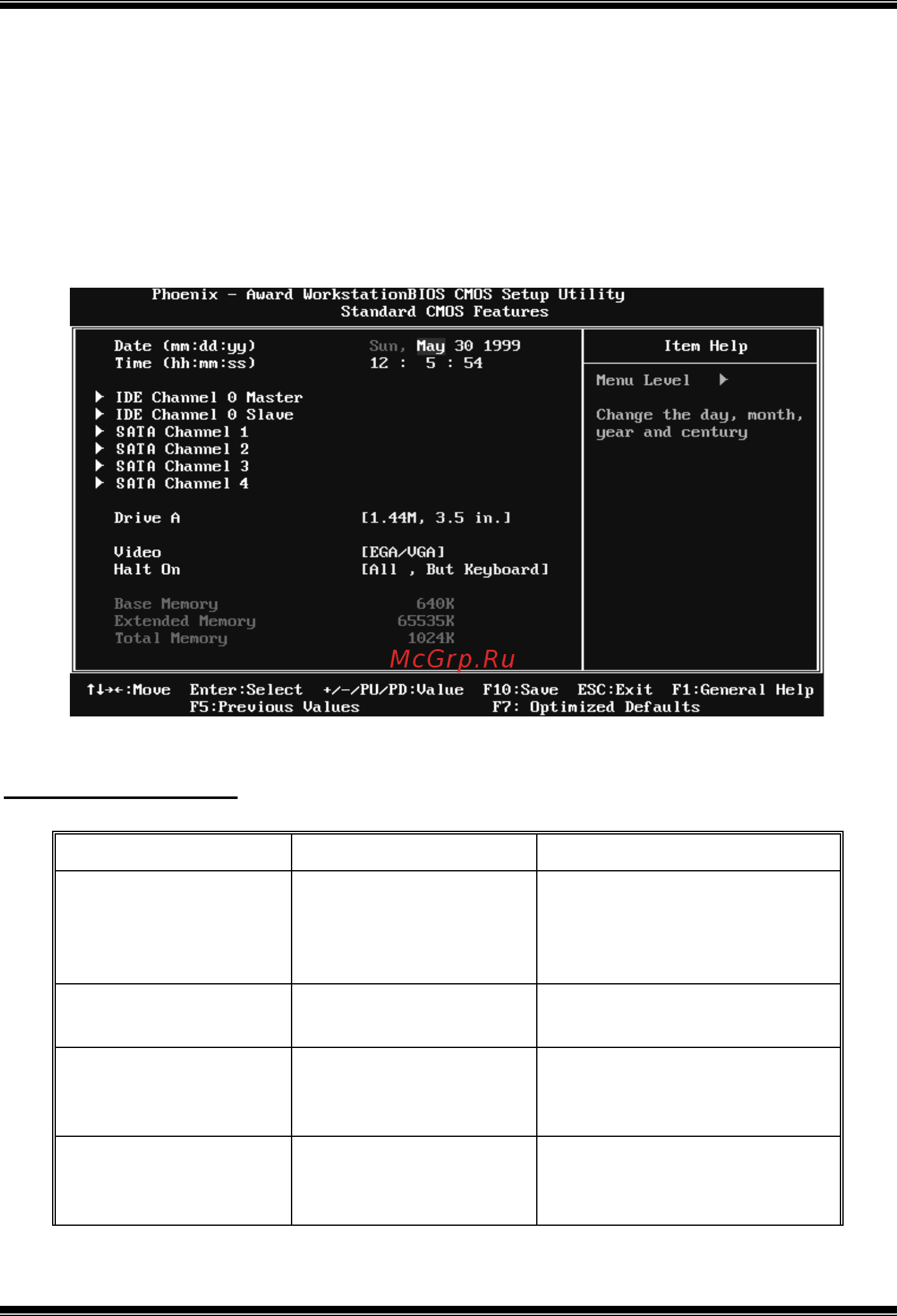

Figure 2: Standard CMOS Setup
Main Menu Selections
This table shows the items and the available options on the Main Menu.
Item Options Description
Date mm : dd : yy
Set the system date. Note
that the ‘Day’ automatically
changes when you set the
date.
Time hh : mm : ss
Set the system internal
clock.
IDE Channel 0
Master
Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options
IDE Channel 0
Slave
Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options.
