GF7050-M2 SE/GF7025-M2 TE
21

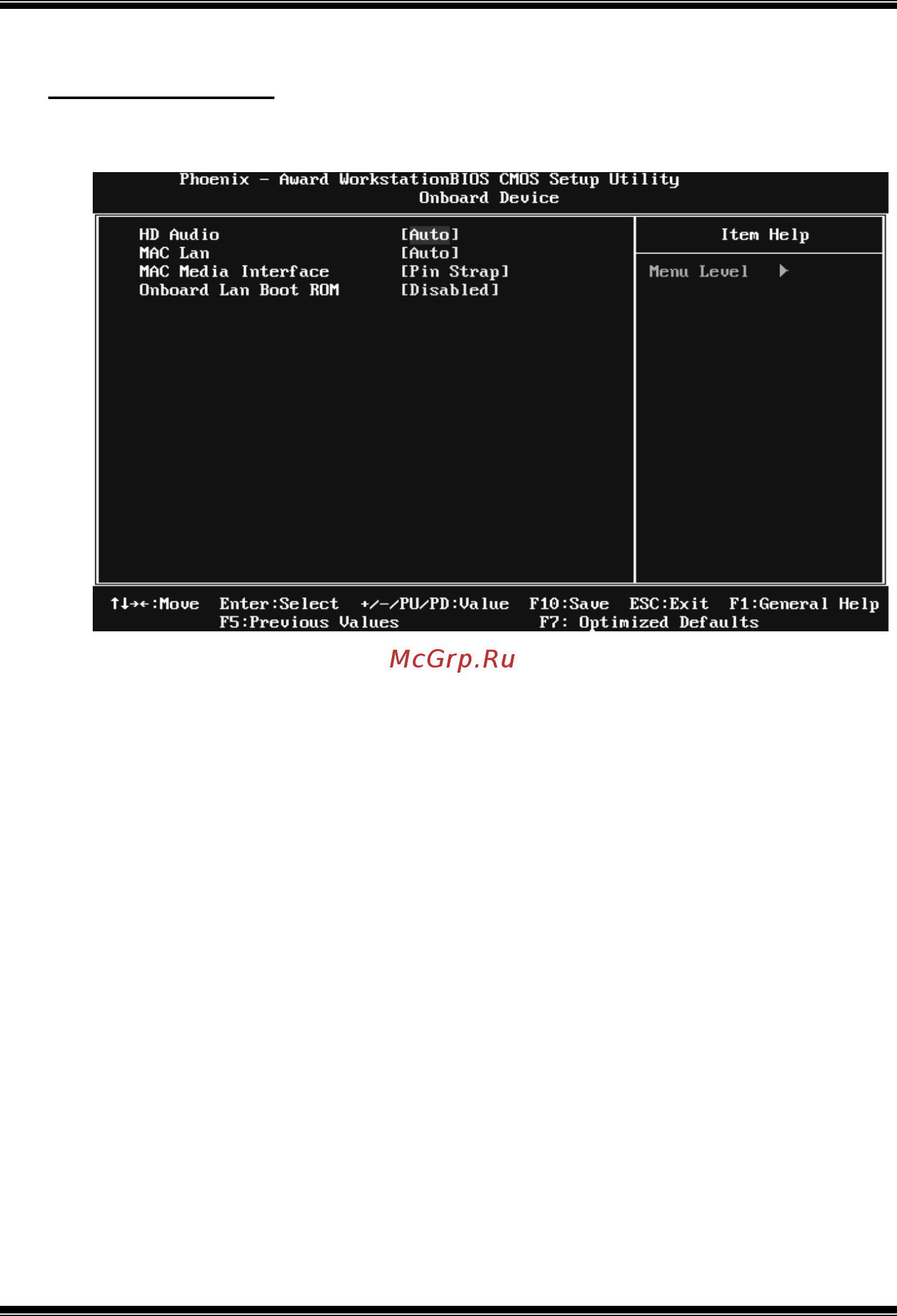

Onboard Device
Highlight the “Press Enter” label next to the “Onboard Device” label and press
the enter key will take you a submenu with the following options:
HD Audio
This option allows you to control the onboard HD audio.
The Choices: Auto (default), Disabled.
MAC LAN
This option allows you to control the onboard LAN.
The Choices: Auto (default), Disabled.
MAC Media Interface
T his option allows you to select the MAC media interface..
The Choices: Pin Strap (default), MII, RGMII.
Onboard LAN Boot ROM
This item allows you to enable or disable the Onboard LAN Boot ROM.
The Choices: Disabled (default), Enabled.
