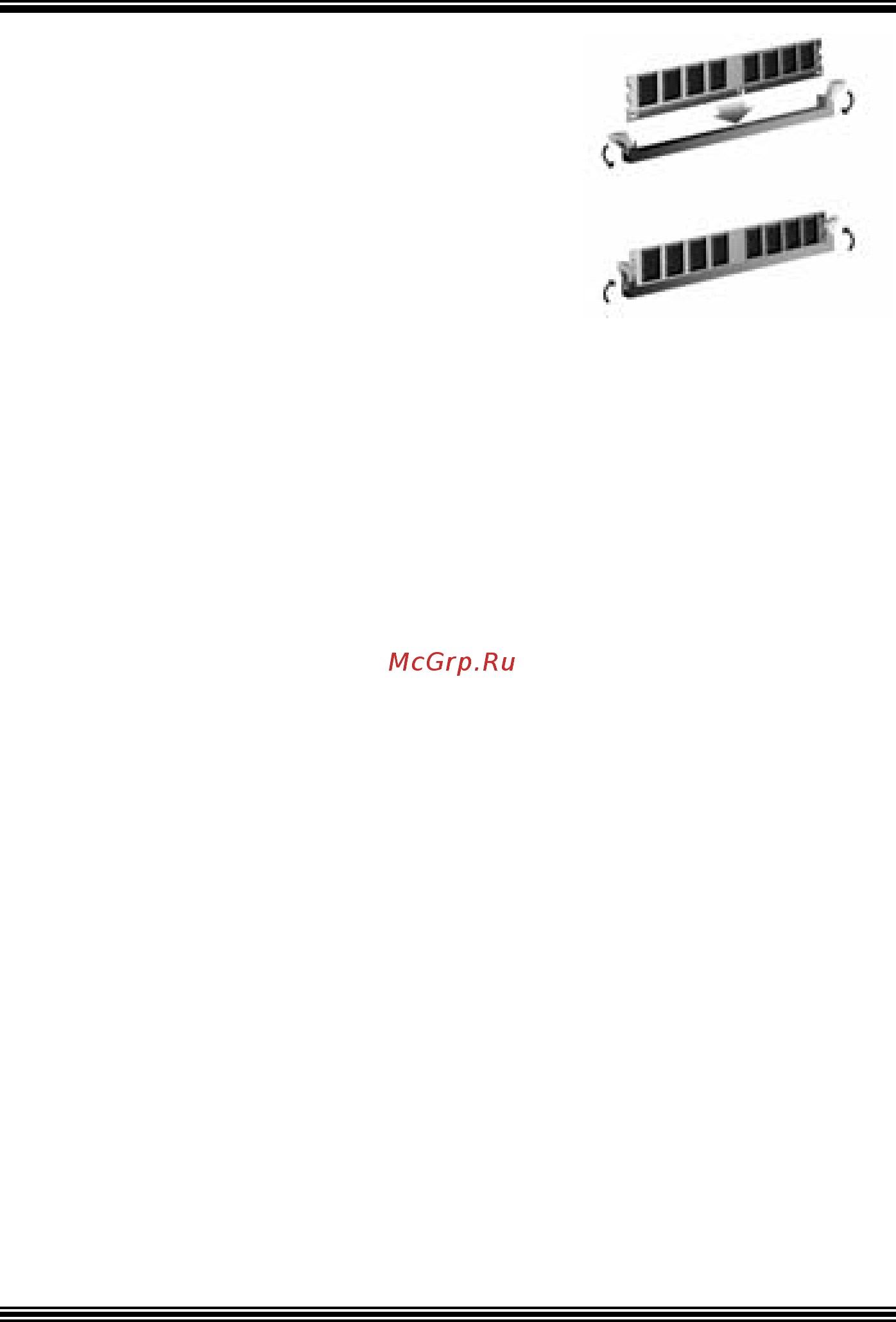

Installing DIMM Module

1. U nlock a DI MM s lot by press ing t he retaining

clips outward. Align a DIMM on the slot such

that the notch on the DIMM matches the

break on the slot.

2. Insert the DIMM f irmly and vertically into the

slot until the retaining chip snap back in

place and the Dimm is properly seated.

Jumpers, Headers, Connectors & Slots

Floppy Disk Connector: FDD1

The motherboard provides a standard f loppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

prov ided f loppy drive ribbon cables.

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has two

HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectors can connect a master and a slave driv e, so you can connect

up to f our hard disk driv es. The f irst hard drive should alway s be connected to

IDE1.

Peripheral Component Interconnect Slots: PCI 1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for Peripheral

Component Interconnect, and it is a bus standard for expansion cards. This PCI

slot is designated as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that v ideo card. This motherboard supports

video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port

(AGP). An AGP card will take advantage of AGP technology f or improved video

efficiency and performance, especially with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it defines a

hardware scalable riser card interface, which supports audio, network and modem

only.
