Biostar M7VIT Grand [31/85] Installation
![Biostar M7VIT Grand [31/85] Installation](/views2/1711926/page31/bg1f.png)
28
Installation

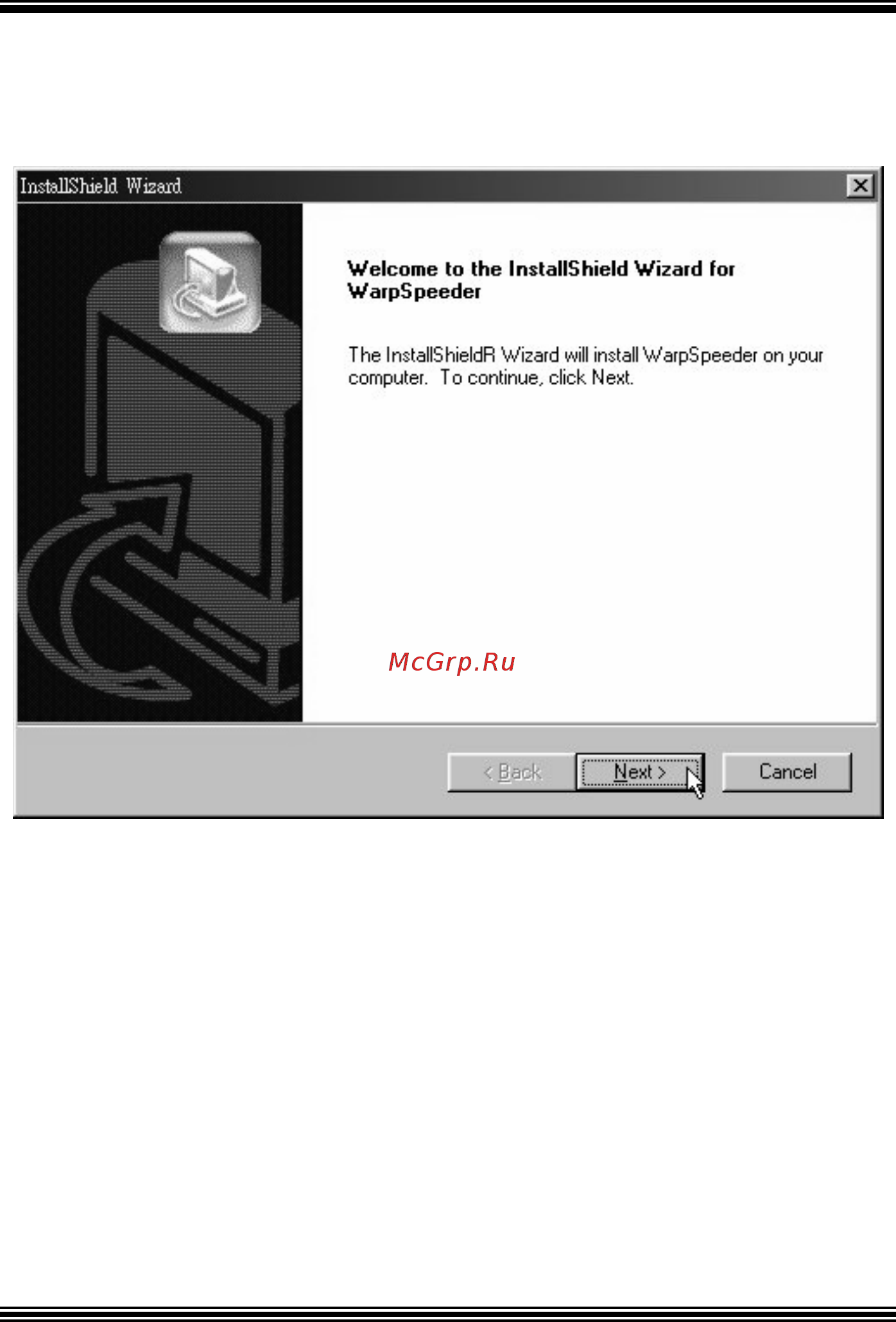

1. Execute the setup execution f ile, and then the following dialog will pop up.
Please click “Next” button and follow the default procedure to install.
2. When y ou see the following dialog in setup procedure, it means setup is
completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked,
the Tray Icon utility and [WarpSpeeder™] utility will be automatically and
immediately launched after y ou click “Finish” button.
