Biostar M7VIT Grand [13/85] Clear cmos jumper jcmos1
![Biostar M7VIT Grand [13/85] Clear cmos jumper jcmos1](/views2/1711926/page13/bgd.png)
10

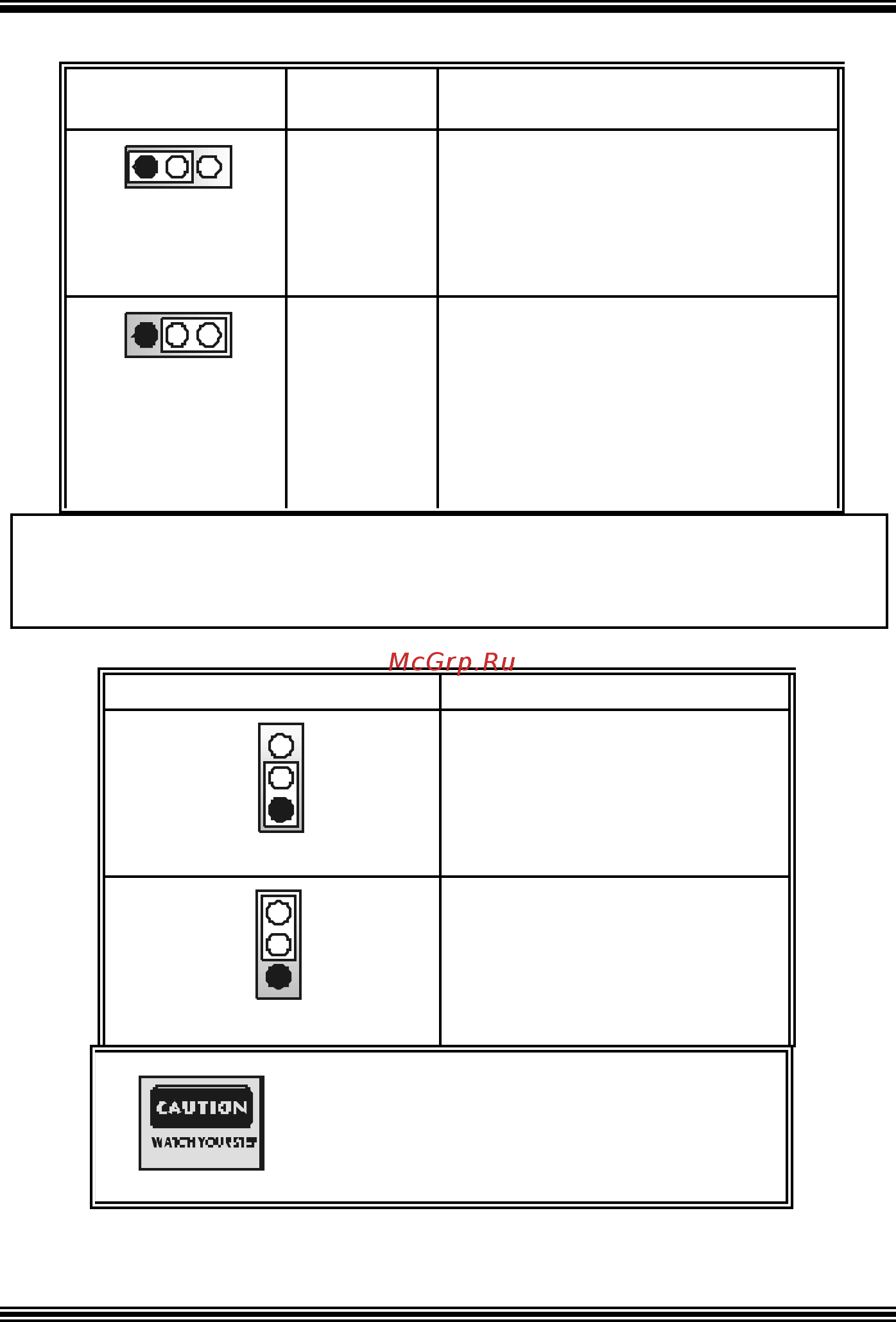

Power S ource Selection for USB: JUSBV1/ JUS BV2/ JUSBV3
JUSBV1/JUSBV2/
JUSBV3
Assignment Description
1 3
Pin 1-2 close
+5V JUSBV1: 5V for USB at the JUSB1
connector port
JUSBV2: 5V for JUSBLAN1 port
JUSBV3: 5V for JUSB3/4 ports
1 3
Pin 2-3 close
+5V Standby
Voltage
JUSBV1: JUSB1 port powered with
standby v oltage of 5V
JUSBV2: JUSBLAN1 port powered with
standby v oltage of 5V
JUSBV3: JUSB3/4 ports powered with
standby v oltage of 5V
Note: In order to support this function “Power-on the system via USB device”,
“JUSBV1/JUSBV2/JUSBV3” jumper cap should be placed on pin 2-3
respectively.
Clear CMOS Jumper: JCMOS1
※ Clear CMOS Procedures:
1. Remov e AC power line.
JCMOS1 Assignment
1
3
Pin 1-2 Close
Normal Operation (default)
1
3
Pin 2-3 Close
Clear CMOS Data
The followin
g
p
rocedures are for resettin
g
the
BIOS
p
assw ord. It is im
p
ortant to follow these
instructions closely.
