Control System ED34-645B
716 Control

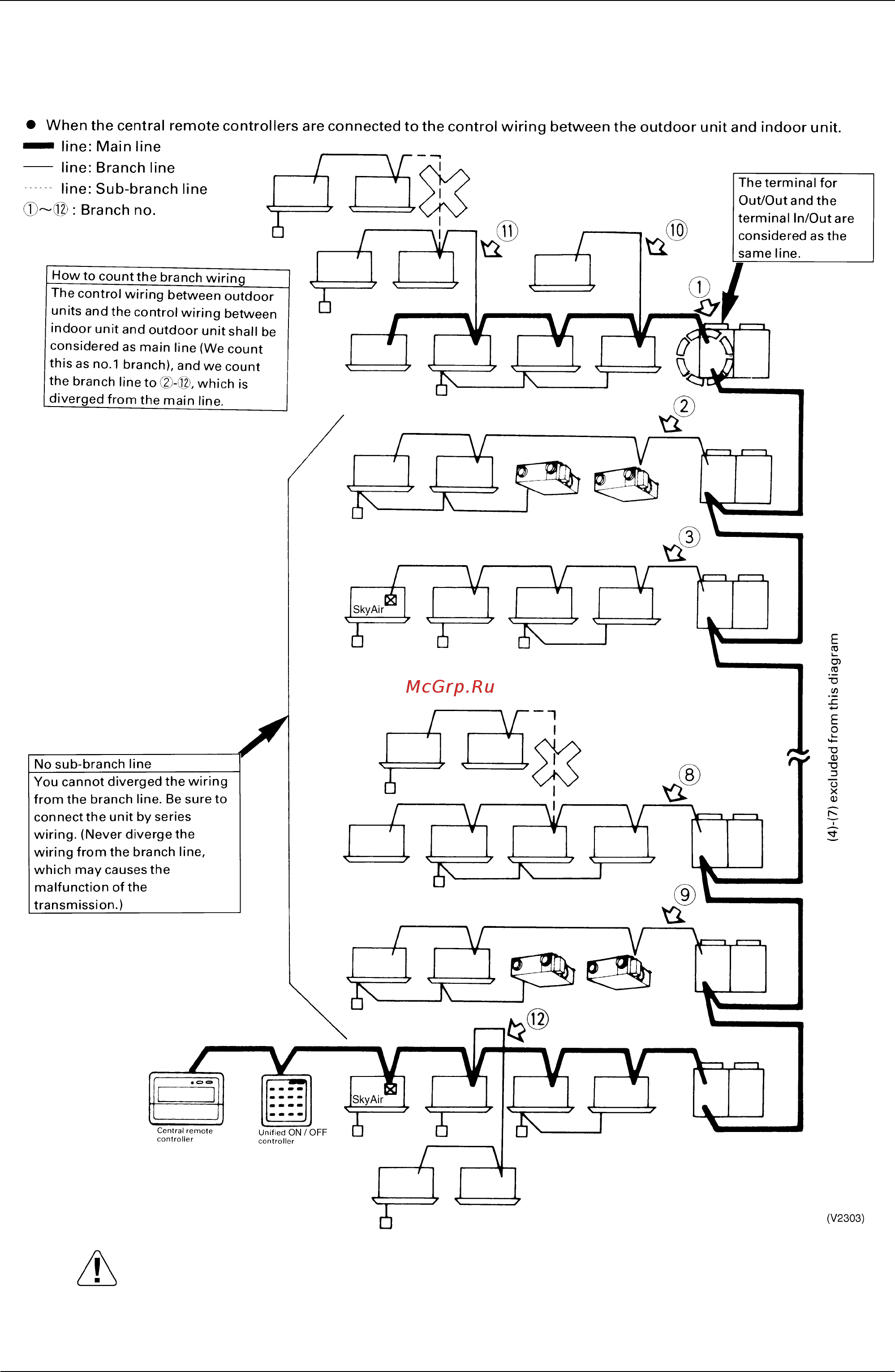

3.6.5 Example of the System (2)
Here we define as branch line, which is diverged from the main line and also call it sub-branch line, which is
diverged from the branch line.
Caution
As shown above, if the central remote controllers are connected to the control wiring between indoor unit and outdoor
unit, it may not be able to control the units even on the normal circuit, if the circuit connected to the central controller
is out of order. Be sure to connect the central controllers to the control wiring between the outdoor units.
