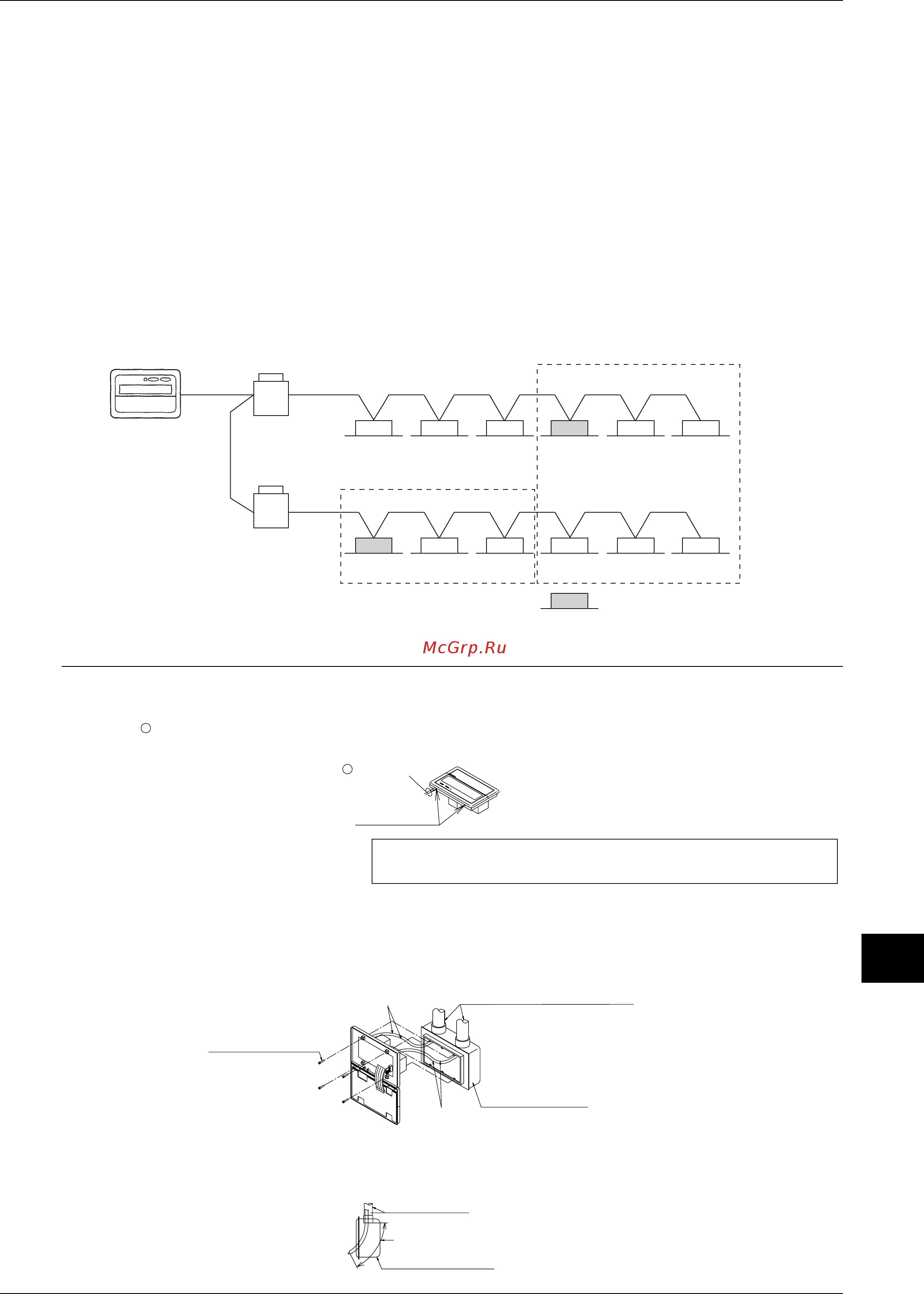

ED34-645B Control Devices
Control 751
16
• When zone registration is carried out by Central Remote Controller.
It operates from next time with the value set up in the zone.
When a zone 1 is set up with 20 °C of heating. (Refer to the system of the following figure.)
When controlled by Central Remote Controller, 3 indoor units registered into the zone 1 are operated by 20 °C
of heating. Because priority is given to zone setting, even if it sets up 2-02 with 25 °C of heating on an individual
screen from Central Remote Controller, 2-02 is operated at 20 °C.
• When there are two or more indoor units in a zone.
Because an operating mode depends on the outdoor unit, the operating mode of each indoor unit does not
become the same setting.
When the outdoor unit system 1 is cooling, the outdoor unit system 2 is heating and it operates by the system of
the following figure. Setting of a zone 2 is operated in heating mode, because 2-03, 2-04, and 2-05 do not have
a cooling/heating selection right as for 26 °C of cooling, but temperature setting becomes 26 °C.
When you unify the operating mode of an indoor unit in the same zone, please set up a zone in the indoor unit of
the same outdoor unit system.
Installation
(1) Open the upper part of remote controller.
Insert a screwdriver (2 locations) into the recess between the upper part and the lower part of remote controller
and twist the screwdriver lightly.
(2) Open the upper part of remote controller and install the Electric parts box with the attached installation screws
(M4 × 16).
NOTE) Suitable length of the electric wire is about 160mm. (from electric parts box) If it is difficult to contain a long
wiring, strip the sheathed part of the wiring.
C: 2P162816
Outdoor Unit
System 1
Outdoor Unit
System 2
Cooling/Heating Selection Right
1-00 1-01 1-02 1-03 1-04 1-05
Zone 2
2-00 2-01 2-02
Zone 1
2-03 2-04 2-05
Central Remote
Controller
–
– screwdriver
(2 locations)
PC board is attached with both the upper and lower part of remote
controller. Do not damage the board with the screwdriver.
Power supply wire
Installation screws
(4)
Do not contain the strong
current electric wire and the
weak current electric wire in
the same conduit tube.
Weak current
electric wire
Electric parts box
(KJB311A)
Conduit tube
Electric parts box
Approx. 160mm
