Adaptor ED34-645B
818 Control

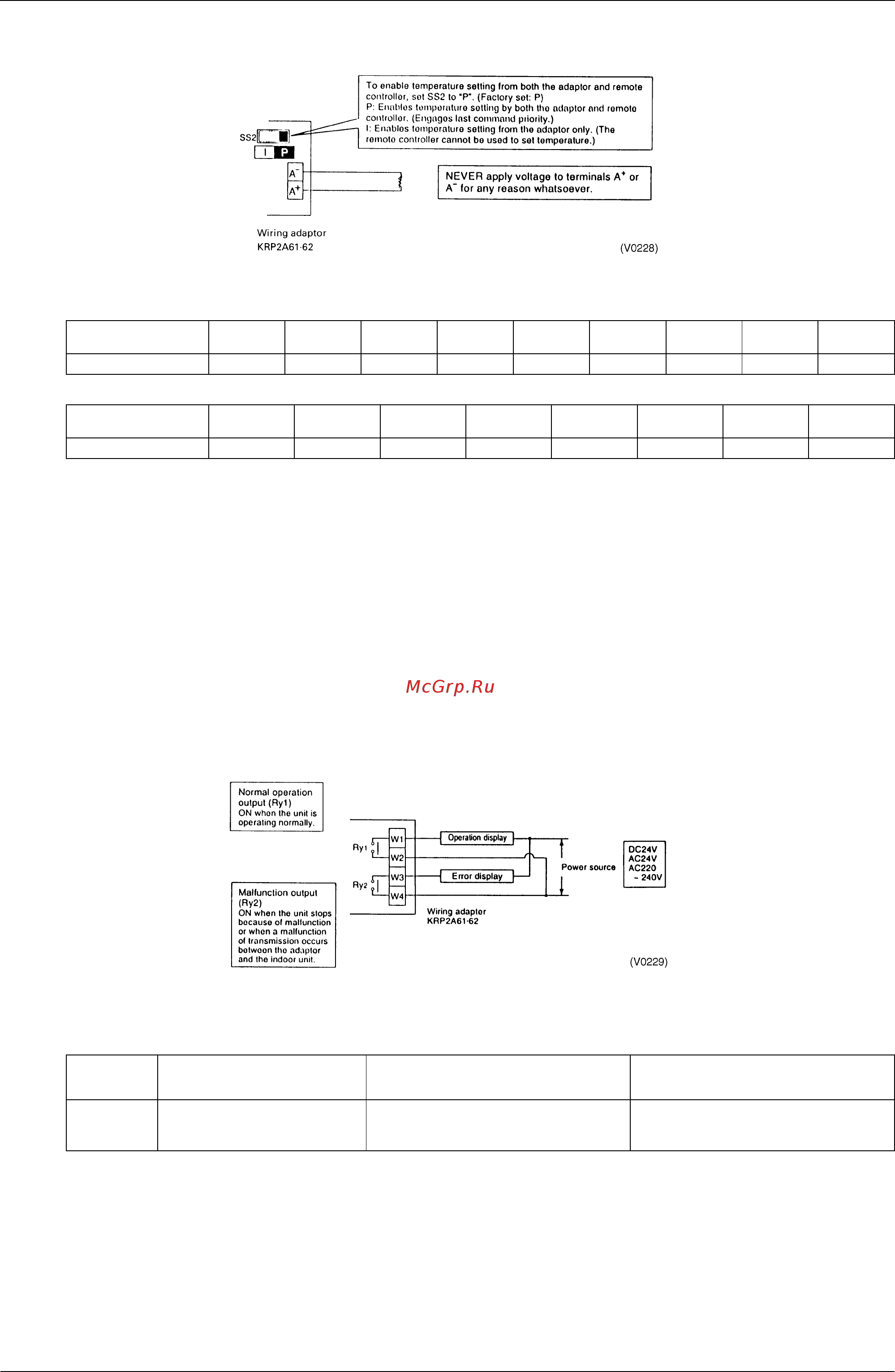

3. Temperature Setting Input
Temperature setting corresponds to resistance values in the range of 0 to 135
Ω
. Their relationship is as shown below.
Note:
Wiring resistance included in above figures.
(Wiring specifications)
Wiring ... Sheathed wire
Gauge ... 1.25
~
2.00 mm²
Length ... Max. 70 m
(IMPORTANT)
Keep transmission wiring at least 50 mm away from power supply wiring to avoid malfunctions.
4. Canceling Display Signals
Operation output terminals (W1 and W2) and malfunction output terminals (W3 and W4) are non-voltage constant
contact output.
(Allowed electric current per contact is between 10 mA and 3 A.)
Note:
If using a 220
~
240V power supply, keep transmission wiring at least 50 mm away from incoming power supply wiring.
Display output is described by system in the below table.
Note:
If rewiring F1 and F2 after running the system, turn ON power for 5 minutes, then turn it OFF and ON again. Changes
to wiring can sometimes disable control from the wiring adaptor.
C : 1PA63642B
Temperature Setting
(°C)
16 17 18 19 20 21 22 23 24
Resistance (Ω) 0.0~3.4 5.0~11.6 13.8~20.0 22.4~28.4 31.0~36.4 39.4~44.8 48.2~52.8 56.6~61.2 65.2~69.4
Temperature Setting
(°C)
25 26 27 28 29 30 31 32
Resistance (Ω) 73.8~77.8 82.4~85.8 91.0~94.0 99.4~102.2 108.6~110.4 117.2~119.2 125.8~127.4 134.2~140.0
Output
Both Ry1 and Ry2 OFF Ry1 only ON Ry2 only ON
System
Zone control All zones OFF
At least one unit running normally, no
malfunction
Even 1 unit stopped due to malfunction
or malfunction of transmission between
adaptor and indoor unit
