NF325-A7
8

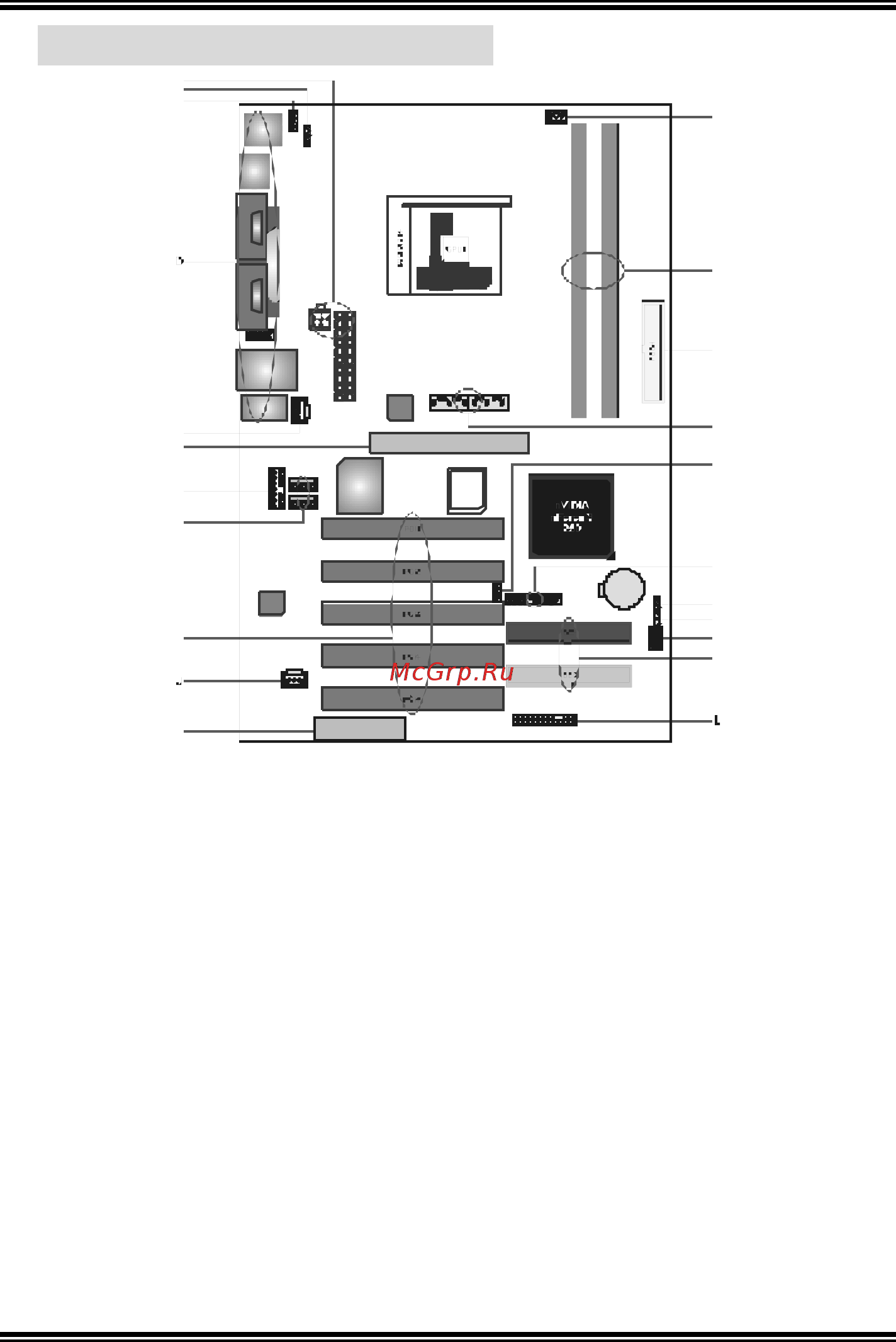

1.6 COMPONENTS OF VERSION 1.1
A
B
C
E
F
G
H
I
K
M
N
O
P
Q
R
V
A
GP 1
BIOS
Supe r I/O
BAT1
D DR1
DDR 2
LA N
S
Co de c
CNR
T
U
A.
JATXPWR1~2: ATX power
connectors.
L.
JPANEL1: Front panel connector.
B.
JUSBV1: Power source for JUSB3.
M.
IDE1~2: Hard disk connectors.
C.
JKBMSV1: Power source for JKBMS1.
N.
JSFAN1: System fan connector.
D.
Back panel connectors (including
COM2 header).
O.
JCMOS1: Clear CMOS Header.
E.
JSPDIF_IN: Digital audio out header
(optional).
P.
JCI1: Case open Header.
F
AGP1: Accelerated Graphics Port slot.
Q.
JUSB1~2: Front USB headers.
G.
JAUDIO1: Audio out header.
R.
JUSBV3: Power source f or JUSB1~2.
H.
JCDIN1/JCDIN2: CD-ROM audio-in
header. (JCDIN2 is optional.)
S.
JSATA4~5: Serial ATA connectors.
I.
PCI1~5: Peripheral Component
Interconnect slots.
T.
FDD1: Floppy disk connector.
J.
JSPDIF_OUT: Digital audio out header
(optional).
U.
DDR1~2: DDR memory modules.
K. CNR1:
Communication Network
Ri ser sl ot.
V.
JCFAN1: CPU f an connector
