NF325-A7
3

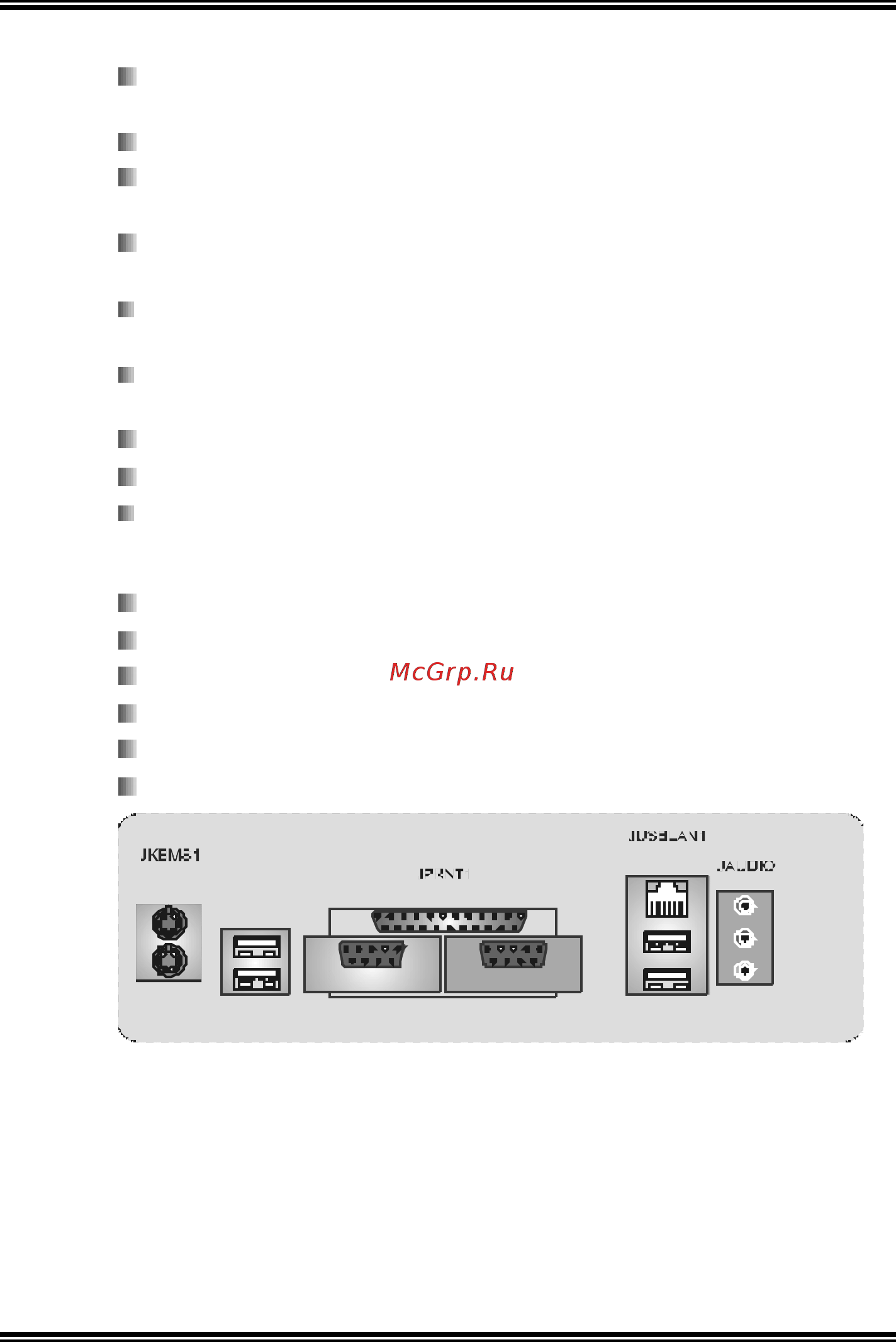

Front Side On-board Peripherals
1 audio out header supports 1 line-in, 1 line-out, and 1MIC
ports.
1 serial header supports 1 serial COM port. (JCOM2, optional)
1 CD-in connector supports 1 CD-ROM device.
(One extra CD-in connector is optional for v1.1 only.)
1 S/PDIF-out connector supports 1 digital audio-out port.
(Digital audio-out function is optional for both versions.).
1 S/PDIF-in connector supports 1 digital audio-in port.
(Digital audio-in function is optional for v1.1 only.)
1 floppy connector supports 2 FDD devices with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 USB headers support 4 USB 2.0 ports.
2 IDE connectors support 4 hard disk devices.
2 Serial ATA connectors support 2 SATA devices.
Rear (Back) Side Connectors
1 parallel port.
1RJ-45 LAN jack.
1 audio port.
1 PS/2 keyboard & mouse port.
1 serial port. (JCOM3 is optional.)
4 USB 2.0 ports.
PS /2
Keyboard
PS/2
Mouse
COM1
Parallel
COM3
(optional)
LAN
USB x2
Line In/
Surround
Line Out
Mic In 1/
Base/Center
USB x2
