NF325-A7 BIOS Setup

IDE Function Setup

If you highlight the literal “Press Enter” next to the “IDE Function Setup” label and then press

the enter key, it will take you a submenu with the following options:



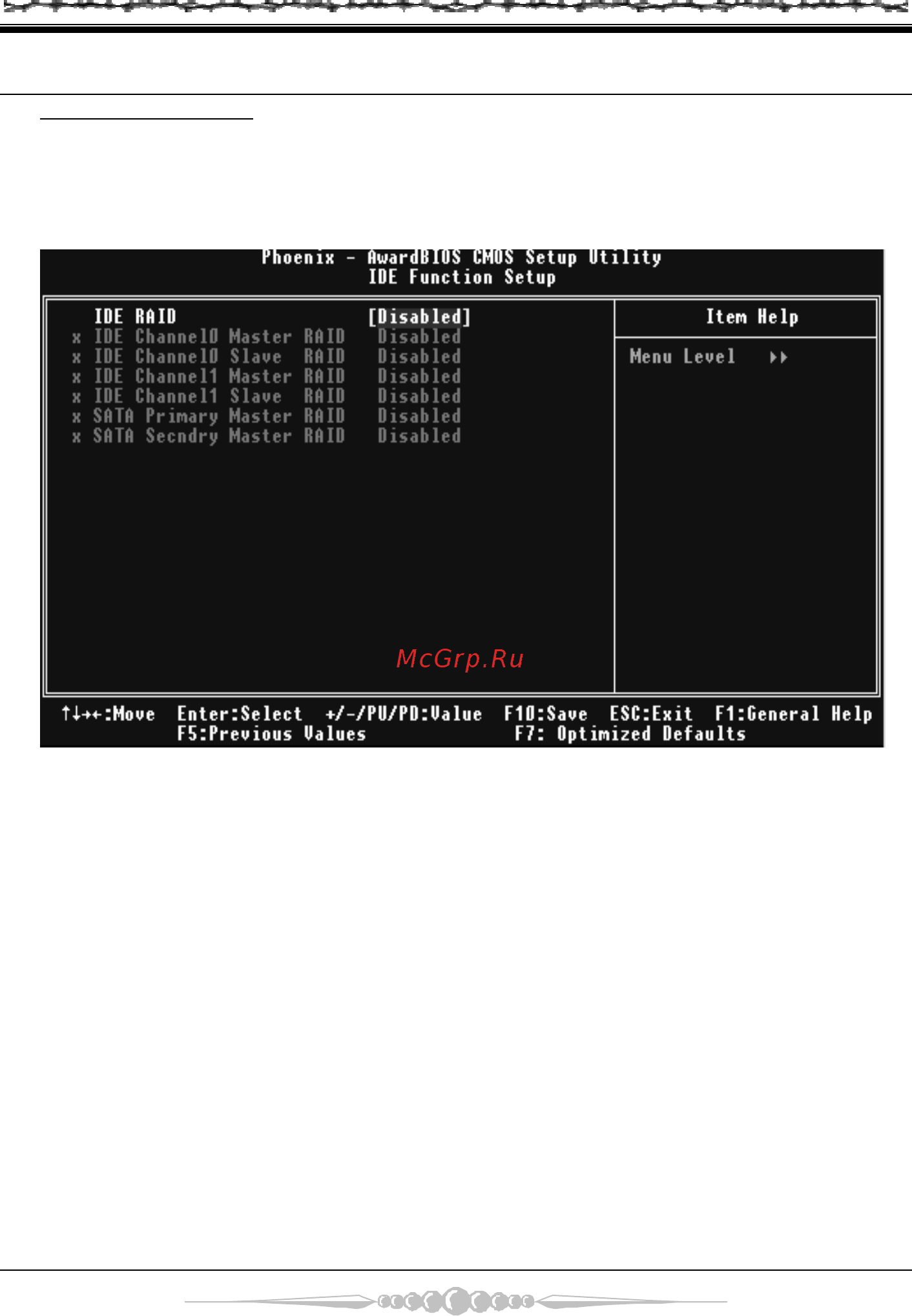

Figure 5.1 IDE Function Setup

IDE Channel 0/1 Master/Slave RAID

The Choices: Disabled (default), Enabled.

SATA Primary/secondary RAID

The Choices: Disabled (default), Enabled.
