Biostar A68I-350 DELUXE Версия 6.x [23/45] Bioscreen utility optional

A68I-C60/A68I-350 DELUXE/A68I-350 DELUXE R2.0

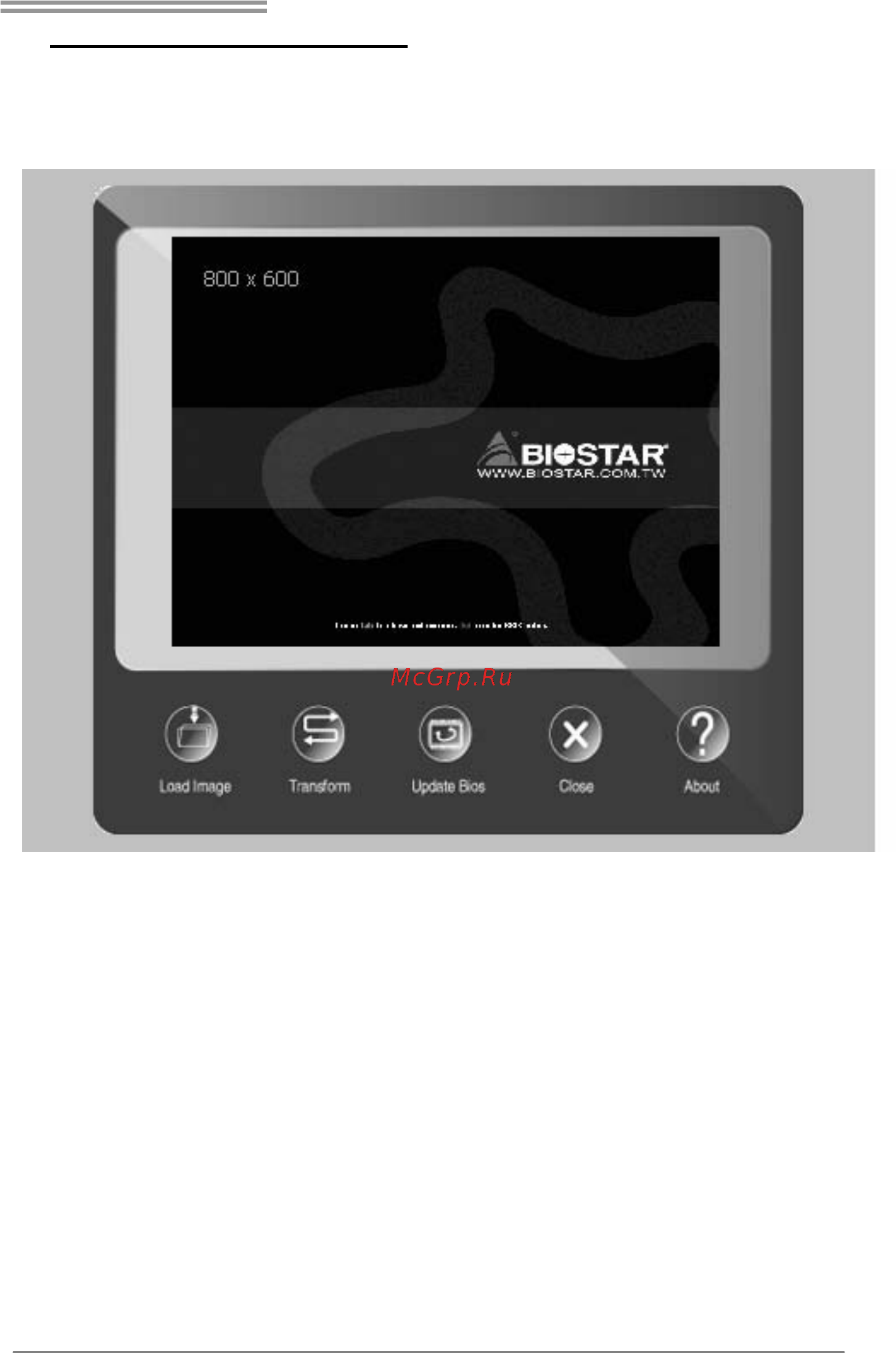

BIOScreen Utility (Optional)

This utility allows you to personalize your boot logo easily. You can choose

BMP as your boot logo so as to customize your computer.

Please follow the following instructions to update boot logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.
