Biostar A68N-5600 Версия 6.4 [36/56] 5 主板布局图

6 | 第一章: 主板介绍

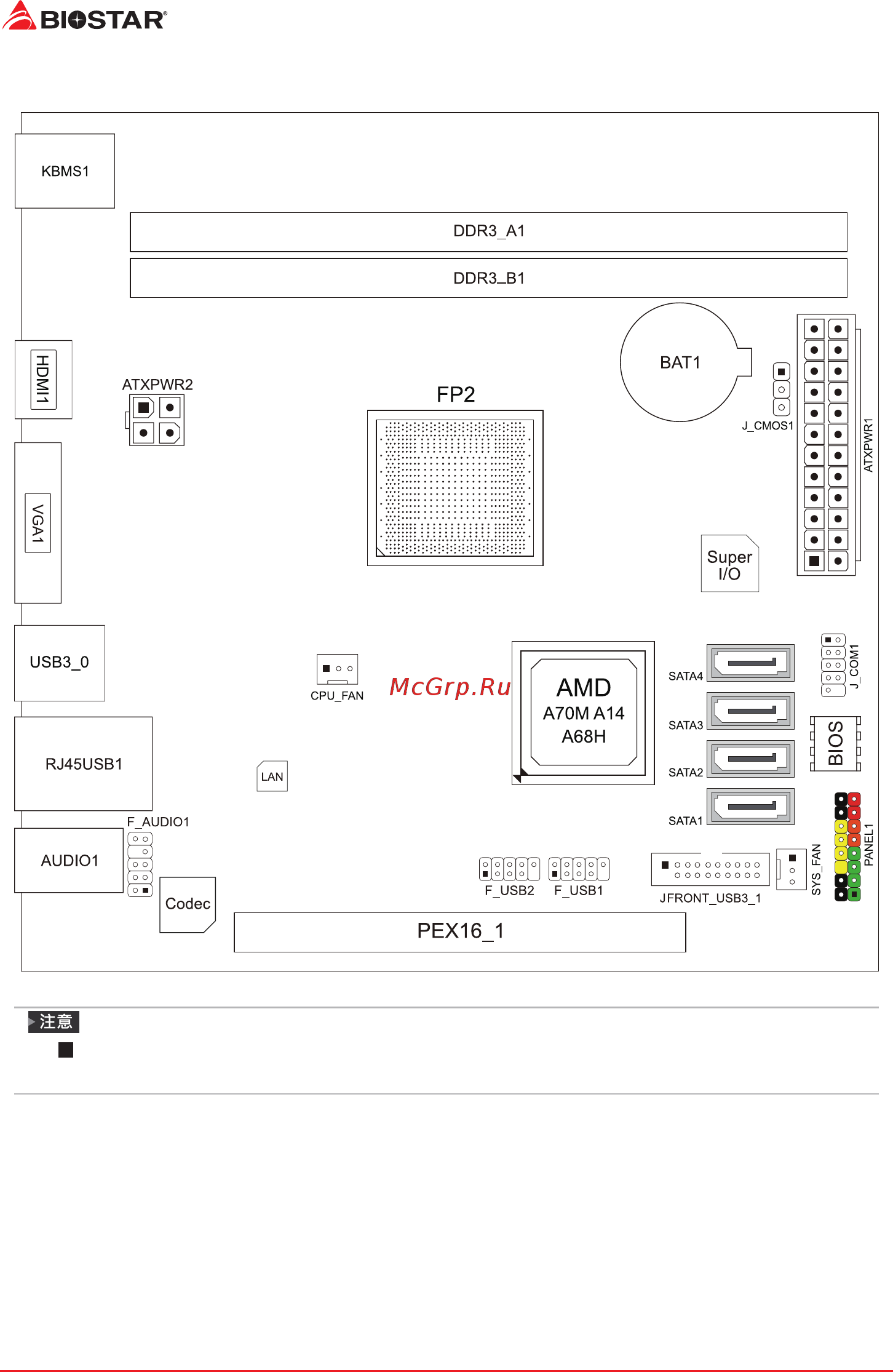

1�5 主板布局图

标示为针脚1

前置面板USB 3.0接头仅A68N-5745 / A68N-5545支持
