2�3 扩展槽

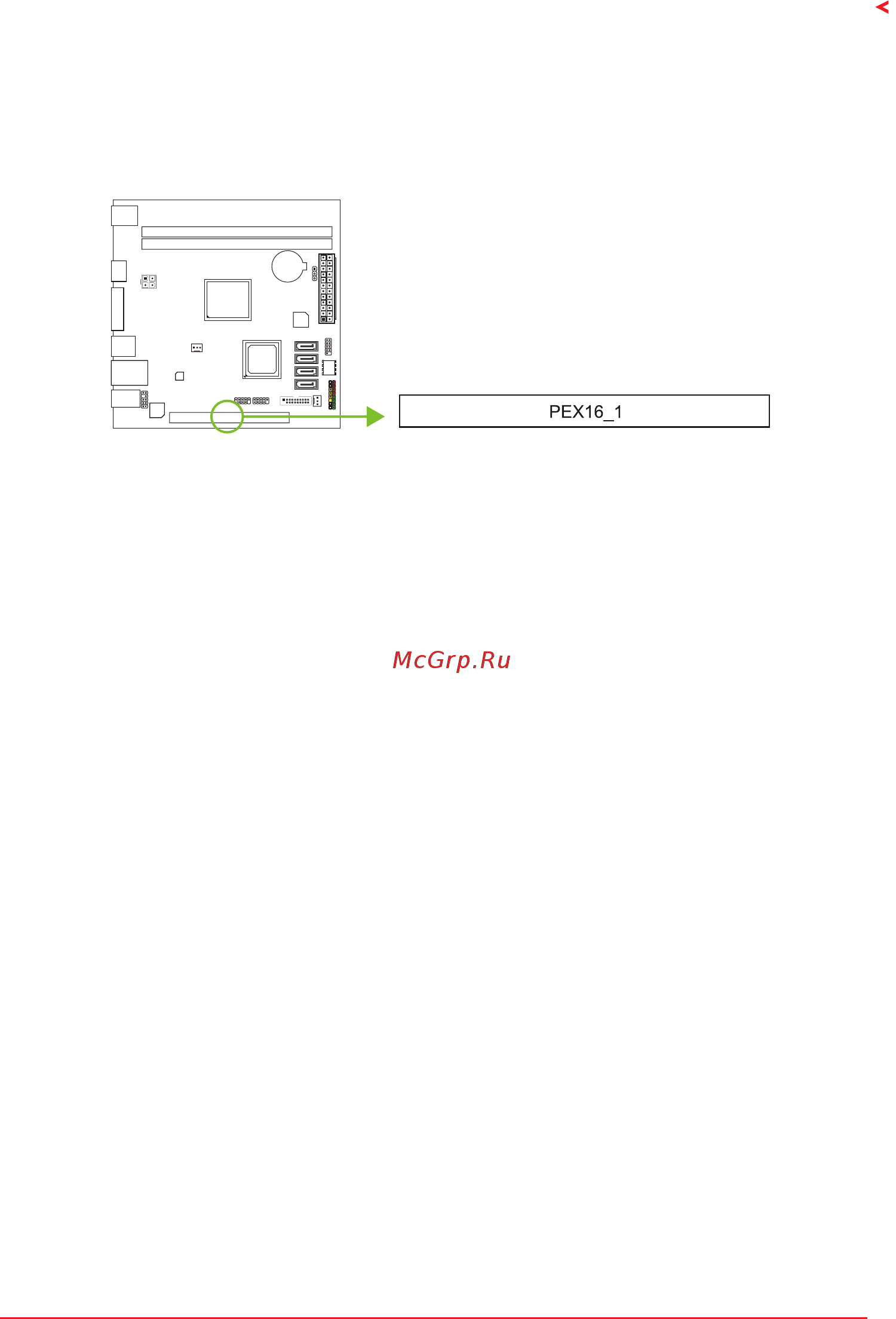

PEX16_1: PCI-Express Gen2 x16 插槽

• 符合PCI-Express 2.0规范。

• 同步单向最大理论带宽为8GB/s，总带宽为16GB/s。

安装扩展卡

请参照以下步骤安装扩展卡：

• 安装扩展卡前请阅读扩展卡的相关指示说明。

• 打开电脑机箱后盖，移除螺丝和插槽支架。

• 将扩展卡按照正确的方向插入插槽，直到扩展卡完全就位。

• 用螺丝将扩展卡的金属支架固定到机箱后置面板。

• 还原电脑机箱后盖。

• 开机。如有必要，可为扩展卡更改BIOS设置。

• 安装扩展卡的驱动。
