Biostar A68N-5600 Версия 6.4 [37/56] 第二章硬件安装

第二章: 硬件安装 | 7

A68N-5745 / A68N-5545 / A68N-5600

第二章: 硬件安装

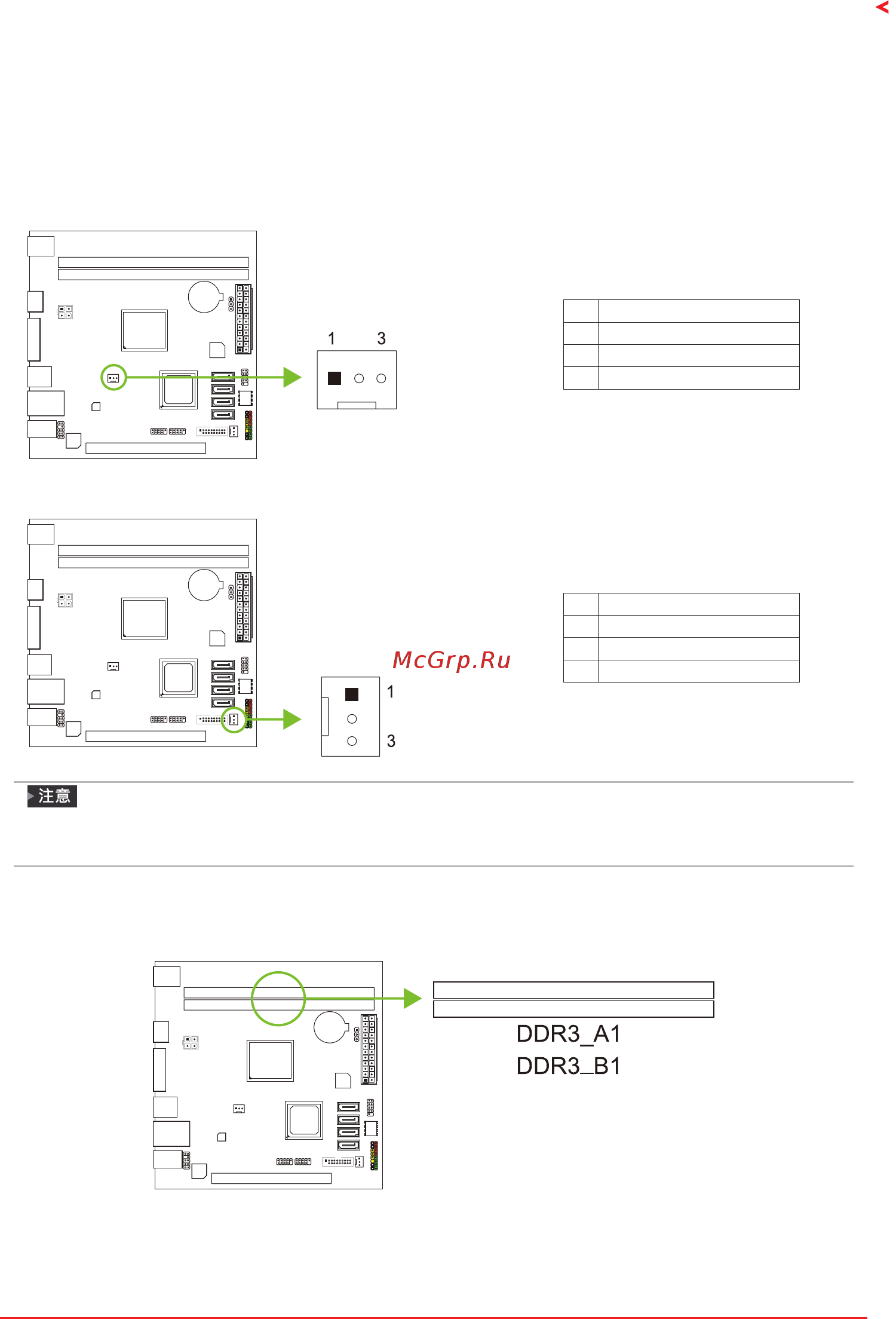

2�1 风扇接头

此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。

CPU_FAN: CPU 风扇接头 (智能CPU 风扇转速控制)

针定义

1 接地

2 +12V

3 FAN RPM rate sense

SYS_FAN: 系统风扇接头

针定义

1 接地

2 +12V

3 FAN RPM rate sense

CPU_FAN、SYS_FAN支持3针脚接口；接线时请注意红线是正极需接到第二个针脚，黑线接地需

接到GND针脚。

2�2 系统内存

DDR3内存模组
