Biostar A68N-5600 Версия 6.4 [50/56] 第三章 uefi bios和软件

20 | 第三章: UEFI BIOS和软件

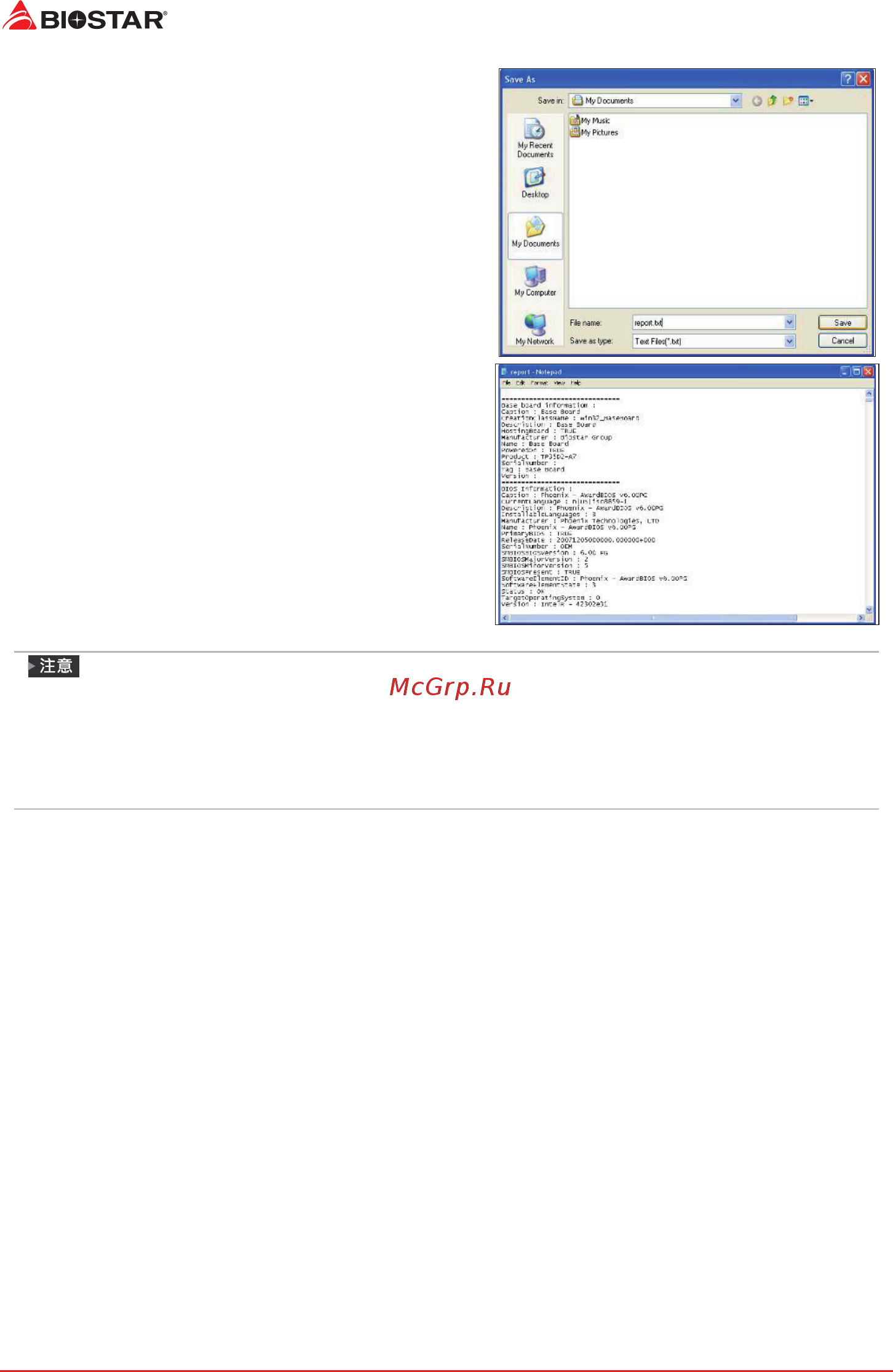

输入文件名，点击“Save”，系统信息将被保

存至文本文件里。

打开已保存的文本文件，显示相关系统信息（包

括主板/BIOS/CPU/视频设备/OS）。这些信息

当然也在已发送的邮件里。

在使用此工具前，请将Outlook Express设置为您的默认电子邮件连接程序。

我们将为用户资料保密，所以使用eHot-Line服务时，请放心提供您的系统信息。

若您未将Outlook Express设置为默认电子邮件连接程序，也可保存您的系统信息到文件里，然

后用其它电子邮件工具发送此文件到我们的技术支持。

请访问网站http://www.biostar.com.tw/app/en/about/contact.php获取我们的联系信息。
