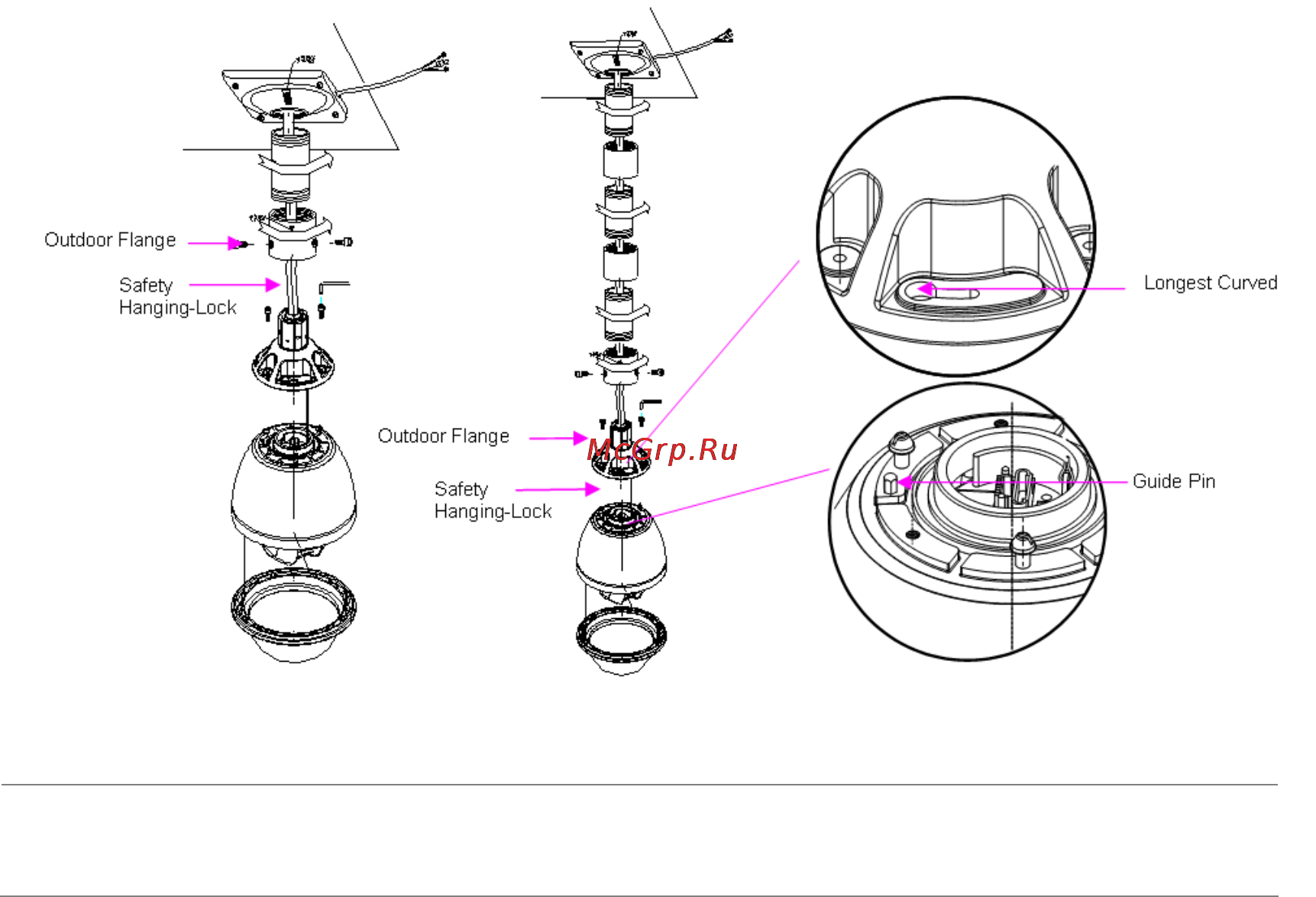

2.3.2 Ceiling Mount
1. Disassemble the Outdoor Flange and dome housing with wrench. Mount the dome housing as
following.
2. Fix the ceiling bracket and connect it with outdoor flange with screws and wrench. Tighten the
screws as following.
3. Connect all the cables as required.
4. Mount the Safety Hanging- Lock of the outdoor flange on the outdoor speed dome. Aim the
guide pin of mounting base at the longest curved chute of outdoor flange. Fix the speed dome
on the outdoor flange. Tighten the screw as following.
NOTE: Due to the camera is heavy, please take care safety for installer and camera when
camera mounting.
