2.4 Initial Utility Installation
This chapter shows how to quick set up your H.264 camera. The camera is with the default
settings. However to help you find the networked camera quickly the windows utility PLANET
IPWizard II can search the cameras in the network that shall help you to configure some basic
setting before you started advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once
completed, a welcome menu screen will appear.

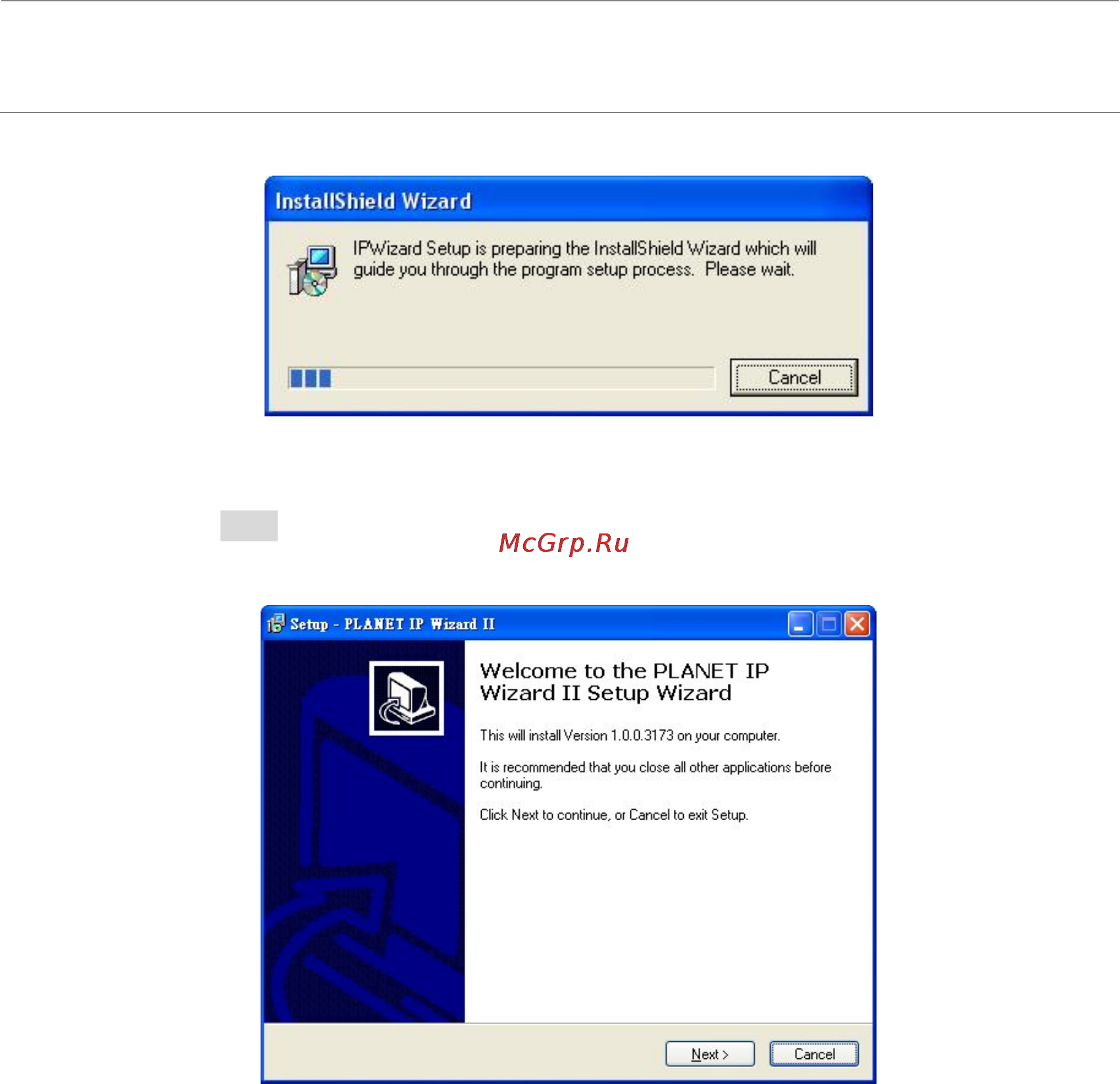

2. Click the “IPWizard II” hyperlink; you will see the dialog box as below.
NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select
“Run” and type “D:\Utility\IPWizard II\setup.exe”, assume D is your CD-ROM drive.
3. The “Welcome to the InstallShield Wizard for PLANET IPWizard II” prompt will display on the
screen and click “Next” to continue.
12
