Planet ICA-H651 [49/92] Preset setting

OSD Down Control commands for Down function.

OSD Left Control commands for Left function.

OSD Right Control commands for Right function.

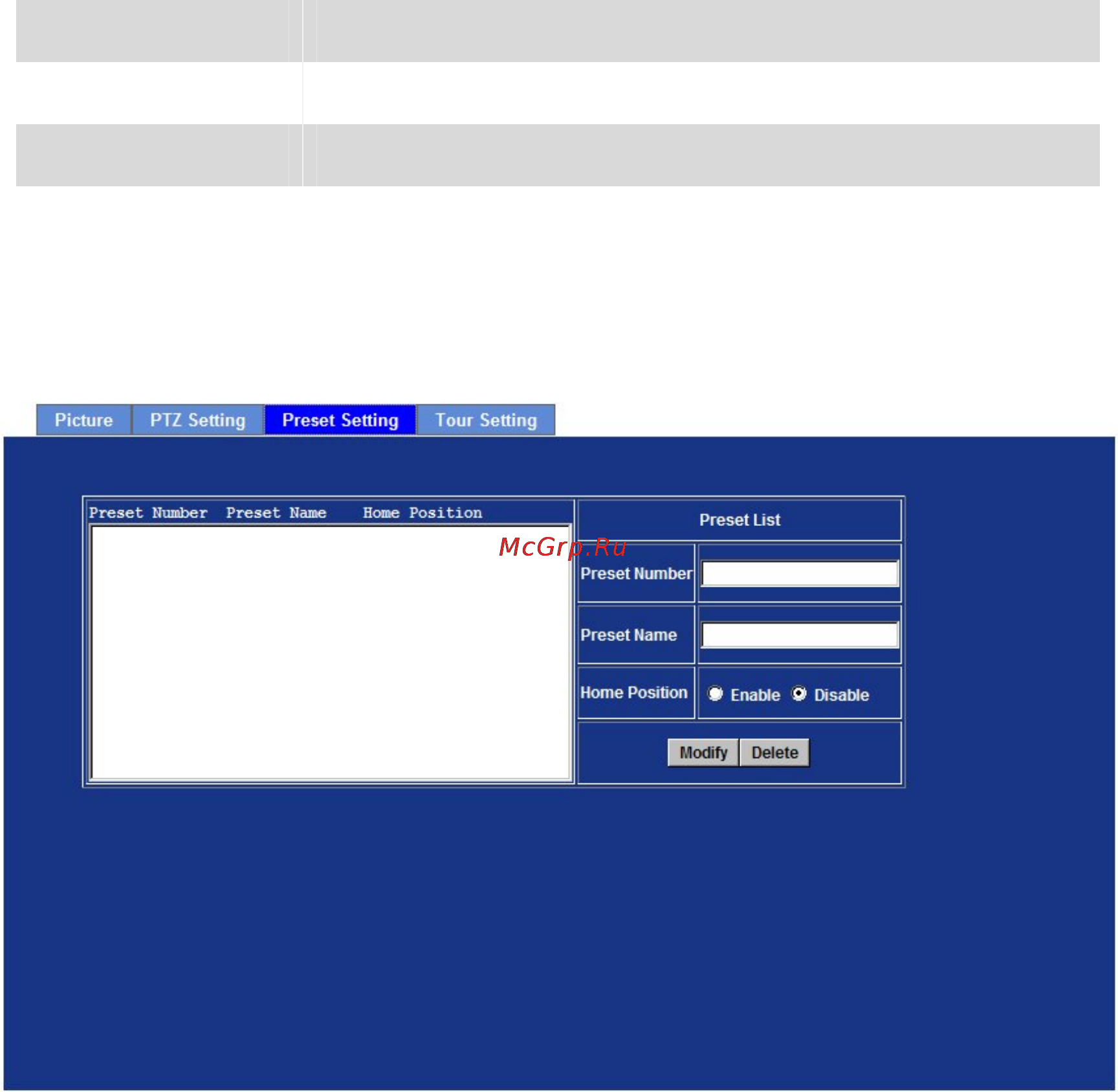

3.6.3 Preset Setting

This page provides the edit tool to modify or delete the “Preset Setting” item by item.
