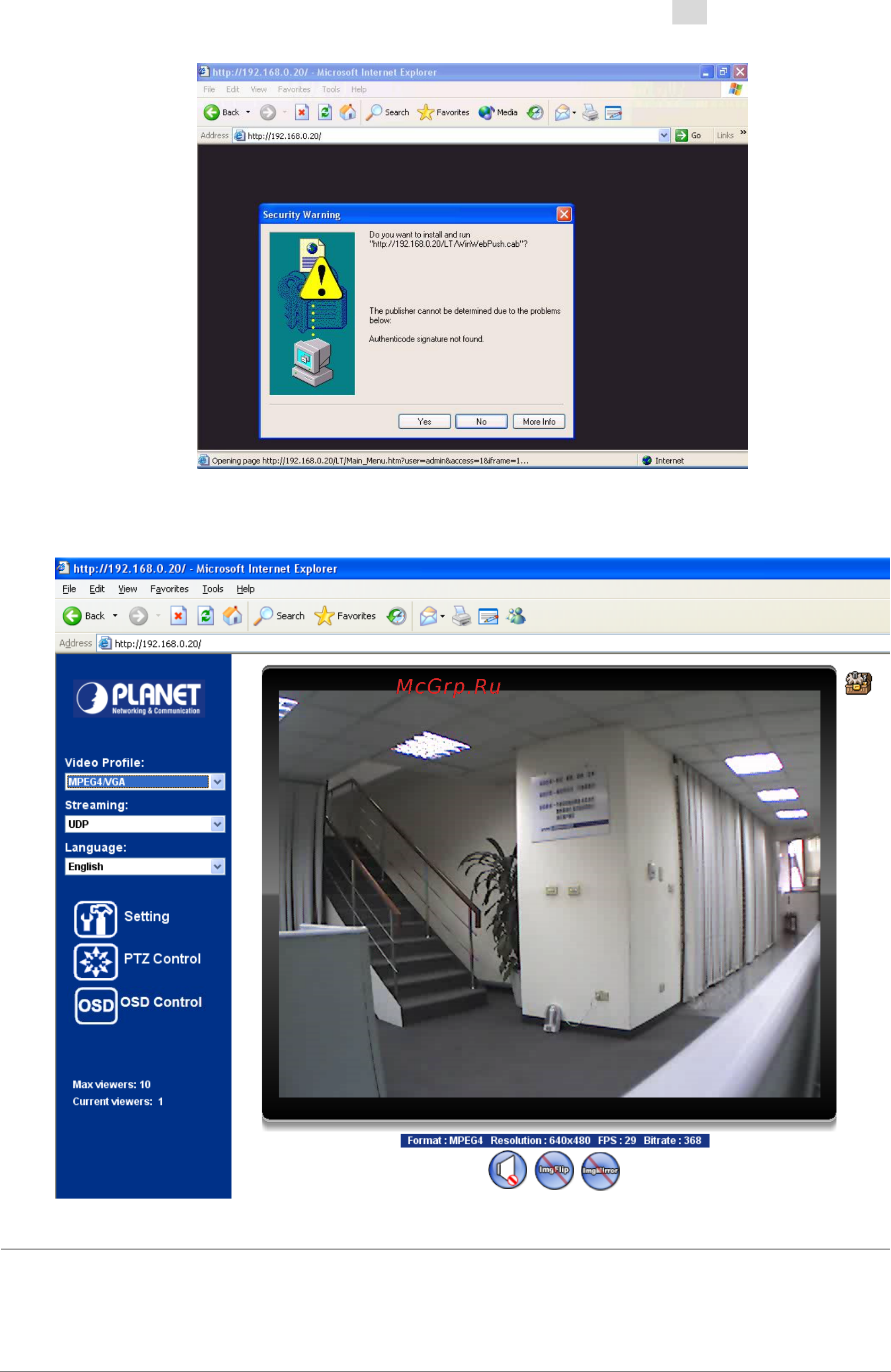

Web browser may display the “Security Warming” window, select “Yes” to install and run the

ActiveX control into your PC.

After the ActiveX control was installed and run, the first image will be displayed.

NOTE: If you log in the camera as an ordinary user, setting function will be not available. If

you log in the camera as the administrator, you can perform all the settings

provided within the device.
