Ariston FH 899 C [15/72] Electrical connection

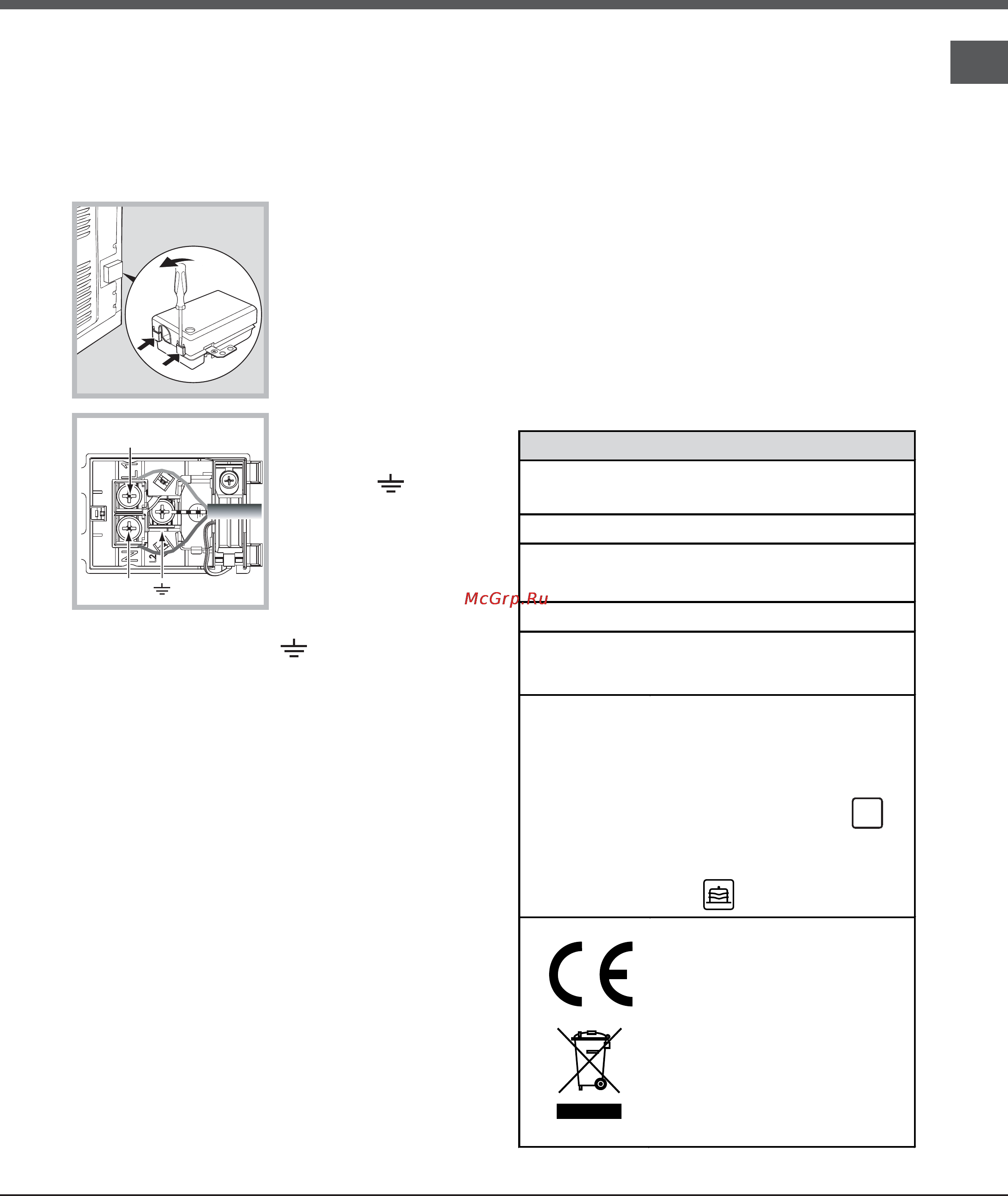

![Ariston FH 899 C [15/72] Electrical connection](/views2/1071365/page15/bgf.png)
15
GB
Electrical connection
!!
!!
! Ovens equipped with a three-pole power supply
cable are designed to operate with alternating
current at the voltage and frequency indicated on
the data plate located on the appliance (
see below
).
Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(
see diagram
).
2. Install the power
supply cable by
loosening the cable
clamp screw and the
three wire contact
screws L-N-
.
Connect the wires to the
corresponding
terminals: the Blue wire
to the terminal marked
(N), the Brown wire to
the terminal marked (L)
and the Yellow/Green
wire to the terminal marked
(
see diagram
).
3. Secure the cable by fastening the clamp screw.
4. Close the cover of the terminal board.
Connecting the electricity supply cable to the mains
Install a standardised plug corresponding to the load
indicated on the data plate (
see table
).
The appliance must be directly connected to the mains
using an omnipolar switch with a minimum contact
opening of 3 mm installed between the appliance and
the mains. The switch must be suitable for the charge
indicated and must comply with current electrical
regulations (the earthing wire must not be interrupted
by the switch). The supply cable must be positioned
so that it does not come into contact with temperatures
higher than 50°C at any point.
!!
!!
! The installer must ensure that the correct electrical
connection has been made and that it is fully
compliant with safety regulations.
Before connecting the appliance to the power
supply, make sure that:
• The appliance is earthed and the plug is compliant
with the law.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data
plate (
see below
).
• The voltage is in the range between the values
indicated on the data plate (
see below
).
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it.
Do not use extension cords or multiple sockets.
!!
!!
! Once the appliance has been installed, the power
supply cable and the electrical socket must be
easily accessible.
!!
!!
! The cable must not be bent or compressed.
!!
!!
! The cable must be checked regularly and replaced
by authorised technicians only (
see Assistance
).
!!
!!
!
The manufacturer declines any liability shouldThe manufacturer declines any liability should
The manufacturer declines any liability shouldThe manufacturer declines any liability should
The manufacturer declines any liability should
these safety measures not be observed.these safety measures not be observed.
these safety measures not be observed.these safety measures not be observed.
these safety measures not be observed.
TABLE OF CHARACTERISTICS
Dimensions
width 43.5 cm
height 32 cm
depth 40 cm
Volume 56 l
Dimensions *
width 43.5 cm
height 32 cm
depth 41.5 cm
Volume * 58 l
Electrical
connections
voltage: 220 - 240 V~ 50/60Hz
maximum power absorbed 2800 W
(see data plate)
ENERGY
LABEL
Directive 2002/40/EC on the label of
electric ovens. Standard EN 50304
Energy consumption for Natural
convection – heating mode:
Traditional mode
Declared energy consumption for
Forced convection Class – heating
mode: Baking
This appliance conforms to the
following European Economic
Community directives: 2006/95/EEC
dated 12/12/06 (Low Voltage) and
subsequent amendments –
2004/108/EEC dated 15/12/04
(Electromagnetic Compatibility) and
subsequent amendments -
93/68/EEC dated 22/07/93 and
subsequent amendments.
2002/96/EC and subsequent
amendments.
1275/2008 stand-by/off mode
* With
g
lass
p
anel fitted to the inside of the door
N
L
