Chapter 2
Preparations & Installation
Physical Installation Requirement
This chapter illustrates basic installation of VIP-281GS series
• Network cables. Use standard 10/100Base-TX network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem (for
WAN port usage)
Administration Interface
PLANET VIP-281GS provides GUI (Web based, Graphical User Interface) for machine management
and administration.
Web configuration access
:
To start VIP-281GS web configuration, you must have one of these web browsers installed on
computer for management
•
Microsoft Internet Explorer 6.0 or higher with Java support
Default WAN interface IP address of VIP-281GS is 172.16.0.1. You may now open your web browser,
and insert http://172.16.0.1 in the address bar of your web browser to logon VIP-281GS web
configuration page.
VIP-281GS will prompt for logon username/password, please enter: admin / 123 to continue machine
administration.

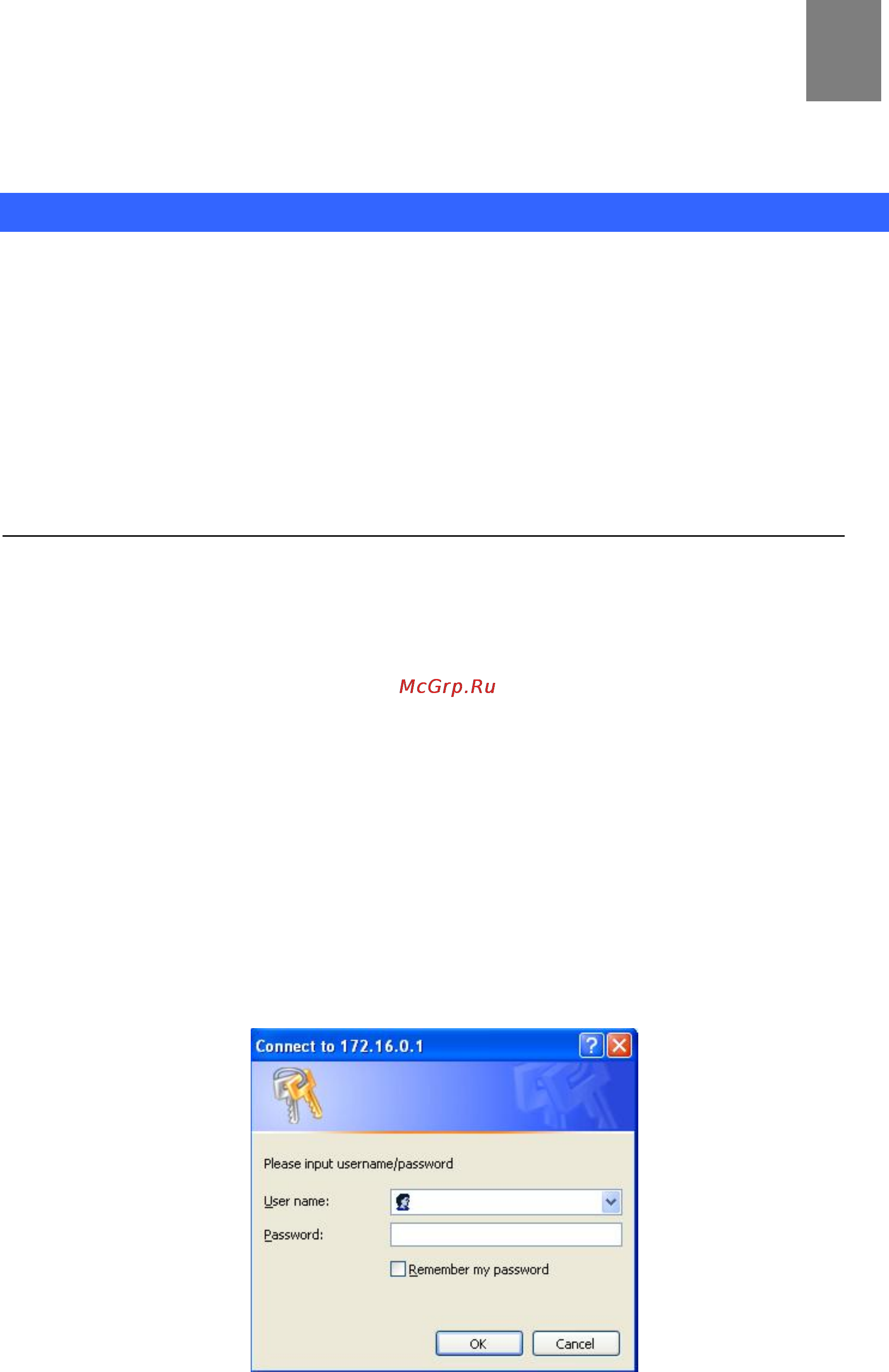

Figure 2-1. Login prompt of VIP-281GS
